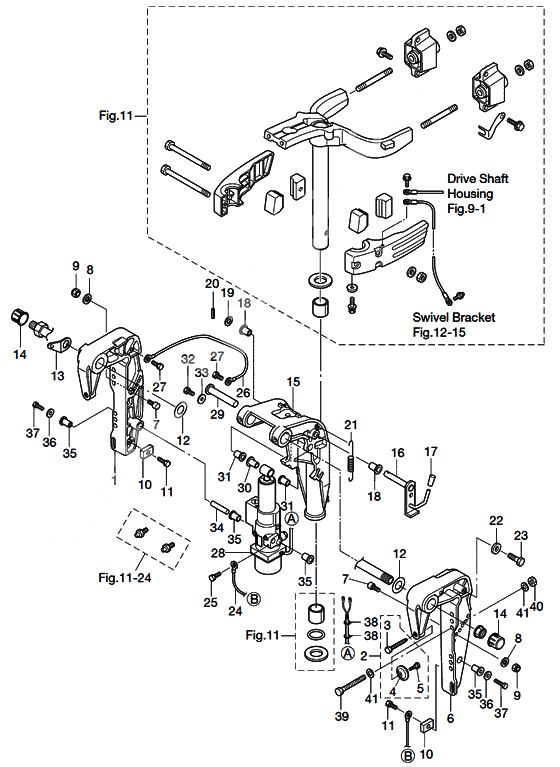

Bracket (ptt) для Tohatsu MFS20C - 2011 года выпуска
-
№АртикулНазвание
-
13Z0Q77211-2 Clamp bracket (ptt right) starboard
STARBOARD SIDEClamp bracket (ptt right) starboard
STARBOARD SIDE -
23C8-77217-0 Clamp screw kitClamp screw kit
-
33C8-77216-0 Clamp screw (ptt)Clamp screw (ptt)
-
4332-62101-1 Pad clamp screw (threaded style)Pad clamp screw (threaded style)
-
53C8-62107-0 Shoulder boltShoulder bolt
-
63Z0Q77212-0 Clamp bracket (ptt left) port
PORT SIDEClamp bracket (ptt left) port
PORT SIDE -
73Z0-77115-0 Trim lock pinTrim lock pin
-
83P0-66233-0 New partNew part
-
93V5-62442-0 Nylon Nut(2T)M8 P1.25Nylon Nut(2T)M8 P1.25
-
103H6-60218-0 AnodeAnode
-
11910103-5616 BoltBolt
-
123AA-62116-0 Washer
NYLONWasher
NYLON -
133AA-62114-1 PlatePlate
-
3AA-62114-0 PlatePlate
-
14346-62127-0 Cap,Bracket BoltCap,Bracket Bolt
-
153BAQ77208-0 Swivel bracket (ptt)Swivel bracket (ptt)
-
163Z0-62476-1 Tilt StopperTilt Stopper
-
17369-62433-1 Grip Tilt StopperGrip Tilt Stopper
-
18353-63207-0 Collar 10.2-12-12Collar 10.2-12-12
-
199401E3-1000 WasherWasher
-
20951403-3516 New partNew part
-
213R0-62473-0 Spring,Tilt StopperSpring,Tilt Stopper
-
22345-05122-1 Washer rachetWasher rachet
-
239101E3-0616 BoltBolt
-
910103-0616 BoltBolt
-
24398-62396-1 Ground WireGround Wire
-
25910103-5612 BoltBolt
-
26398-62396-1 Ground WireGround Wire
-
27910103-5612 BoltBolt
-
283BAQ77151-1 Power tilt assy
SEE FIG 13Power tilt assy
SEE FIG 13 -
293R0-77071-1 Cylinder pin upperCylinder pin upper
-
3KY-77071-0 Cylinder pin upperCylinder pin upper
-
303Z0-77076-0 Bushing 13-16-31Bushing 13-16-31
-
313R0-77076-0 BushingBushing
-
329101E3-0612 BoltBolt
-
910103-0612 BoltBolt
-
33345-05122-1 Washer rachetWasher rachet
-
343Z0-77101-1 Cylinder pin (lower)Cylinder pin (lower)
-
353Z0-77076-0 Bushing 13-16-31Bushing 13-16-31
-
36307-62116-1 WasherWasher
-
379101E3-0820 BoltBolt
-
910103-0820 BoltBolt
-
383Z0-84398-0 Band lead wire 203-local purchaseBand lead wire 203-local purchase
-
399101E3-0885 BoltBolt
-
9161E3-0885 BoltBolt
-
409301E3-0800 NutNut
-
930103-0800 NutNut
-
419401E3-0800 WasherWasher
-
940103-0800 WasherWasher
