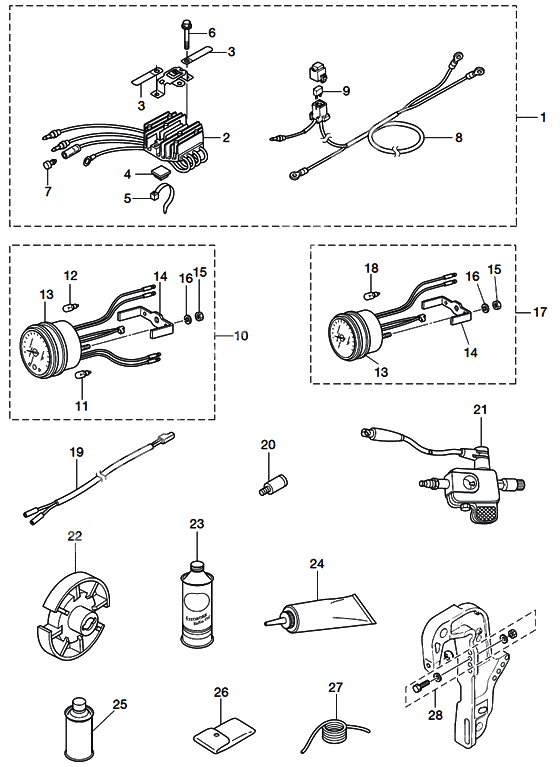

Optional parts (accessories) (2) для Tohatsu MFS15C - 2011 года выпуска`
-
№АртикулНазвание
-
13BJ-76160-1 Rectifier kit (f15c/f20c)Rectifier kit (f15c/f20c)
-
3BJ-76160-2 Rectifier kit (f15c/f20c)Rectifier kit (f15c/f20c)
-
23BJ-76060-1 RectifierRectifier
-
3309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
43BJ-76164-0 Band mountBand mount
-
53Z0-84398-0 Band lead wire 203-local purchaseBand lead wire 203-local purchase
-
6910103-5625 BoltBolt
-
73A3-76037-0 Plug B Cable TerminalPlug B Cable Terminal
-
83BJ-76161-0 Extension cord (l=3000mm)Extension cord (l=3000mm)
-
93T5-76249-0 ПредохранительПредохранитель
-
103N8-72640-1 Tachometer Ass'y
SELECTOR 12P FOR EP/EPTTachometer Ass'y
SELECTOR 12P FOR EP/EPT -
113B7-72658-0 Bulb, Meter 12V-1.7WBulb, Meter 12V-1.7W
-
123B7-72659-0 Bulb, Meter 12V-1.7WBulb, Meter 12V-1.7W
-
133B7-72656-0 Damper, MeterDamper, Meter
-
143B7-72661-0 Plate, FittingPlate, Fitting
-
15930103-0500 NutNut
-
16941303-0500 Spring WasherSpring Washer
-
173B7-72530-2 Tachometer Ass'y
SELECTOR 12P FOR MF/EF/EFTTachometer Ass'y
SELECTOR 12P FOR MF/EF/EFT -
183B7-72659-0 Bulb, Meter 12V-1.7W
FOR MF/EF/EFTBulb, Meter 12V-1.7W
FOR MF/EF/EFT -
19361-72539-0 Lead Wire Tachometer
FOR MF/EF/EFTLead Wire Tachometer
FOR MF/EF/EFT -
20336-60007-0 New partNew part
-
213F3-72540-0 Ignition CheckerIgnition Checker
-
22362-64110-0 Test PropellerTest Propeller
-
362-64110-1 Test PropellerTest Propeller
-
23332-82308-0 Tohatsu 4-cycle fc-w oil (12-quarts) - shipping weight 24 lbs.
QUARTS - 12 PER CASETohatsu 4-cycle fc-w oil (12-quarts) - shipping weight 24 lbs.
QUARTS - 12 PER CASE -
23332-82305-0 Tohatsu 4-cycle fc-w oil (6-gallons) - shipping weight 46 lbs.
GALLONS - 6 PER CASETohatsu 4-cycle fc-w oil (6-gallons) - shipping weight 46 lbs.
GALLONS - 6 PER CASE -
23332-82307-0 Nissan 4-cycle fc-w oil (12-quarts) - shipping weight 24 lbs.
QUARTS - 12 PER CASENissan 4-cycle fc-w oil (12-quarts) - shipping weight 24 lbs.
QUARTS - 12 PER CASE -
23332-82302-0 Nissan 4-cycle fc-w oil (6-gallons) - shipping weight 46 lbs.
GALLONS - 6 PER CASENissan 4-cycle fc-w oil (6-gallons) - shipping weight 46 lbs.
GALLONS - 6 PER CASE -
24332-82310-0 Tohatsu gear lube (12-quarts)
QUARTS - 12 PER CASETohatsu gear lube (12-quarts)
QUARTS - 12 PER CASE -
24332-82312-0 Tohatsu gear lube (5 gal pail)
5 GALLON PAILTohatsu gear lube (5 gal pail)
5 GALLON PAIL -
24332-82314-0 Tohatsu gear lube (16 gal drum)
16 GALLON DRUMTohatsu gear lube (16 gal drum)
16 GALLON DRUM -
24332-82309-0 Nissan gear lube (12-quarts)
QUARTS - 12 PER CASENissan gear lube (12-quarts)
QUARTS - 12 PER CASE -
253AC-72326-0 Paint (aqua marine blue) 12 oz spray canPaint (aqua marine blue) 12 oz spray can
-
263BJ-72100-0 Tool set (f15c/f20c)Tool set (f15c/f20c)
-
273B7-72201-0 КанатКанат
-
283BJ-72120-0 Rigging bolt setRigging bolt set
