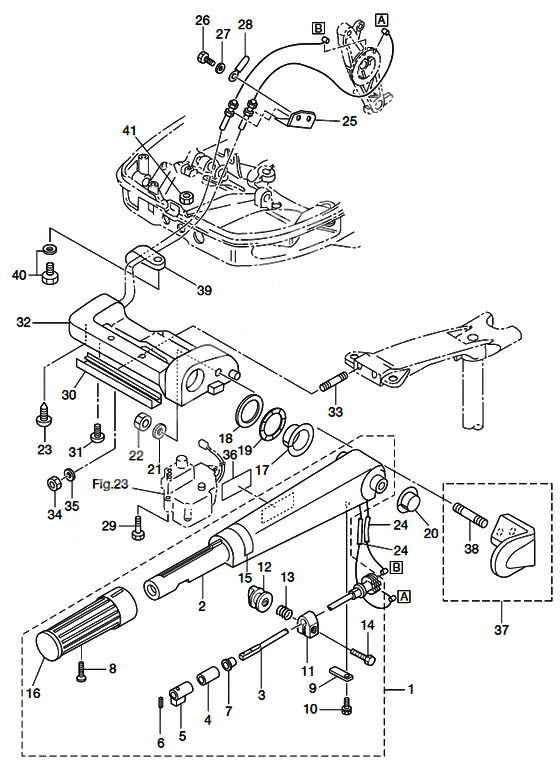

Tiller handle (f model) для Tohatsu MD50B2 - 2011 года выпуска`
-
№АртикулНазвание
-
13T5Q63003-1 Tiller handle assy d40/50b
STEERING HANDLE ASSYTiller handle assy d40/50b
STEERING HANDLE ASSY -
3T5Q63003-0 Tiller handle assy d40/50bTiller handle assy d40/50b
-
23C8Q63011-2 Steering handle (amb)Steering handle (amb)
-
33C8-63041-1 Throttle ShaftThrottle Shaft
-
4345-63048-0 Rubber Throttle Shaft ARubber Throttle Shaft A
-
5398-63053-0 Spacer Throttle ShaftSpacer Throttle Shaft
-
6951403-0310 New partNew part
-
7350-63046-0 BushingBushing
-
8921803-0525 Stud BoltStud Bolt
-
93C8-63063-0 Supporter Throttle ShaftSupporter Throttle Shaft
-
109101E3-5612 Bolt & washerBolt & washer
-
113V1-63035-1 Friction PieceFriction Piece
-
123V1-63077-0 Adjusting NutAdjusting Nut
-
133V1-63036-0 Spring WasherSpring Washer
-
149101E3-0625 BoltBolt
-
910103-0625 BoltBolt
-
153T5-72019-0 Label, ShrottleLabel, Shrottle
-
16398-63012-0 GripGrip
-
173C8-63101-0 Bushing A, Steering-handleBushing A, Steering-handle
-
183B2-63108-0 WasherWasher
-
193B2-63109-0 WasherWasher
-
203C8-63102-1 Bushing B Steering HandleBushing B Steering Handle
-
219401E3-1000 WasherWasher
-
22930103-1000 NutNut
-
233C8-63607-0 Clip Throttle WireClip Throttle Wire
-
243C8-63600-1 Throttle WireThrottle Wire
-
253C8-63508-1 BracketBracket
-
26910103-0614 BoltBolt
-
27940103-0600 WasherWasher
-
28309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
29910103-6625 BoltBolt
-
303T5-62004-0 Holder,CodeHolder,Code
-
31921903-0625 Stud BoltStud Bolt
-
323C8Q62001-2 Steering bracket (amb)Steering bracket (amb)
-
339152E3-0845 StudStud
-
34930403-0800 Nylon NutNylon Nut
-
359401E3-0800 WasherWasher
-
940103-0800 WasherWasher
-
363T5-84335-0 Lavel, Main SwitchLavel, Main Switch
-
373C8Q63027-0 Holder assy steering handle (amb)Holder assy steering handle (amb)
-
3E5Q63028-1 Holder assy steering handle (amb)Holder assy steering handle (amb)
-
389153E3-1022 Stud BoltStud Bolt
-
915303-1022 Stud BoltStud Bolt
-
39345-06915-0 Clamp 6.5-14Clamp 6.5-14
-
40910103-5612 BoltBolt
-
41930103-0600 NutNut
