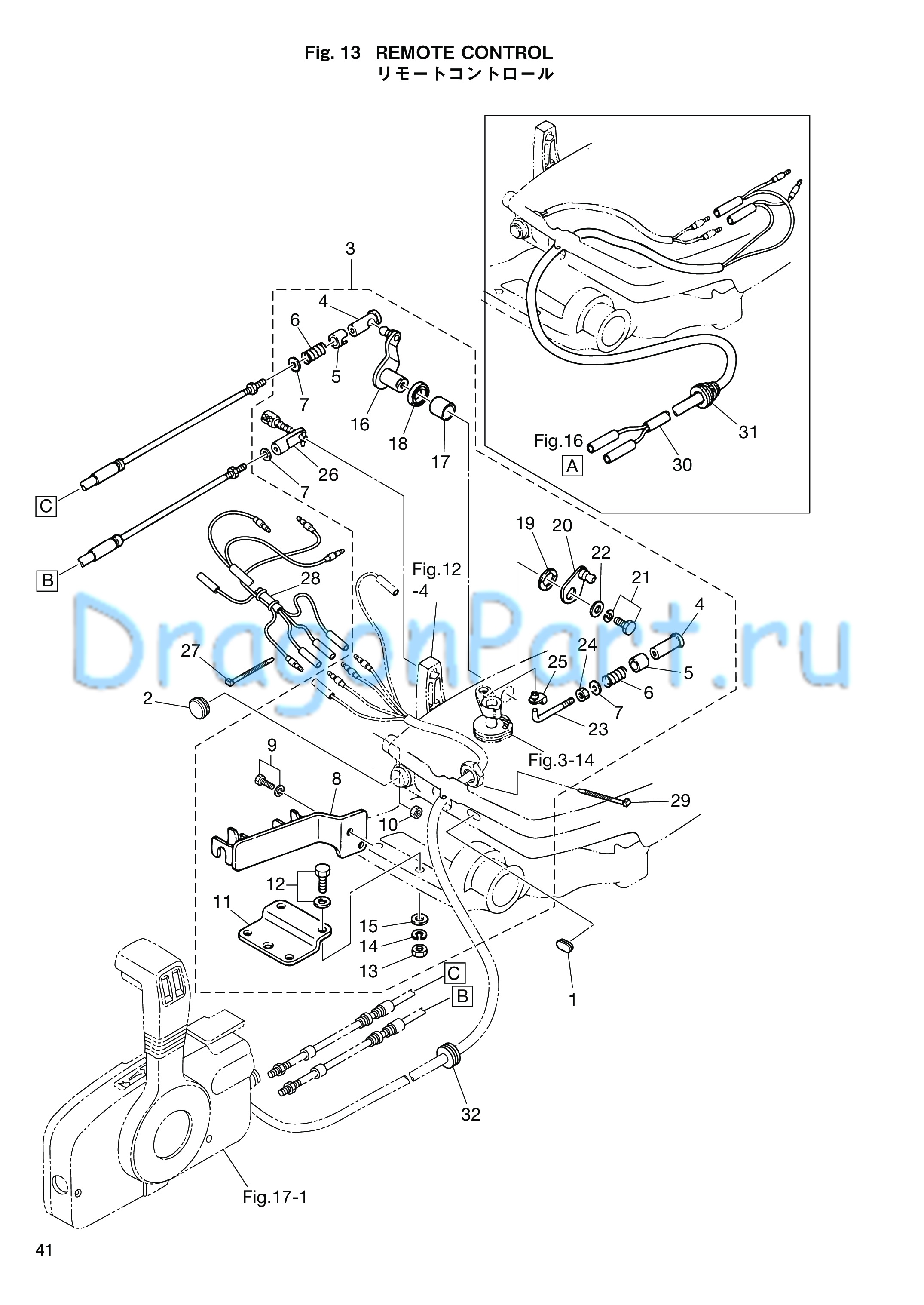

REMOTE CONTROL для Tohatsu M8B - 2011 года выпуска`
-
№АртикулНазвание
-
13B2-63624-0 GrommetGrommet
-
2345-67117-0 Grommet 17-2.7Grommet 17-2.7
-
33B2-83880-3 Remote Control Fitting Ass'yRemote Control Fitting Ass'y
-
43A1-83722-0 * Ball Joint Holder* Ball Joint Holder
-
5332-83723-0 * Holder Cap* Holder Cap
-
6332-83724-0 * Spring* Spring
-
7332-83725-0 * Washer 5.5-14-1.2* Washer 5.5-14-1.2
-
83B2-83820-0 * Cable Clip Ass'y* Cable Clip Ass'y
-
9910103-6616 * Bolt* Bolt
-
10930103-0600 * Nut* Nut
-
11369-83830-2 * Steering Hook Plate* Steering Hook Plate
-
12910103-5830 * Bolt* Bolt
-
13930103-0800 * Nut* Nut
-
14941303-0800 * Spring Washer* Spring Washer
-
15940103-0800 * Washer* Washer
-
16369-83726-0 * Throttle Lever* Throttle Lever
-
17369-67105-0 * Hook Lever Bushing* Hook Lever Bushing
-
18338-67147-0 * Seal Ring* Seal Ring
-
19941403-1400 * Wave Washer d=14* Wave Washer d=14
-
203B2-83887-1 * Throttle Lever* Throttle Lever
-
21910103-6612 * Bolt* Bolt
-
223C8-66308-0 * Washer 6-16-1.5* Washer 6-16-1.5
-
233B2-83863-1 * Throttle Lever Rod* Throttle Lever Rod
-
243B2-83865-0 * Nut 10-32UNF* Nut 10-32UNF
-
25345-05224-0 * Rod Snap 5-2.5* Rod Snap 5-2.5
-
263A1-83710-1 * Cable Joint Ass'y* Cable Joint Ass'y
-
27353-84398-0 Band 100Band 100
-
283B2-76166-0 Assist Cord CompleteAssist Cord Complete
-
29353-84398-0 Band 100Band 100
-
30361-83853-0 Remote Control Stop Cord L=3900Remote Control Stop Cord L=3900
-
30361-83858-0 Remote Control Stop Cord L=5900Remote Control Stop Cord L=5900
-
31345-66226-0 Grommet 17-3Grommet 17-3
-
32345-67193-0 Grommet 16-2.5Grommet 16-2.5
Все узлы модели:
- ASSEMBLY KIT PARTS
- BOTTOM COWL
- BRACKET REVERSE LOCK
- CARBURETOR FUEL PUMP
- COMPONENT PARTS OF REMOTE CONTROL BOX
- COMPONENT PARTS OF REMOTE CONTROL BOX (ELECTRIC PARTS)
- CYLINDER CRANK CASE
- DRIVE SHAFT HOUSING
- FUEL TANK
- GEAR CASE
- INTAKE MAINFOLD REED VALVE THROTTLE
- MAGNETO ELECTRIC PARTS
- OPTIONAL PARTS ACCESSORIES
- PISTON CRANKSHAFT
- RECOIL STARTER STARTER LOCK
- • REMOTE CONTROL
- SHIFT
- TILLER HANDLE
- TOP COWL
