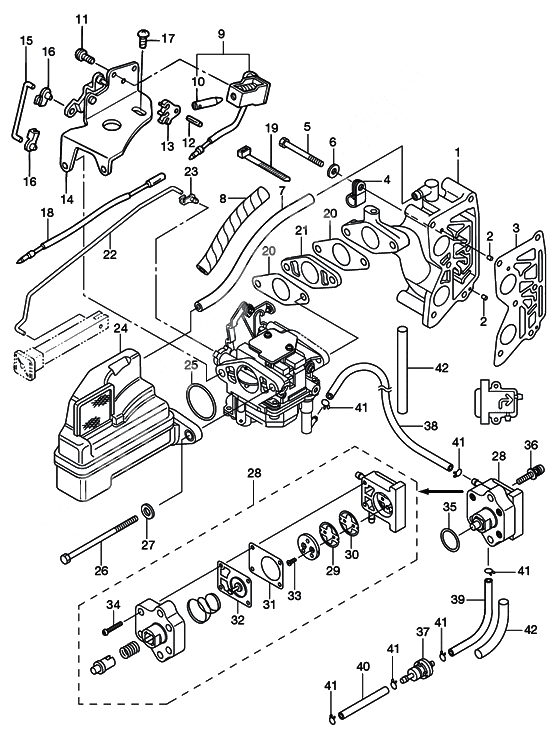

Intake manifold & fuel pump для Tohatsu MFS8A3 - 2010 года выпуска`
-
№АртикулНазвание
-
13V1-02010-1 Всасывающий коллекторВсасывающий коллектор
-
2951403-0310 New partNew part
-
33V1-02104-0 O-RingO-Ring
-
4345-06915-0 Clamp 6.5-14Clamp 6.5-14
-
59161F4-0653 BoltBolt
-
916114-0653 BoltBolt
-
69401E3-0600 WasherWasher
-
940113-0600 WasherWasher
-
798AB-7-0200 Fuel pipe 7mm/5/16in (1 ea.=1 meter)
98AB-701000Fuel pipe 7mm/5/16in (1 ea.=1 meter)
98AB-701000 -
98AB-701000 Fuel pipe 7mm/5/16in (1 ea.=1 meter)Fuel pipe 7mm/5/16in (1 ea.=1 meter)
-
83V1-76148-0 Spiral Tube Protector
FOR EPSpiral Tube Protector
FOR EP -
93V1-76050-0 Choke Solenoid
FOR EP/EPTChoke Solenoid
FOR EP/EPT -
10361-76073-0 Plunger,Choke Solenoid
FOR EP/EPTPlunger,Choke Solenoid
FOR EP/EPT -
11921503-6408 Stud Bolt
CHOKE SOLENOID / FOR EP/EPTStud Bolt
CHOKE SOLENOID / FOR EP/EPT -
12951403-0312 Spring Washer
FOR EP/EPTSpring Washer
FOR EP/EPT -
13346-76057-0 Hook choke solenoid
FOR EP/EPTHook choke solenoid
FOR EP/EPT -
143V1-76078-1 Bracket,Choke Solenoido
FOR EP/EPTBracket,Choke Solenoido
FOR EP/EPT -
153V1-76076-0 Link Rod
FOR EP/EPTLink Rod
FOR EP/EPT -
163V1-67196-0 Rod Snap
FOR EP/EPTRod Snap
FOR EP/EPT -
179215E3-0510 Screw
FOR EP/EPTScrew
FOR EP/EPT -
921503-0510 ScrewScrew
-
183V1-72547-0 Assist Cord(blue)
FOR EPAssist Cord(blue)
FOR EP -
193T5-84398-0 Band Lead Wire 104
FOR EP/EPTBand Lead Wire 104
FOR EP/EPT -
203V1-02011-0 Caburetor GasketCaburetor Gasket
-
213V1-03952-0 Insukator
8/9.8PSInsukator
8/9.8PS -
223Y3-67192-0 Choke Rod
FOR MF & EF/EFTChoke Rod
FOR MF & EF/EFT -
23346-67196-1 Rod Snap 3-b
FOR MF & EF/EFTRod Snap 3-b
FOR MF & EF/EFT -
243V1-02409-0 Air SilencerAir Silencer
-
253V1-02012-0 O-RingO-Ring
-
269161E3-0695 Bolt
CARBURETORBolt
CARBURETOR -
3R0-03215-0 BoltBolt
-
279401E3-0600 WasherWasher
-
940113-0600 WasherWasher
-
283H6-04000-4 Fuel pump 4/5/6/8/9.8 4-str only
MARK DFuel pump 4/5/6/8/9.8 4-str only
MARK D -
3H6-04000-7 Fuel pump 4/5/6/8/9.8 4-str onlyFuel pump 4/5/6/8/9.8 4-str only
-
293H6-04044-0 Check Valve
WHITECheck Valve
WHITE -
303H6-04014-1 Check Valve
BLACKCheck Valve
BLACK -
313H6-04028-0 O-RingO-Ring
-
323H6-04005-0 DiaphragmDiaphragm
-
33921603-0308 Stud BoltStud Bolt
-
34922503-6418 Stud BoltStud Bolt
-
353H6-07422-0 New partNew part
-
369215E3-5625 ScrewScrew
-
921503-5625 ScrewScrew
-
37369-02230-0 Фильтр топливныйФильтр топливный
-
3898AB-5-0260 Fuel pipe 5mm (1 ea.=1 meter)
98AB-501000Fuel pipe 5mm (1 ea.=1 meter)
98AB-501000 -
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
3998AB-5-0150 Fuel pipe 5mm (1 ea.=1 meter)
98AB-501000Fuel pipe 5mm (1 ea.=1 meter)
98AB-501000 -
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
4098AB-5-0330 Fuel pipe 5mm (1 ea.=1 meter)
98AB-501000Fuel pipe 5mm (1 ea.=1 meter)
98AB-501000 -
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
41338-02215-0 ClipClip
-
423V2-06157-0 ProtectorProtector
