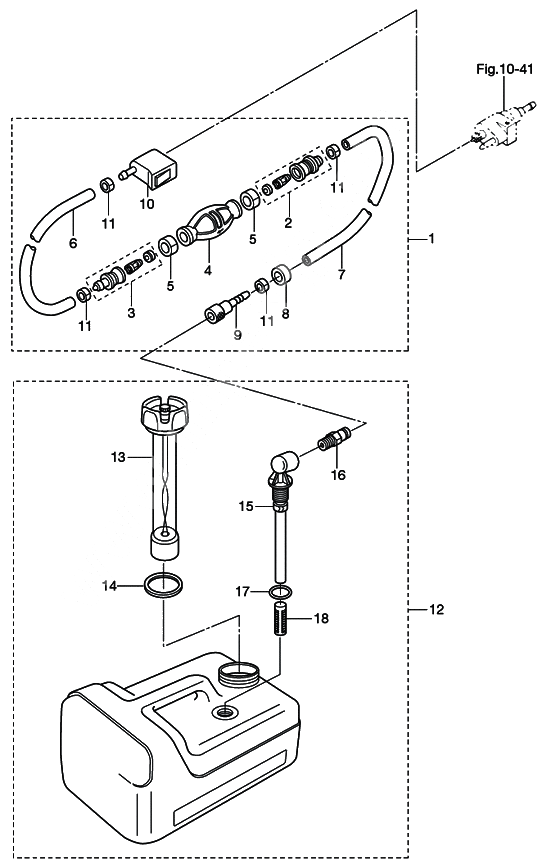

Separate fuel tank для Tohatsu MFS6B - 2010 года выпуска`
-
№АртикулНазвание
-
13H6-70200-1 Primer bulb assy (4-stroke - 4-30hp)
STDPrimer bulb assy (4-stroke - 4-30hp)
STD -
3H6-70200-2 Primer bulb assy (4-stroke - 4-30hp)Primer bulb assy (4-stroke - 4-30hp)
-
13AC-70200-2 Primer bulb assy (low permeation)
LOW PERMEATION PARTS / (FOR USA MODEL)Primer bulb assy (low permeation)
LOW PERMEATION PARTS / (FOR USA MODEL) -
3AD-70200-2 Primer bulb assy (low permeation)Primer bulb assy (low permeation)
-
23C7-70220-1 Joint A Ass'y InJoint A Ass'y In
-
33C7-70224-1 Joint A Ass'y OutJoint A Ass'y Out
-
43C7-70211-1 Primer BulbPrimer Bulb
-
53C7-70217-0 ClampClamp
-
698AB-7-0700 Fuel pipe 7mm/5/16in (1 ea.=1 meter)
STD / 98AB-701000Fuel pipe 7mm/5/16in (1 ea.=1 meter)
STD / 98AB-701000 -
98AB-701000 Fuel pipe 7mm/5/16in (1 ea.=1 meter)Fuel pipe 7mm/5/16in (1 ea.=1 meter)
-
63GF-70241-0 Hose (low permeation)
LOW PERMEATION PARTS / (FOR USA MODEL)Hose (low permeation)
LOW PERMEATION PARTS / (FOR USA MODEL) -
798AB70160-0 Fuel pipe 7mm/5/16in (1 ea.=1 meter)
STD / 98AB-701000 x2Fuel pipe 7mm/5/16in (1 ea.=1 meter)
STD / 98AB-701000 x2 -
98AB-701000 Fuel pipe 7mm/5/16in (1 ea.=1 meter)Fuel pipe 7mm/5/16in (1 ea.=1 meter)
-
73GF-70240-0 Hose (low permeation)
LOW PERMEATION PARTS / (FOR USA MODEL)Hose (low permeation)
LOW PERMEATION PARTS / (FOR USA MODEL) -
83B7-70280-1 Mark, Fuel ConnectorMark, Fuel Connector
-
93GF-70281-0 Fuel connector
STDFuel connector
STD -
10394-70250-0 Соединитель топливныйСоединитель топливный
-
11332-70201-0 ClampClamp
-
123B2-70167-0 New partNew part
-
129999-8-FT12 Fuel tank 12l (3.1 gal) epa cap (nissan)Fuel tank 12l (3.1 gal) epa cap (nissan)
-
3Y3-70167-1 Fuel tank 12l (3.1 gal) epa cap (nissan)Fuel tank 12l (3.1 gal) epa cap (nissan)
-
133B2-70050-0 Fuel gauge vented cap ass'yFuel gauge vented cap ass'y
-
143C7-70021-0 Cap gasketCap gasket
-
153B2-70155-0 Fuel PickupFuel Pickup
-
163E0-70270-0 New partNew part
-
173C7-70199-0 O-RingO-Ring
-
183C7-70113-0 FilterFilter
