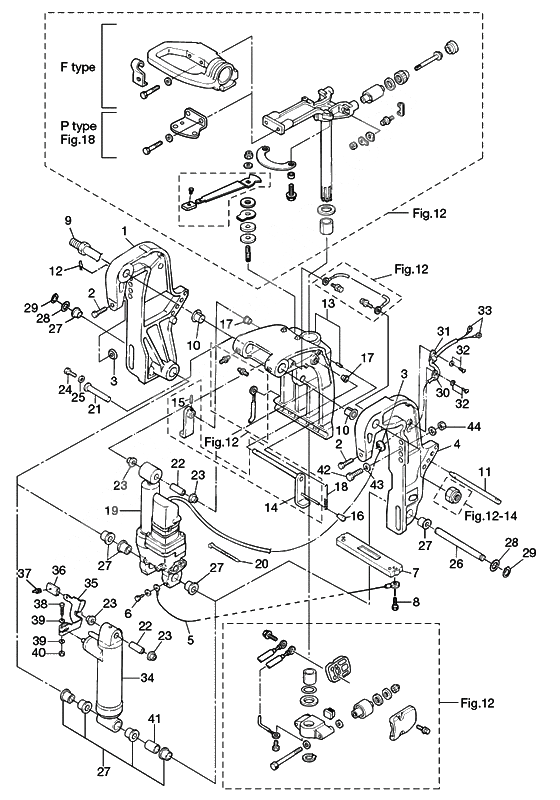

Bracket (ptt & gas assist) для Tohatsu MFS25B - 2010 года выпуска`
-
№АртикулНазвание
-
13AEQ77211-1 Clamp bracket right (ptt)
STERN BRACKET (RIGHT) / PTT MODELClamp bracket right (ptt)
STERN BRACKET (RIGHT) / PTT MODEL -
3AEQ77211-0 Clamp bracket right (ptt)Clamp bracket right (ptt)
-
13AFQ77211-1 Clamp bracket (right) gas assist type
STERN BRACKET (RIGHT) / GAS ASSIST MODELClamp bracket (right) gas assist type
STERN BRACKET (RIGHT) / GAS ASSIST MODEL -
3AFQ77211-0 Clamp bracket (right) gas assist typeClamp bracket (right) gas assist type
-
23C8-77214-0 Винт струбциныВинт струбцины
-
3332-62101-0 Pad clamp screwPad clamp screw
-
43AEQ77212-2 Clamp bracket left (ptt)
STERN BRACKET (LEFT) / PTT MODELClamp bracket left (ptt)
STERN BRACKET (LEFT) / PTT MODEL -
3AEQ77212-0 Clamp bracket left (ptt)Clamp bracket left (ptt)
-
43AFQ77212-2 Clamp bracket (left) gas assist type
STERN BRACKET (LEFT) / GAS ASSIST MODELClamp bracket (left) gas assist type
STERN BRACKET (LEFT) / GAS ASSIST MODEL -
3AFQ77212-0 Clamp bracket (left) gas assist typeClamp bracket (left) gas assist type
-
5398-62396-1 Ground WireGround Wire
-
6910103-5612 BoltBolt
-
73C7-60218-2 Anode, Stern BracketAnode, Stern Bracket
-
8910103-5630 BoltBolt
-
93AD-62191-0 Swivel bracket bolt (ptt)
BRACKET BOLTSwivel bracket bolt (ptt)
BRACKET BOLT -
103C8-77213-0 Bushing Bracket BoltBushing Bracket Bolt
-
113R0-77118-0 Thrust RodThrust Rod
-
12951603-1000 R-PinR-Pin
-
133ACQ77208-2 Swivel bracket (ptt)
WITH PINSwivel bracket (ptt)
WITH PIN -
3ACQ77208-0 Swivel bracket (ptt)Swivel bracket (ptt)
-
143Z5-62470-1 Tilt stopper (ptt type)
PTT MODELTilt stopper (ptt type)
PTT MODEL -
3GF-62466-1 Tilt stopper (ptt type)Tilt stopper (ptt type)
-
143R0Q62470-0 Tilt stopper assy.
GAS ASSIST MODELTilt stopper assy.
GAS ASSIST MODEL -
3AC-62466-1 Tilt stopper assy.Tilt stopper assy.
-
15951403-3516 New partNew part
-
16369-62433-1 Grip Tilt StopperGrip Tilt Stopper
-
17353-63207-0 Collar 10.2-12-12Collar 10.2-12-12
-
183R0-62473-0 Spring,Tilt StopperSpring,Tilt Stopper
-
193AC-77151-1 Power trim & tilt assy
SEE FIG. 14Power trim & tilt assy
SEE FIG. 14 -
201H2-31534-0 Lead wire band-local purchaseLead wire band-local purchase
-
213R0-77071-1 Cylinder pin upper
PTT MODELCylinder pin upper
PTT MODEL -
3KY-77071-0 Cylinder pin upperCylinder pin upper
-
223R0-77075-0 Bushing
PTT MODELBushing
PTT MODEL -
233R0-77076-0 Bushing
PTT MODELBushing
PTT MODEL -
24910103-0612 New part
PTT MODELNew part
PTT MODEL -
25345-05122-1 Washer rachet
PTT MODELWasher rachet
PTT MODEL -
263R0-77101-1 Cylinder pin lower
PTT MODELCylinder pin lower
PTT MODEL -
3KY-77101-0 Cylinder pin lowerCylinder pin lower
-
273C8-77076-1 New part
PTT MODELNew part
PTT MODEL -
283R0-77112-0 Washer
PTT MODELWasher
PTT MODEL -
29945103-1800 C-Ring
PTT MODELC-Ring
PTT MODEL -
30336-06973-0 Clamp Lead Wire
PTT MODELClamp Lead Wire
PTT MODEL -
31345-06915-0 Clamp 6.5-14
PTT MODELClamp 6.5-14
PTT MODEL -
32921503-5612 Stud Bolt
PTT MODELStud Bolt
PTT MODEL -
333Y1-76145-0 Terminal Cap
PTT MODELTerminal Cap
PTT MODEL -
343R0Q77601-2 Gas shock absorber
GAS ASSIST MODELGas shock absorber
GAS ASSIST MODEL -
353R0-66311-0 Rever, Revers Lock
GAS ASSIST MODELRever, Revers Lock
GAS ASSIST MODEL -
363AL-66333-0 Lock lever grip
GAS ASSIST MODELLock lever grip
GAS ASSIST MODEL -
37346-66334-0 Stopper
GAS ASSIST MODELStopper
GAS ASSIST MODEL -
389101F4-0635 Bolt
GAS ASSIST MODELBolt
GAS ASSIST MODEL -
910114-0635 BoltBolt
-
399401E3-0600 Washer
GAS ASSIST MODELWasher
GAS ASSIST MODEL -
940113-0600 WasherWasher
-
409301E3-0600 Nut
GAS ASSIST MODELNut
GAS ASSIST MODEL -
930103-0600 NutNut
-
413R0-77105-0 Втулка тяги КПП
GAS ASSIST MODELВтулка тяги КПП
GAS ASSIST MODEL -
423C7-62133-2 Bolt
GAS ASSIST MODELBolt
GAS ASSIST MODEL -
43353-61334-0 WasherWasher
-
443C7-62139-1 Nut,P1.25Nut,P1.25
