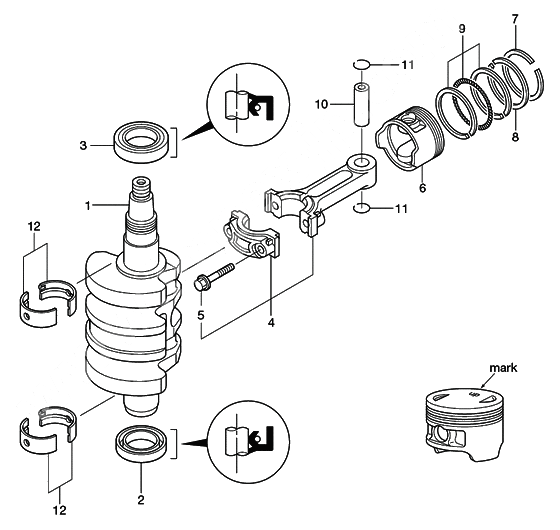

Piston & crank shaft для Tohatsu MFS20C - 2010 года выпуска
-
№АртикулНазвание
-
13BJ-00030-0 Crankshaft assyCrankshaft assy
-
23R3-00121-0 Oil Seal, 32-44-9
LOWEROil Seal, 32-44-9
LOWER -
33BJ-00121-0 Oil seal 36-50-7
UPPEROil seal 36-50-7
UPPER -
43R0-00040-0 Conncting Rod Ass'yConncting Rod Ass'y
-
53H6-00059-0 Bolt, Connecting RodBolt, Connecting Rod
-
63AE-00001-0 Piston std f9.9c/15c/20cPiston std f9.9c/15c/20c
-
73AC-00011-0 Top ringTop ring
-
83AC-00012-0 2-nd ring2-nd ring
-
93AC-00013-0 3-d ring3-d ring
-
103AE-00021-0 Piston PinPiston Pin
-
113H6-00024-0 Clip, Piston PinClip, Piston Pin
-
123AE-07408-0 Bearing (blue)
BLUEBearing (blue)
BLUE -
123AE-07407-0 Bearing (red)
REDBearing (red)
RED
