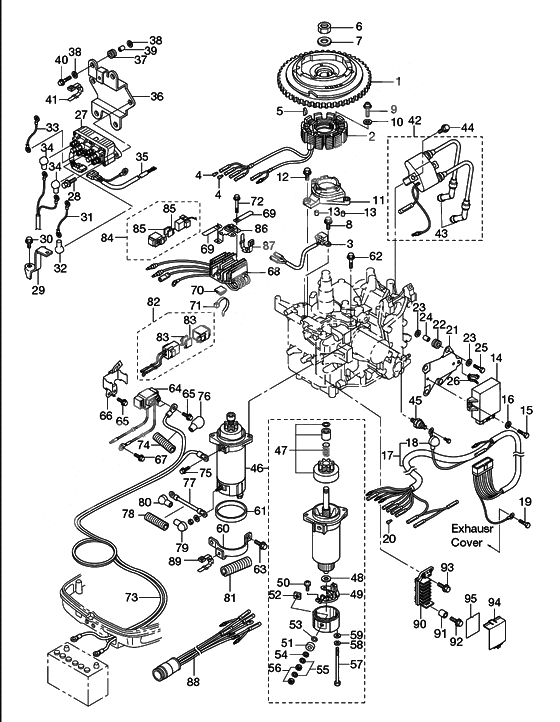

Magneto & electric parts для Tohatsu MFS15C - 2010 года выпуска
-
№АртикулНазвание
-
13BJ-06191-0 Flywheel cup (with ring gear)Flywheel cup (with ring gear)
-
23BJ-06023-0 AlternatorAlternator
-
33BJ-06071-0 Pulser coilPulser coil
-
43A3-76037-0 Plug B Cable Terminal
FOR MFPlug B Cable Terminal
FOR MF -
53T5-10131-0 Key, Drive Pulley
FOR MAGNETOKey, Drive Pulley
FOR MAGNETO -
6931121-1600 NutNut
-
73H8-00133-0 WasherWasher
-
8910103-5514 BoltBolt
-
9921503-6630 Stud BoltStud Bolt
-
10940203-0600 WasherWasher
-
113V6-06008-0 Coil bracketCoil bracket
-
123AD-06864-0 Bolt 6-25 pre-coatedBolt 6-25 pre-coated
-
13345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
143BJ-06060-1 C.d. ignition unit (cu7275)
CU7275C.d. ignition unit (cu7275)
CU7275 -
153V1-60108-0 Bolt,6-16 Pre CoatedBolt,6-16 Pre Coated
-
163R0-66308-0 WasherWasher
-
173BJ-06167-0 Cord assy c.d. unitCord assy c.d. unit
-
183H6-07612-0 Grommet, oil pressure switchGrommet, oil pressure switch
-
199101E3-5612 Bolt & washerBolt & washer
-
203A3-76037-0 Plug B Cable Terminal
FOR MFPlug B Cable Terminal
FOR MF -
213BJ-06061-0 Bracket c.d. unitBracket c.d. unit
-
223AC-06920-0 Rubber MountRubber Mount
-
233R0-66308-0 WasherWasher
-
243BJ-06303-0 Collar 6.2-9-8.7Collar 6.2-9-8.7
-
259101E3-0620 BoltBolt
-
910103-0620 BoltBolt
-
263BJ-84398-0 Lead wire band 135Lead wire band 135
-
273Z0-72580-0 Power tilt solenoid switch inain
FOR EFT/EPTPower tilt solenoid switch inain
FOR EFT/EPT -
289101E3-5620 Bolt & washer
FOR EFT/EPTBolt & washer
FOR EFT/EPT -
293BA-76174-0 Stay
FOR EFT/EPTStay
FOR EFT/EPT -
309101E3-5616 Bolt & washer
FOR EFT/EPTBolt & washer
FOR EFT/EPT -
313BA-72582-0 Solenoid switch cord inain (l=300)
FOR EFT/EPTSolenoid switch cord inain (l=300)
FOR EFT/EPT -
323Y1-76145-0 Terminal Cap
FOR EFT/EPTTerminal Cap
FOR EFT/EPT -
333C8-72583-1 Cord B Solenoid Switch (L=130)
FOR EFT/EPTCord B Solenoid Switch (L=130)
FOR EFT/EPT -
343Y1-76145-0 Terminal Cap
FOR EFT/EPTTerminal Cap
FOR EFT/EPT -
353BJ-72569-0 Extension cord (ptt)
FOR EFT/EPTExtension cord (ptt)
FOR EFT/EPT -
363BJ-06901-0 Ptt solenoid bracket
FOR EFT/EPTPtt solenoid bracket
FOR EFT/EPT -
373AC-06920-0 Rubber Mount
FOR EFT/EPTRubber Mount
FOR EFT/EPT -
383R0-66308-0 Washer
FOR EFT/EPTWasher
FOR EFT/EPT -
393BJ-06303-0 Collar 6.2-9-8.7
FOR EFT/EPTCollar 6.2-9-8.7
FOR EFT/EPT -
409101E3-0620 Bolt
FOR EFT/EPTBolt
FOR EFT/EPT -
910103-0620 BoltBolt
-
413BJ-84398-0 Lead wire band 135
FOR EFT/EPTLead wire band 135
FOR EFT/EPT -
423BJ-06040-0 Ignition CoilIgnition Coil
-
433AC-06999-0 Plug cap (with resistance)Plug cap (with resistance)
-
449101E3-5625 Bolt & washerBolt & washer
-
453H6-07611-0 Switch, Oil PressureSwitch, Oil Pressure
-
463C8-76010-1 Starter Motor Ass'y
FOR EF/EFT/EP/EPTStarter Motor Ass'y
FOR EF/EFT/EP/EPT -
473C8-76015-0 Pinion Ass'y
FOR EF/EFT/EP/EPTPinion Ass'y
FOR EF/EFT/EP/EPT -
483C8-75015-0 Washer
FOR EF/EFT/EP/EPTWasher
FOR EF/EFT/EP/EPT -
493C8-75014-0 Brush Holder Ass'y
FOR EF/EFT/EP/EPTBrush Holder Ass'y
FOR EF/EFT/EP/EPT -
50921521-6408 Stud Bolt
FOR EF/EFT/EP/EPTStud Bolt
FOR EF/EFT/EP/EPT -
513C8-75016-0 Bushing
FOR EF/EFT/EP/EPTBushing
FOR EF/EFT/EP/EPT -
523C8-75017-0 Bushing
FOR EF/EFT/EP/EPTBushing
FOR EF/EFT/EP/EPT -
533C8-75018-0 O-Ring
FOR EF/EFT/EP/EPTO-Ring
FOR EF/EFT/EP/EPT -
54940103-0600 Washer
FOR EF/EFT/EP/EPTWasher
FOR EF/EFT/EP/EPT -
55941303-0600 New part
FOR EF/EFT/EP/EPTNew part
FOR EF/EFT/EP/EPT -
56930203-0600 Nut
FOR EF/EFT/EP/EPTNut
FOR EF/EFT/EP/EPT -
573C8-75019-0 Bolt
FOR EF/EFT/EP/EPTBolt
FOR EF/EFT/EP/EPT -
58941321-0500 Spring Washer
FOR EF/EFT/EP/EPTSpring Washer
FOR EF/EFT/EP/EPT -
59940221-0500 Washer
FOR EF/EFT/EP/EPTWasher
FOR EF/EFT/EP/EPT -
603BJ-76009-0 Band Starter Motor
ALL MODELBand Starter Motor
ALL MODEL -
613C8-76007-0 Rubber Starter Motor
FOR EF/EFT/EP/EPTRubber Starter Motor
FOR EF/EFT/EP/EPT -
629101E3-5825 Bolt
FOR EF/EFT/EP/EPTBolt
FOR EF/EFT/EP/EPT -
910103-5825 BoltBolt
-
639101E3-5818 Bolt
ALL MODELBolt
ALL MODEL -
910103-5818 BoltBolt
-
643BJ-76040-0 Starter Solenoid
FOR EF/EFT/EP/EPTStarter Solenoid
FOR EF/EFT/EP/EPT -
65910103-5610 Bolt
FOR EF/EFT/EP/EPTBolt
FOR EF/EFT/EP/EPT -
663BJ-76043-0 Bracket starter solenoid
FOR EF/EFT/EP/EPTBracket starter solenoid
FOR EF/EFT/EP/EPT -
67910103-5612 Bolt
FOR EF/EFT/EP/EPTBolt
FOR EF/EFT/EP/EPT -
683BJ-76060-0 Rectifier
FOR EF/EFT/EP/EPTRectifier
FOR EF/EFT/EP/EPT -
3BJ-76060-1 RectifierRectifier
-
69309-06972-0 Clamp,6.5-47.5P
FOR EF/EFT/EP/EPTClamp,6.5-47.5P
FOR EF/EFT/EP/EPT -
703BJ-76164-0 Band mount
FOR EF/EFT/EP/EPTBand mount
FOR EF/EFT/EP/EPT -
713Z0-84398-0 Band lead wire 203-local purchase
FOR EF/EFT/EP/EPTBand lead wire 203-local purchase
FOR EF/EFT/EP/EPT -
72910103-5625 Bolt
FOR EF/EFT/EP/EPTBolt
FOR EF/EFT/EP/EPT -
733BH-76120-0 Battery cable (l=2750 mm)
FOR EF/EFT/EP/EPTBattery cable (l=2750 mm)
FOR EF/EFT/EP/EPT -
743BJ-06133-0 Protector (l=320mm)
FOR EF/EFT/EP/EPTProtector (l=320mm)
FOR EF/EFT/EP/EPT -
75910103-5612 Bolt
FOR EF/EFT/EP/EPTBolt
FOR EF/EFT/EP/EPT -
763BJ-76145-0 Terminal Cap
FOR EF/EFT/EP/EPTTerminal Cap
FOR EF/EFT/EP/EPT -
773R3-76141-0 STARTER CORD
FOR EF/EFT/EP/EPTSTARTER CORD
FOR EF/EFT/EP/EPT -
783BA-06133-0 Protector (l=180mm)
FOR EF/EFT/EP/EPTProtector (l=180mm)
FOR EF/EFT/EP/EPT -
793Y0-76145-0 Terminal Cap
FOR EF/EFT/EP/EPTTerminal Cap
FOR EF/EFT/EP/EPT -
803AA-76145-0 Terminal Cap
FOR EF/EFT/EP/EPTTerminal Cap
FOR EF/EFT/EP/EPT -
813BH-06133-0 Protector
FOR EF/EFT/EP/EPTProtector
FOR EF/EFT/EP/EPT -
823V1-76066-0 Fuse Wire
FOR EF/EFT/EP/EPTFuse Wire
FOR EF/EFT/EP/EPT -
833T5-76247-0 Предохранитель
FOR EF/EFT/EP/EPTПредохранитель
FOR EF/EFT/EP/EPT -
843BJ-76066-0 Fuse cable (l=720mm)
FOR EF/EFT/EP/EPTFuse cable (l=720mm)
FOR EF/EFT/EP/EPT -
853T5-76247-0 Предохранитель
FOR EF/EFT/EP/EPTПредохранитель
FOR EF/EFT/EP/EPT -
863BJ-76064-0 Bracket fuse holder
FOR EF/EFT/EP/EPTBracket fuse holder
FOR EF/EFT/EP/EPT -
873BJ-84398-0 Lead wire band 135
FOR EF/EFT/EP/EPTLead wire band 135
FOR EF/EFT/EP/EPT -
883BJ-76110-0 Cord assy
FOR EP/EPTCord assy
FOR EP/EPT -
893BJ-84398-0 Lead wire band 135Lead wire band 135
-
903BJ-06281-0 Cable terminal holder
WITH COLLARCable terminal holder
WITH COLLAR -
3BJ-06281-1 Cable terminal holderCable terminal holder
-
91174-35012-0 Collar 6-8-6Collar 6-8-6
-
929101E3-5616 Bolt & washer
UPPERBolt & washer
UPPER -
939101E3-5612 Bolt & washer
LOWERBolt & washer
LOWER -
943BJ-06902-0 Terminal holder coverTerminal holder cover
-
953BJ-72028-0 Decal wring diagram (mf/ef)
FOR MF & EFDecal wring diagram (mf/ef)
FOR MF & EF -
953BK-72028-1 Decal wiring diagram (ep-ept)
FOR EP & EPTDecal wiring diagram (ep-ept)
FOR EP & EPT
