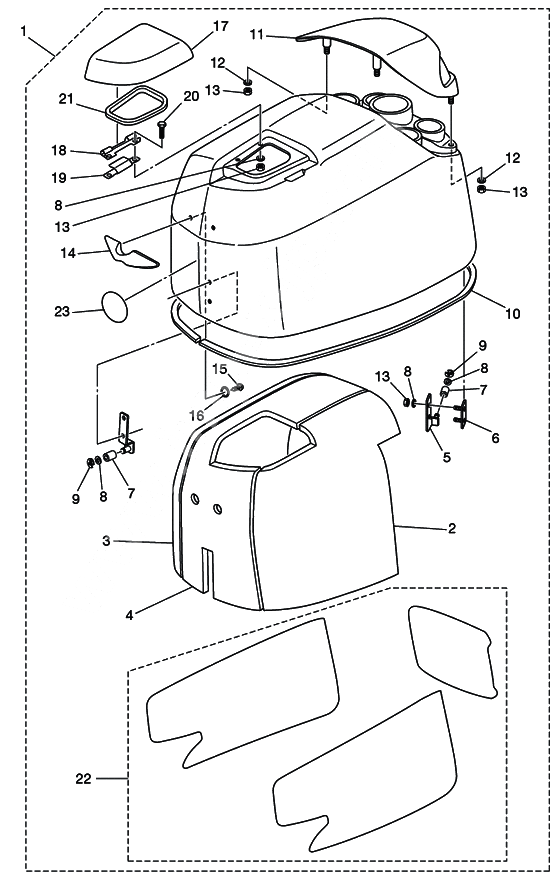

Top cowl (motor cover upper) для Tohatsu MD90C2 - 2010 года выпуска`
-
№АртикулНазвание
-
13FWQ67645-1 Motor cover upper md75c2/90c2 (aqua marine blue)
TOHATSU / MOTOR COVER (UPPER)Motor cover upper md75c2/90c2 (aqua marine blue)
TOHATSU / MOTOR COVER (UPPER) -
3FWQ67645-3 Motor cover upper md75c2/90c2 (aqua marine blue)Motor cover upper md75c2/90c2 (aqua marine blue)
-
13FZQ67645-1 Top cowl assy nsd75c2/90c2 (aqua marine blue)
NISSAN / MOTOR COVER (UPPER)Top cowl assy nsd75c2/90c2 (aqua marine blue)
NISSAN / MOTOR COVER (UPPER) -
23FW-67602-0 Sound isolation (left)Sound isolation (left)
-
33FW-67603-0 Sound isolation (right)Sound isolation (right)
-
43FW-67604-0 Sound isolation (top)Sound isolation (top)
-
53FW-67513-0 Cover stay (rear)Cover stay (rear)
-
63FW-67516-0 PlatePlate
-
73R0-67517-0 Roller,6.1-14.7-14Roller,6.1-14.7-14
-
8940103-0600 WasherWasher
-
9945303-0500 E-RingE-Ring
-
103FW-67501-0 Top cowl sealTop cowl seal
-
113T1Q67521-0 Tilt handle (amb)Tilt handle (amb)
-
123C8-66308-0 New partNew part
-
13930403-0600 Nylon NutNylon Nut
-
143T1-67660-0 Handle upper motor coverHandle upper motor cover
-
153T5-06437-0 Tapping Screw, 6-16Tapping Screw, 6-16
-
16345-05122-1 Washer rachetWasher rachet
-
173T1Q67209-1 Filler lidFiller lid
-
3T1Q67209-0 Filler lidFiller lid
-
183FW-67211-0 Filler lid hingeFiller lid hinge
-
193T1-67212-0 Spring filler lidSpring filler lid
-
20910103-0616 BoltBolt
-
213T1-67213-0 Seal motor coverSeal motor cover
-
223FW-87802-1 Decal set md90c2 (tohatsu)
TOHATSU / 90PSDecal set md90c2 (tohatsu)
TOHATSU / 90PS -
3FW-87802-3 Decal set md90c2 (tohatsu)Decal set md90c2 (tohatsu)
-
223Y8-87802-0 Decal set nsd90 (aqua marine blue)
NISSAN / 90PSDecal set nsd90 (aqua marine blue)
NISSAN / 90PS -
3Y8N87802-0 Decal set nsd90 (aqua marine blue)Decal set nsd90 (aqua marine blue)
-
233GF-67531-0 Front decalFront decal
