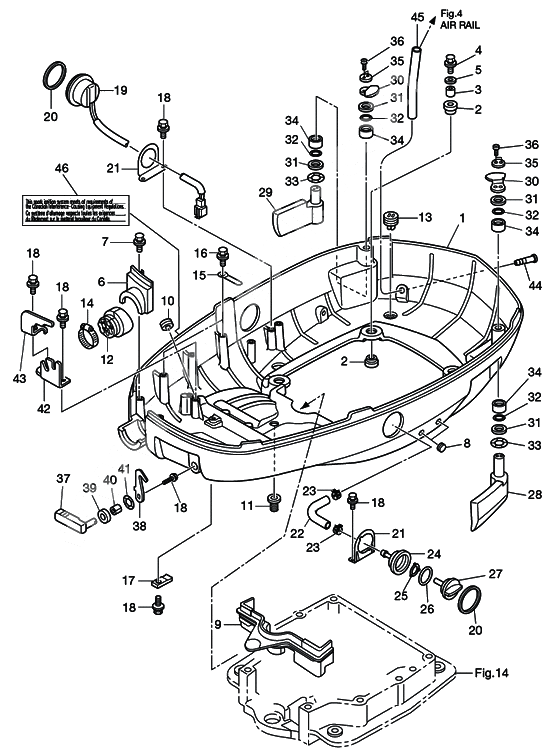

Bottom cowl (motor cover lower) для Tohatsu MD90C2 - 2010 года выпуска`
-
№АртикулНазвание
-
13T1Q67100-1 Lower motor cover d75/90c2d115a (amb)
MOTOR COVER (LOWER)Lower motor cover d75/90c2d115a (amb)
MOTOR COVER (LOWER) -
2345-67113-0 Mount RubberMount Rubber
-
33C7-67114-1 Spacer 8.4-12-17Spacer 8.4-12-17
-
3C7-67114-0 Spacer 8.4-12-17Spacer 8.4-12-17
-
49101E3-0835 BoltBolt
-
53B7-63730-0 WasherWasher
-
63KVQ76118-0 ClampClamp
-
7910103-5625 BoltBolt
-
8345-67117-0 New partNew part
-
93C7-67164-0 Grommet A Lower CoverGrommet A Lower Cover
-
103C7-77156-0 GrommetGrommet
-
11345-66226-0 Grommet, 17-3Grommet, 17-3
-
123T1-76116-1 GrommetGrommet
-
3T1-76116-0 GrommetGrommet
-
133T1-67161-0 GrommetGrommet
-
143R0-02426-0 Clamp,60Clamp,60
-
15398-06972-0 Clamp,6.5-67PClamp,6.5-67P
-
16910103-5612 BoltBolt
-
173C7-72577-0 ClampClamp
-
18910103-5616 BoltBolt
-
193AC-72615-0 Ptt switchPtt switch
-
203F3-72616-1 Gasket Ptt Switch Ass'yGasket Ptt Switch Ass'y
-
213T1-72617-0 Bracket ptt switchBracket ptt switch
-
223FW-72410-0 Flushing hoseFlushing hose
-
233T1-07737-1 Clip 17.8Clip 17.8
-
3T1-07437-0 Clip 17.8Clip 17.8
-
243T1-72403-0 Flushing connectorFlushing connector
-
253T1-67147-0 Seal ringSeal ring
-
263R0-07422-0 New partNew part
-
273T1-72404-0 Cap flushing connectorCap flushing connector
-
283T1-67680-0 Hook lever assy (left)Hook lever assy (left)
-
293T1-67681-0 Hook lever assy (right)Hook lever assy (right)
-
303T1-67142-0 Cover HookCover Hook
-
313T1-63731-0 WasherWasher
-
323T1-62435-0 O-ring 3.5-18O-ring 3.5-18
-
333T1-63109-0 Wave WasherWave Washer
-
343C8-77075-0 New partNew part
-
353T1-67146-0 WasherWasher
-
36910203-0520 BoltBolt
-
373R3Q67141-0 Hook leverHook lever
-
383R3-67142-0 Cover HookCover Hook
-
39338-67147-0 New partNew part
-
40332-67105-1 BushingBushing
-
332-67105-0 BushingBushing
-
41941403-1400 New partNew part
-
423FW-83734-0 Cable ClipCable Clip
-
433FW-83735-0 Cable ClipCable Clip
-
443T1-01138-0 Water NippleWater Nipple
-
4598AB-5-0180 Fuel pipe 5mm (1 ea.=1 meter)
98AB-501000Fuel pipe 5mm (1 ea.=1 meter)
98AB-501000 -
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
463C7-72030-0 Label, Interfernce
FOR USA MODELLabel, Interfernce
FOR USA MODEL
