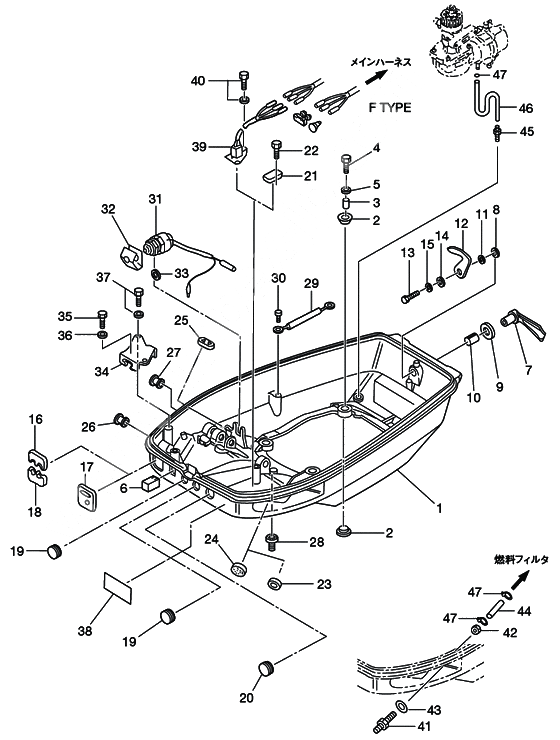

Bottom cowl (motor cover lower) для Tohatsu MD50B2 - 2010 года выпуска`
-
№АртикулНазвание
-
13C8Q67100-0 Lower motor cover d40/50b (amb)Lower motor cover d40/50b (amb)
-
2346-67113-0 Mount RubberMount Rubber
-
3346-67114-1 SpacerSpacer
-
346-67114-0 SpacerSpacer
-
49101E3-0630 BoltBolt
-
5346-67115-0 WasherWasher
-
63T5-67150-0 Cap, Choke KnobCap, Choke Knob
-
73C8Q67141-0 Hook lever (amb)Hook lever (amb)
-
83C8-67146-0 WasherWasher
-
9338-67147-0 New partNew part
-
10369-67105-0 BushingBushing
-
11941403-1400 New partNew part
-
123C8-67142-1 Cover HookCover Hook
-
139101F4-0612 BoltBolt
-
910114-0612 BoltBolt
-
143C8-66308-0 New partNew part
-
15941303-0600 New partNew part
-
163C8-83732-0 Grommet Remote Control Cable
FOR P TYPEGrommet Remote Control Cable
FOR P TYPE -
173T5-67162-0 Grommet, Battery Cord
FOR F TYPEGrommet, Battery Cord
FOR F TYPE -
183C8-76116-1 Grommet Cord
FOR P TYPEGrommet Cord
FOR P TYPE -
19345-67117-0 New partNew part
-
20345-76092-0 GrommetGrommet
-
213C8-72619-0 Grommet
FOR F TYPEGrommet
FOR F TYPE -
22910103-0610 Bolt
FOR F TYPEBolt
FOR F TYPE -
23338-67163-0 Supporting Rubber Fuel PipeSupporting Rubber Fuel Pipe
-
24345-67117-0 New partNew part
-
253C8-63621-0 Grommet throttle wire
FOR F TYPEGrommet throttle wire
FOR F TYPE -
253C8-63624-0 Grommet Throttle Hole
FOR P TYPEGrommet Throttle Hole
FOR P TYPE -
263B2-67187-0 Grommet Throttle Shaft
FOR P TYPEGrommet Throttle Shaft
FOR P TYPE -
273B7-01046-0 PlugPlug
-
28345-66226-0 Grommet, 17-3Grommet, 17-3
-
293N4-76142-1 Grounding wireGrounding wire
-
3N4-76142-0 Grounding wireGrounding wire
-
30910103-6612 BoltBolt
-
31398-76080-0 Neutral Switch Ass'y
FOR F TYPENeutral Switch Ass'y
FOR F TYPE -
32398-76083-0 Actuator Neutral Switch
FOR F TYPEActuator Neutral Switch
FOR F TYPE -
333B7-63731-0 Washer
FOR F TYPEWasher
FOR F TYPE -
343C8-83820-0 Bracket remote control cable
FOR P TYPEBracket remote control cable
FOR P TYPE -
353C8-83821-0 Stud Bolt
FOR P TYPEStud Bolt
FOR P TYPE -
36941303-0400 Spring Washer
FOR P TYPESpring Washer
FOR P TYPE -
37910103-5616 Bolt
FOR P TYPEBolt
FOR P TYPE -
383T5-72057-0 Lavel, power trim & switch
FOR P TYPELavel, power trim & switch
FOR P TYPE -
393T5-72613-1 Switch b assy ptt
FOR P TYPESwitch b assy ptt
FOR P TYPE -
40910103-5612 Bolt
FOR P TYPEBolt
FOR P TYPE -
413B2-70260-1 New partNew part
-
42332-70261-0 Nut Fuel Connector BNut Fuel Connector B
-
43336-70112-0 Gasket 10.2-16-0.5Gasket 10.2-16-0.5
-
4498AB-5-0260 Fuel pipe 5mm (1 ea.=1 meter)
98AB-501000Fuel pipe 5mm (1 ea.=1 meter)
98AB-501000 -
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
453BA-01138-0 Water NippleWater Nipple
-
4698AB-5-0250 Fuel pipe 5mm (1 ea.=1 meter)
98AB-501000Fuel pipe 5mm (1 ea.=1 meter)
98AB-501000 -
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
47338-02215-0 ClipClip
