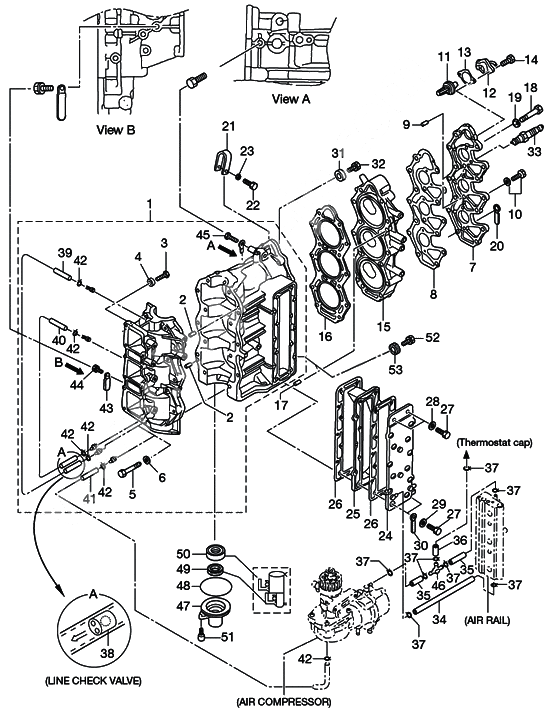

Cylinder & crank case для Tohatsu MD40B2 - 2010 года выпуска`
-
№АртикулНазвание
-
13T5B01100-0 Cylinder & Crank Case Ass'yCylinder & Crank Case Ass'y
-
2345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
3910103-0618 BoltBolt
-
4353-76079-0 Collar 6.2-9-9.3Collar 6.2-9-9.3
-
5916124-0845 BoltBolt
-
6940121-0800 WasherWasher
-
73T5B01021-0 Cover, Cylinder HeadCover, Cylinder Head
-
83T5-01024-0 Gasket,head CoverGasket,head Cover
-
9334-65012-0 СтопорСтопор
-
10910121-5620 BoltBolt
-
11345-01030-0 サーモスタットサーモスタット
-
123T5B01031-1 Cap,ThemostatCap,Themostat
-
133T5-01032-0 Gasket, Thermostat CapGasket, Thermostat Cap
-
149101E3-5625 Bolt & washerBolt & washer
-
153GFB01091-0 Cylinder headCylinder head
-
163T5-01005-0 Gasket,Cylinder HeadGasket,Cylinder Head
-
17345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
18916189-0865 BoltBolt
-
19345-01015-0 WasherWasher
-
203T5-06971-1 ClampClamp
-
3T5-06971-0 ClampClamp
-
213C8-01513-1 HangerHanger
-
3C8-01513-0 HangerHanger
-
229101F4-0835 BoltBolt
-
916114-0835 BoltBolt
-
23940121-0800 WasherWasher
-
243Z5B02300-1 Exhaust cover assyExhaust cover assy
-
253C8-02302-0 Exhaust Cover InnerExhaust Cover Inner
-
263C8-02305-2 New partNew part
-
279161F9-0630 BoltBolt
-
916119-0630 BoltBolt
-
28940103-0600 WasherWasher
-
29940121-0600 WasherWasher
-
303T4-06972-1 ClampClamp
-
3T4-06972-0 ClampClamp
-
31338-60218-2 New partNew part
-
32910103-5620 BoltBolt
-
339701-1-1110 Spark plug ngk izfr6j (iridium)Spark plug ngk izfr6j (iridium)
-
9701-1-1111 Spark plug ngk izfr6j (iridium)Spark plug ngk izfr6j (iridium)
-
3498AB-5-0250 Fuel pipe 5mm (1 ea.=1 meter)
98AB-501000Fuel pipe 5mm (1 ea.=1 meter)
98AB-501000 -
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
3598AB-5-0075 Fuel pipe 5mm (1 ea.=1 meter)
98AB-501000Fuel pipe 5mm (1 ea.=1 meter)
98AB-501000 -
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
3698AB-5-0115 Fuel pipe 5mm (1 ea.=1 meter)
98AB-501000Fuel pipe 5mm (1 ea.=1 meter)
98AB-501000 -
98AB-501000 Fuel pipe 5mm (1 ea.=1 meter)Fuel pipe 5mm (1 ea.=1 meter)
-
37338-02215-0 ClipClip
-
38393-01160-0 Check Valve
FOR LUBRICATION PIPECheck Valve
FOR LUBRICATION PIPE -
3998AL-4-0355 Lube pipe (1 ea.=1m) must use 393011600m check valve
98AL-401000Lube pipe (1 ea.=1m) must use 393011600m check valve
98AL-401000 -
98AL-4-1000 Lube pipe (1 ea.=1m) must use 393011600m check valveLube pipe (1 ea.=1m) must use 393011600m check valve
-
4098AL-4-0205 Lube pipe (1 ea.=1m) must use 393011600m check valve
98AL-401000Lube pipe (1 ea.=1m) must use 393011600m check valve
98AL-401000 -
98AL-4-1000 Lube pipe (1 ea.=1m) must use 393011600m check valveLube pipe (1 ea.=1m) must use 393011600m check valve
-
4198AL-4-0335 Lube pipe (1 ea.=1m) must use 393011600m check valve
98AL-401000Lube pipe (1 ea.=1m) must use 393011600m check valve
98AL-401000 -
98AL-4-1000 Lube pipe (1 ea.=1m) must use 393011600m check valveLube pipe (1 ea.=1m) must use 393011600m check valve
-
42338-01133-0 ClipClip
-
43309-06972-0 Clamp,6.5-47.5P
FOR P TYPEClamp,6.5-47.5P
FOR P TYPE -
44910103-0610 Bolt
FOR P TYPEBolt
FOR P TYPE -
45910103-5610 BoltBolt
-
463T7-01175-0 T-NippleT-Nipple
-
473C8-01291-0 Lower Head Crank CaseLower Head Crank Case
-
48346-01216-0 O-RingO-Ring
-
493T5-00122-0 Oil Seal, 25-40-8Oil Seal, 25-40-8
-
503C8-01215-0 Oil Seal 16-28-7Oil Seal 16-28-7
-
51910103-5620 BoltBolt
-
52910613-0808 BoltBolt
-
53332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
