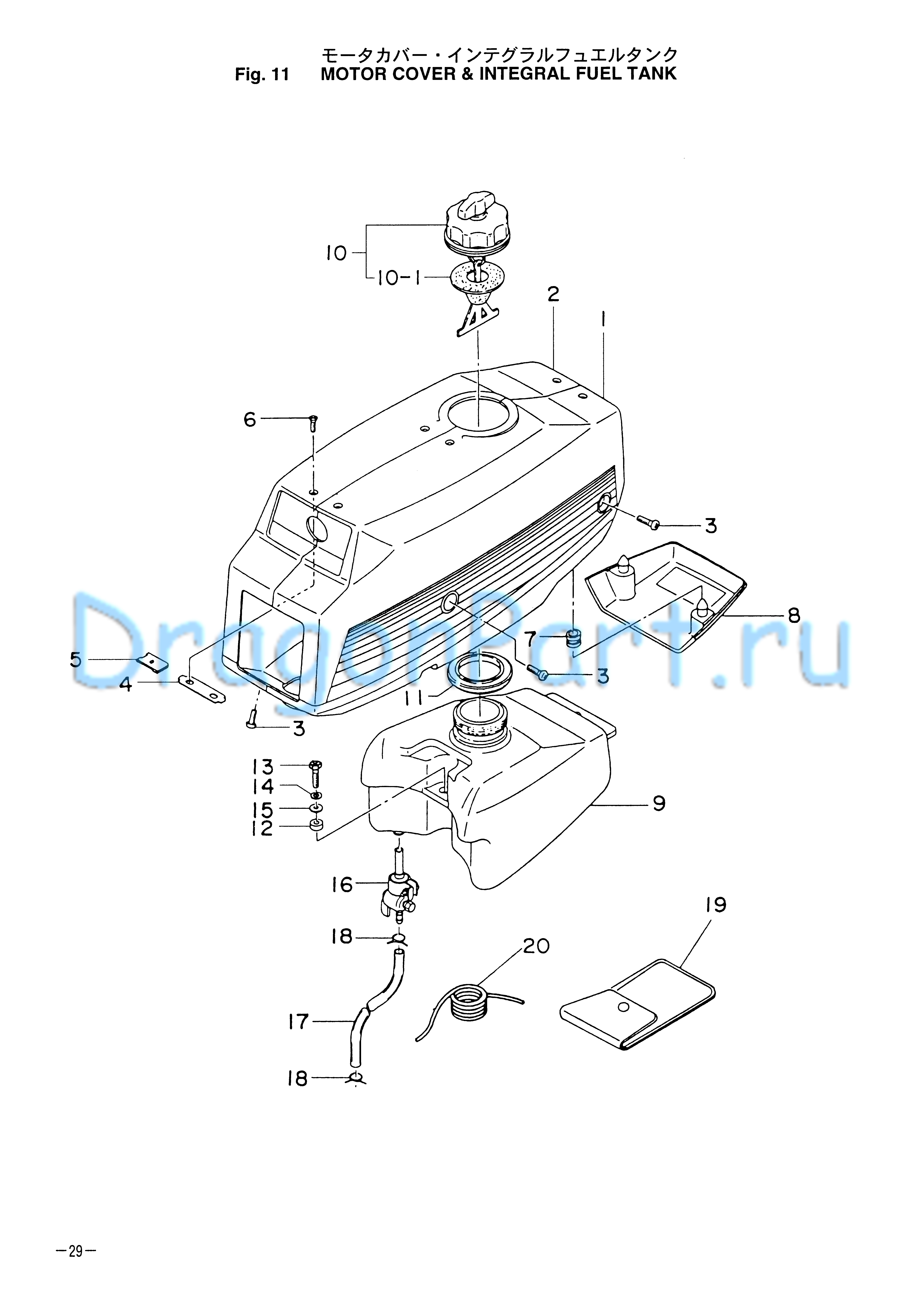

MOTOR COVER INTEGRAL FUEL TANK для Tohatsu M3.5B2 - 2010 года выпуска`
-
№АртикулНазвание
-
1309S67004-6 Motor Cover, Left (with Decal)
UNIQUEMotor Cover, Left (with Decal)
UNIQUE -
23FOS67003-6 Motor Cover, Right (with Decal)
UNIQUEMotor Cover, Right (with Decal)
UNIQUE -
3921513-0612 ScrewScrew
-
4309-67006-0 Set Plate, Motor CoverSet Plate, Motor Cover
-
5309-67007-0 Nut, Motor Cover Set PlateNut, Motor Cover Set Plate
-
6921603-0510 ScrewScrew
-
7307-67005-0 Grommet, Plug Cap CoverGrommet, Plug Cap Cover
-
8309S06927-1 Cover, Plue: CapCover, Plue: Cap
-
9309-70010-1 Fuel TankFuel Tank
-
10309-70020-1 Fuel Tank CapFuel Tank Cap
-
10-1309-70021-3 * Cap Gasket* Cap Gasket
-
11309-70036-0 Seal Rubber, Fuel TankSeal Rubber, Fuel Tank
-
12309-70015-0 Spacer, 7.2-10-6Spacer, 7.2-10-6
-
13910421-0620 BoltBolt
-
14941322-0600 Spring: WasherSpring: Washer
-
15309-70016-0 Washer, 6.5-16-2Washer, 6.5-16-2
-
16309-70011-0 Fuel CockFuel Cock
-
1798AB-5-0250 Fuel PipeFuel Pipe
-
18338-02215-0 Clip 10Clip 10
-
19312-72100-0 ToolTool
-
20312-72201-0 Rope
d> 4-1000Rope
d> 4-1000
