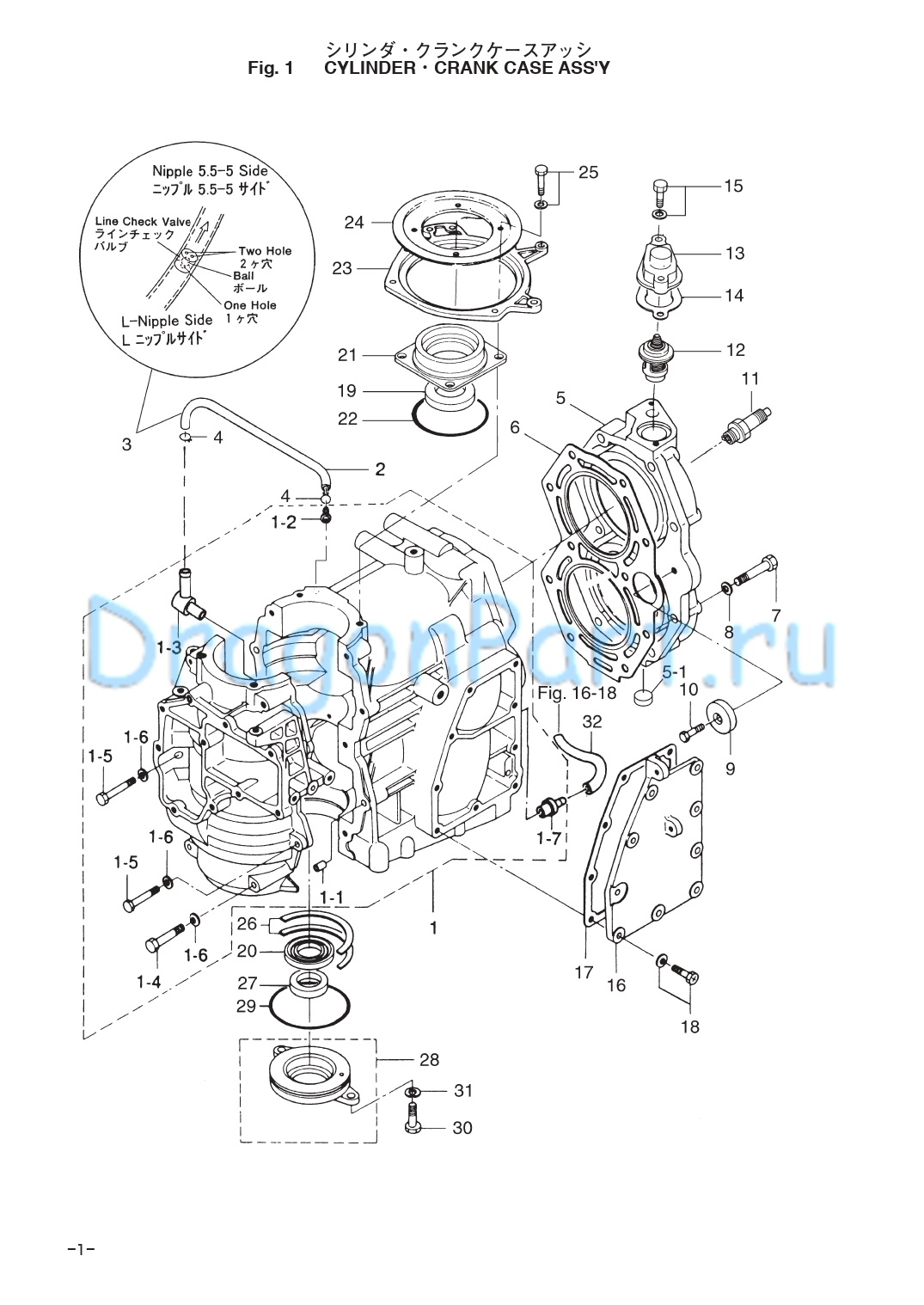

CYLINDER CRANK CASE ASS`Y для Tohatsu M25C3 - 2010 года выпуска
-
№АртикулНазвание
-
1346B01100-4 Cylinder-Crank Case
30A4 # 38568〜 25C3 # 57329〜Cylinder-Crank Case
30A4 # 38568〜 25C3 # 57329〜 -
1-1336-01111-0 * Dowel Pin, 8.65-11.5-12.7* Dowel Pin, 8.65-11.5-12.7
-
1-2393-01131-0 * Nipple, 5.5-5
30A4 # 38568- 25C3 # 57329〜* Nipple, 5.5-5
30A4 # 38568- 25C3 # 57329〜 -
1-3393-01137-0 * L-Nipple (New)
30A4 # 38568- 25C3 # 57329〜* L-Nipple (New)
30A4 # 38568- 25C3 # 57329〜 -
1-33B2-01160-0 * Check Valve Nipple (Old)
30A4 # 38568- 25C3 # 57329〜* Check Valve Nipple (Old)
30A4 # 38568- 25C3 # 57329〜 -
1-4916124-0845 * Bolt* Bolt
-
1-5916124-0840 * Bolt* Bolt
-
1-6940121-0800 * Washer* Washer
-
1-7346-01137-0 * Nipple, 7-7* Nipple, 7-7
-
298AL-4-0220 Lubrication Hose
30A4 # 38568〜 25C3 # 57329〜Lubrication Hose
30A4 # 38568〜 25C3 # 57329〜 -
3393-01160-0 Line Check Valve
30A4 # 38568〜 25C3 # 57329〜Line Check Valve
30A4 # 38568〜 25C3 # 57329〜 -
43T5-01133-0 Clip, 08Clip, 08
-
53A1B01001-0 Cylinder Head
30A3 # 21031〜 25C2 # 27906〜Cylinder Head
30A3 # 21031〜 25C2 # 27906〜 -
5-1350-01093-0 * Welch Plug* Welch Plug
-
6346-01005-0 Cylinder Head GasketCylinder Head Gasket
-
7916119-0845 BoltBolt
-
8345-01015-0 Washer, 8.5-19.5-3.2Washer, 8.5-19.5-3.2
-
9338-60218-2 AnodeAnode
-
10910103-0616 BoltBolt
-
119701-1-1005 Spark Plug
NGK: B7HS-10Spark Plug
NGK: B7HS-10 -
119701-1-1015 Spark Plug ( with Resistance)
NGK: BR7HS-10Spark Plug ( with Resistance)
NGK: BR7HS-10 -
12345-01030-0 ThermostatThermostat
-
133H6B01031-0 Thermostat CapThermostat Cap
-
14346-01032-0 Thermostat Cap GasketThermostat Cap Gasket
-
15910114-5630 BoltBolt
-
16346B02301-0 Exhaust CoverExhaust Cover
-
17346-02305-0 Exhaust Cover GasketExhaust Cover Gasket
-
18910411-5518 BoltBolt
-
19126-00121-0 Oil Seal, 30-45-8Oil Seal, 30-45-8
-
20346-00122-0 Oil Seal, 24-40-8Oil Seal, 24-40-8
-
21345-01401-0 Magneto BasementMagneto Basement
-
22338-01403-0 O-Ring, 2-55.5O-Ring, 2-55.5
-
23353-63723-1 Setting RingSetting Ring
-
24346-63722-2 Guide PlateGuide Plate
-
25910121-6620 BoltBolt
-
26346-00115-0 Crank Shaft Thrust PlateCrank Shaft Thrust Plate
-
2フ346-01215-0 Oil Seal, 16-28-6Oil Seal, 16-28-6
-
28346-01210-0 Crank Case HeadCrank Case Head
-
29346-01216-0 O-Ring, 1.7-59O-Ring, 1.7-59
-
30910114-0616 BoltBolt
-
31941303-0600 Spring WasherSpring Washer
-
3298AB-5-0250 Water Nipple HoseWater Nipple Hose
