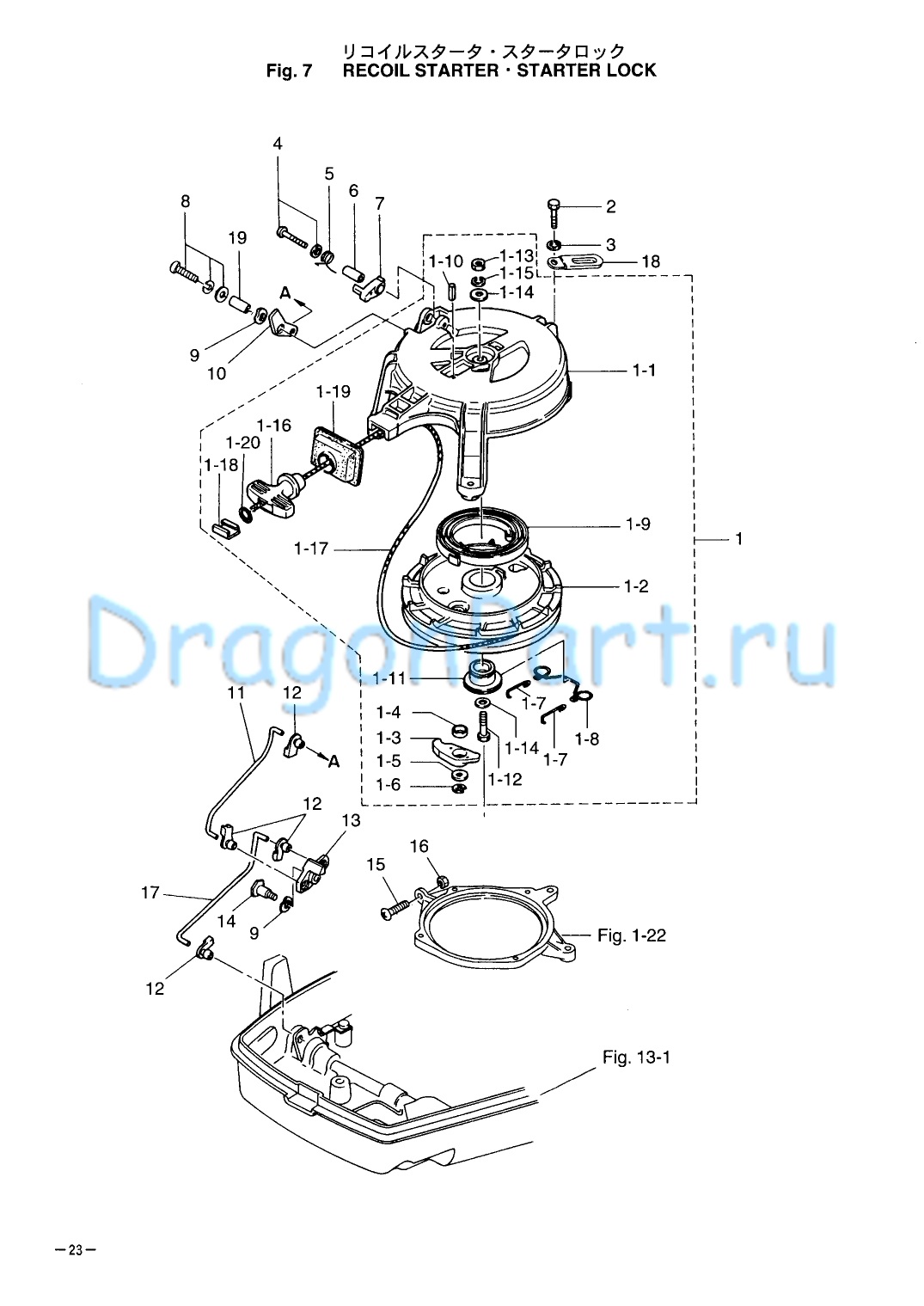

RECOIL STARTER STARTER LOCK для Tohatsu M18E2 - 2010 года выпуска`
-
№АртикулНазвание
-
1350-05000-0 Recoil StarterRecoil Starter
-
1-1350-05105-0 * Starter Case* Starter Case
-
1-2350-05104-1 * Reel* Reel
-
1-3345-05003-1 * Ratchet* Ratchet
-
1-4345-05135-1 * Ratchet Bushing* Ratchet Bushing
-
1-5346-67115-0 * Washer, 6.5-21-1* Washer, 6.5-21-1
-
1-6945303-0500 * E-Ring, d二5* E-Ring, d二5
-
1-7350-05123-0 * Ratchet Guide “A”* Ratchet Guide “A”
-
1-8350-05124-0 * Ratchet Guide *'B"* Ratchet Guide *'B"
-
1-9345-05004-0 * Starter Spring* Starter Spring
-
1-10951403-0316 * Spring Pin, 3-16* Spring Pin, 3-16
-
1-11350-05132-0 * Starter Shaft* Starter Shaft
-
1-12910114-0635 * Bolt* Bolt
-
1-13930103-0600 * Nut
or 910113-0600* Nut
or 910113-0600 -
1-14940121-0600 * Washer
or 940113-0600* Washer
or 940113-0600 -
1-15941322-0600 * Spring Washer* Spring Washer
-
1-16338-05019-0 * Starter Handle* Starter Handle
-
1-17350-05013-1 * Starter Rope
Ø 5 x1600* Starter Rope
Ø 5 x1600 -
1-18338-05131-0 * Rope Anchor* Rope Anchor
-
1-19350-05116-0 * Starter Sealing Plate* Starter Sealing Plate
-
1-20350-05136-0 * O-Ring, 2.5-4.5* O-Ring, 2.5-4.5
-
2910114-0630 BoltBolt
-
3941303-0600 Spring WasherSpring Washer
-
4921503-5430 ScrewScrew
-
5338-05216-0 Starter Lock SpringStarter Lock Spring
-
6338-05255-0 Collar, 4-6-21Collar, 4-6-21
-
7338-05252-0 Starter LockStarter Lock
-
8921503-7616 ScrewScrew
-
9941403-0800 Wave Washer, d二8Wave Washer, d二8
-
10350-05253-0 Starter Lock CamStarter Lock Cam
-
11350-05217-0 Starter Lock RodStarter Lock Rod
-
12345-05223-1 Rod Snap, 3.5-2Rod Snap, 3.5-2
-
13350-05211-0 Throttle Limiter ArmThrottle Limiter Arm
-
14350-05227-0 Throttle Limiter ShaftThrottle Limiter Shaft
-
15921503-0525 ScrewScrew
-
16930103-0500 NutNut
-
17350-05222-0 Starter Lock RodStarter Lock Rod
-
18309-06972-0 Clamp, 6.5~47.5PClamp, 6.5~47.5P
-
193M2-05215-0 Collar, 6.1-8~4Collar, 6.1-8~4
