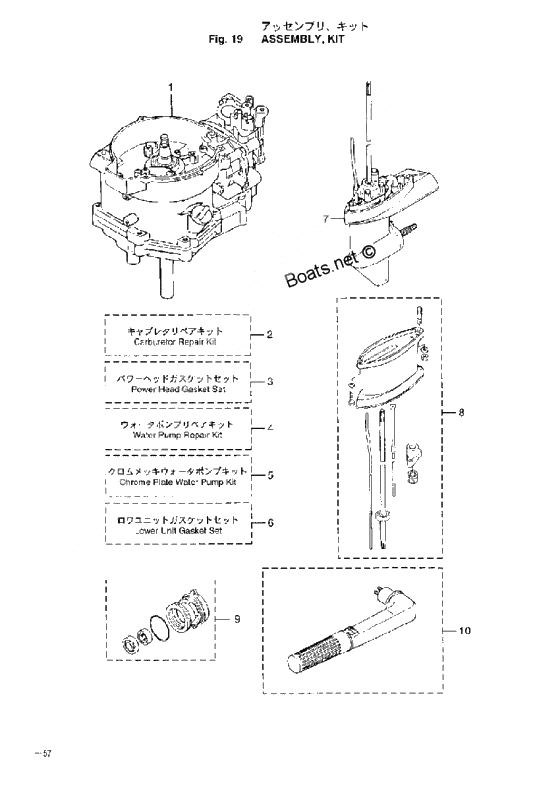

Assembly kit для Tohatsu MFS5B - 2009 года выпуска`
-
№АртикулНазвание
-
13ASB87100-1 Short block kit (4/5/6b/4-str-amb)
F6B/5B/4B-Short block kit (4/5/6b/4-str-amb)
F6B/5B/4B- -
3ASB87090-6 Short block kit (4/5/6b/4-str-amb)Short block kit (4/5/6b/4-str-amb)
-
13R4B87100-0 Engine short block
F6A2/5A2/4A2Engine short block
F6A2/5A2/4A2 -
23H6-03232-0 Aym Pin, FloatAym Pin, Float
-
23H6-03222-0 Gasket,float ChamberGasket,float Chamber
-
2922503-6412 Stud BoltStud Bolt
-
23H6-87122-0 Carburetor Rerair KitCarburetor Rerair Kit
-
23H6-03293-0 O-ring,drain ScrewO-ring,drain Screw
-
23H6-03231-0 FloatFloat
-
23H6-03240-0 Float ValveFloat Valve
-
23H6-03244-0 ClipClip
-
33H6-02306-0 Gasket,exh.portGasket,exh.port
-
3369-01215-0 Oil SealOil Seal
-
33H6-02104-0 O-RingO-Ring
-
33H6-01024-0 Gasket,head CoverGasket,head Cover
-
3369-01214-0 Gasket Crank Case HeadGasket Crank Case Head
-
3334-00122-0 Oil seal 25-40-8Oil seal 25-40-8
-
3346-01032-0 New partNew part
-
33H6-61012-0 Gasket,Drive Shaft HousingGasket,Drive Shaft Housing
-
33H6-07402-0 Gasket, Oil PanGasket, Oil Pan
-
33AS-07432-0 Gasket breather capGasket breather cap
-
33H6-02305-0 Gasket, Exh.plateGasket, Exh.plate
-
33H6-07422-0 New partNew part
-
33AS-87121-0 Power head gasket set 4b/5b/6b
F6B/5B/4B-Power head gasket set 4b/5b/6b
F6B/5B/4B- -
33R1-07605-0 O-ring Oil PumpO-ring Oil Pump
-
3101-00121-0 Oil seal,20-35-7Oil seal,20-35-7
-
33H6-01005-1 Gasket, Cyl. HeadGasket, Cyl. Head
-
3345-66021-0 O-RingO-Ring
-
33H6-02011-0 Gasket, carburetorGasket, carburetor
-
3A3R2-87121-0 Power head gasket set 4a/5a/6a
# 042037XD# 020184XE"Power head gasket set 4a/5a/6a
# 042037XD# 020184XE" -
3R1-87121-0 Power head gasket set 4a/5a/6aPower head gasket set 4a/5a/6a
-
4940113-0600 WasherWasher
-
4369-65022-0 Key water pump impellerKey water pump impeller
-
4369-65011-0 Liner Water Pump CaseLiner Water Pump Case
-
4369-65018-0 Gasket water pump caseGasket water pump case
-
4369-65025-0 Guide Plate Water PumpGuide Plate Water Pump
-
4369-65029-0 Gasket Pump Guide PlateGasket Pump Guide Plate
-
4369-87322-1 New partNew part
-
4369-65020-0 Gasket Water Pump Case LowerGasket Water Pump Case Lower
-
4369-65021-1 Крыльчатка водной помпыКрыльчатка водной помпы
-
5369-65231-0 Chrome Plated Water Pump KitChrome Plated Water Pump Kit
-
5369-65238-0 Liner chrome plated water pump caseLiner chrome plated water pump case
-
5369-65239-0 Guide plate chrome plated water pumpGuide plate chrome plated water pump
-
6369-60111-0 Oil SealOil Seal
-
6345-65015-0 O-RingO-Ring
-
6369-60223-0 Oil SealOil Seal
-
6369-66021-1 O?????2.5-4.9O?????2.5-4.9
-
6332-66032-0 O?????2.4-15.4O?????2.4-15.4
-
6369-87321-0 Lower Unit Gasket SetLower Unit Gasket Set
-
6332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
7369Q87301-3 Lower unit s (amb)
for Transom S""Lower unit s (amb)
for Transom S"" -
369Q87301-4 Lower unit s (amb)Lower unit s (amb)
-
7369Q87302-2 Lower unit l (amb)
for Transom L""Lower unit l (amb)
for Transom L"" -
369Q87302-3 Lower unit l (amb)Lower unit l (amb)
-
8369-65120-0 Water Pipe ULWater Pipe UL
-
83ASQ87314-0 Extension housing kit ul (amb)Extension housing kit ul (amb)
-
8369Q61110-1 Extension housing ul (amb)Extension housing ul (amb)
-
8916113-0625 BoltBolt
-
83AS-64331-0 Drive shaft bushing assy (amb)Drive shaft bushing assy (amb)
-
8369-64303-0 Drive Shaft ULDrive Shaft UL
-
8369-66014-1 Cam Rod ULCam Rod UL
-
369-66014-2 Cam Rod ULCam Rod UL
-
9369Q87323-1 Propeller shaft housing assy (amb)Propeller shaft housing assy (amb)
-
103H6Q63010-0 Tiller handle sub-assy (amb)Tiller handle sub-assy (amb)
-
3ASQ63005-0 Tiller handle sub-assy (amb)Tiller handle sub-assy (amb)
