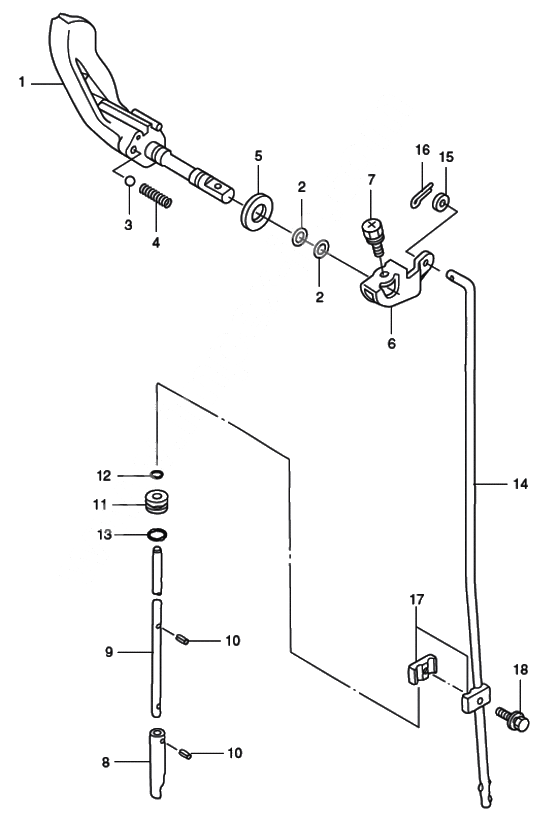

Shift для Tohatsu MFS3.5B - 2009 года выпуска`
-
№АртикулНазвание
-
13AB-66130-0 Shift lever f2.5a/3.5aShift lever f2.5a/3.5a
-
2345-66021-0 O-RingO-Ring
-
3369-66116-0 Ceramic Ball 7.7Ceramic Ball 7.7
-
4369-66112-1 Spring Shift Lever StopperSpring Shift Lever Stopper
-
5332-61315-0 WasherWasher
-
63AB-66225-0 Shift Rod LeverShift Rod Lever
-
7910903-6512 BoltBolt
-
83F0-66011-0 Clutch CamClutch Cam
-
93F0-66012-0 Cam rod s
FOR TRANSOM SCam rod s
FOR TRANSOM S -
93F0-66013-0 Cam Rod L
FOR TRANSOM LCam Rod L
FOR TRANSOM L -
10951407-0308 Spring WasherSpring Washer
-
113F0-66031-0 Bushing Cam RodBushing Cam Rod
-
12369-66021-1 O?????2.5-4.9O?????2.5-4.9
-
13301-66023-0 O-RingO-Ring
-
143AB-66214-0 Shift RodShift Rod
-
15940103-0600 WasherWasher
-
16951503-0212 Split PinSplit Pin
-
17369-66241-0 Joint Shift RodJoint Shift Rod
-
18910103-5616 BoltBolt
Все узлы модели:
- Assembly kit
- Camshaft & valve
- Carburetor
- Clamp bracket & swivel bracket
- Cowl
- Cylinder-crankcase
- Drive shaft housing & gear case
- Gear case (drive shaft)
- Gear case (propeller shaft)
- Integral fuel tank
- Magneto
- Oil pan
- Optional parts & accessories
- Piston & crank shaft
- Recoil starter
- • Shift
- Tiller handle & throttle
