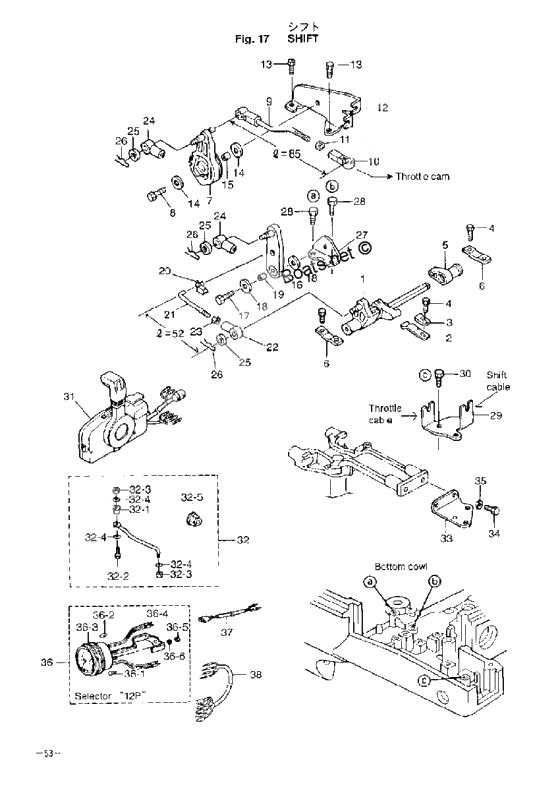

Shift для Tohatsu MFS30B - 2009 года выпуска`
-
№АртикулНазвание
-
13R0-66130-0 Shift Lever Shaft Ass'yShift Lever Shaft Ass'y
-
23C8-66112-0 Stopper shift leverStopper shift lever
-
33C8-66116-0 Plate Shift LeverPlate Shift Lever
-
4910113-5612 Bolt
7 For MF & EF 5 For EP & EPTBolt
7 For MF & EF 5 For EP & EPT -
53R0-66225-0 Lever,Shift RodLever,Shift Rod
-
63R3-66145-0 Plate, Shift Lever Shaft
3 For MF & EF 2 For EP & EPTPlate, Shift Lever Shaft
3 For MF & EF 2 For EP & EPT -
73AC-63622-0 Throttle drumThrottle drum
-
93AC-63610-0 Throttle link rod assyThrottle link rod assy
-
103B7-05243-0 New partNew part
-
11930103-0500 NutNut
-
123AC-63508-0 Throttle cable bracketThrottle cable bracket
-
143C8-66308-0 New part
or 3C8-66308-0New part
or 3C8-66308-0 -
15353-76079-0 Collar 6.2-9-9.3Collar 6.2-9-9.3
-
163AC-66122-0 Shift arm (remote control)
For EP & EPTShift arm (remote control)
For EP & EPT -
183C8-66308-0 New part
or 3C8-66308-0New part
or 3C8-66308-0 -
19353-76079-0 Collar 6.2-9-9.3
For EP & EPTCollar 6.2-9-9.3
For EP & EPT -
203C8-63733-0 Rod Snap 5-3
For EP & EPTRod Snap 5-3
For EP & EPT -
213R0-63709-0 Link Rod
For EP & EPTLink Rod
For EP & EPT -
223R0-83715-0 Cable Joint
For EP & EPTCable Joint
For EP & EPT -
23930103-0500 Nut
For EP & EPTNut
For EP & EPT -
243B7-83715-1 Cable Joint
For EP & EPTCable Joint
For EP & EPT -
3B7-83715-2 Cable JointCable Joint
-
253AA-83719-0 Washer
For EP & EPTWasher
For EP & EPT -
26951603-0800 R-Pin
For EP & EPTR-Pin
For EP & EPT -
273R0-66126-0 Bracket,Shift Arm
For EP & EPTBracket,Shift Arm
For EP & EPT -
293R0-83820-0 Bracket,Cable
For EP & EPTBracket,Cable
For EP & EPT -
313B7Q84340-2 Rc box rc5b (mfs-15/18b2-15/20c-25b/30b ep) w/o ptt amb
For EP & EPTRc box rc5b (mfs-15/18b2-15/20c-25b/30b ep) w/o ptt amb
For EP & EPT -
3B7Q84340-3 Rc box rc5b (mfs-15/18b2-15/20c-25b/30b ep) w/o ptt ambRc box rc5b (mfs-15/18b2-15/20c-25b/30b ep) w/o ptt amb
-
323E0-84905-0 Drag link assy
For EP & EPTDrag link assy
For EP & EPT -
32-13E0-84914-0 Spacer Drag Link H
For EP & EPTSpacer Drag Link H
For EP & EPT -
32-23E0-84917-0 Bolt 3/8-50
For EP & EPTBolt 3/8-50
For EP & EPT -
32-3353-84918-0 Nylon Nut 3/8
For EP & EPTNylon Nut 3/8
For EP & EPT -
32-4353-84916-0 Washer
For EP & EPTWasher
For EP & EPT -
32-53F3-84908-0 Seal Ring Drag Link
For EP & EPTSeal Ring Drag Link
For EP & EPT -
333R0-83830-0 Steetring Hook Plate
For EP & EPTSteetring Hook Plate
For EP & EPT -
34910103-1030 Bolt
For EP & EPTBolt
For EP & EPT -
363N8-72640-1 Tachometer Ass'y
Option for EP & EPTTachometer Ass'y
Option for EP & EPT -
36-13B7-72658-0 Bulb, Meter 12V-1.7W
For EP & EPTBulb, Meter 12V-1.7W
For EP & EPT -
36-23B7-72659-0 Bulb, Meter 12V-1.7W
For EP & EPTBulb, Meter 12V-1.7W
For EP & EPT -
36-33B7-72656-0 Damper, Meter
For EP & EPTDamper, Meter
For EP & EPT -
36-43B7-72661-0 Plate, Fitting
For EP & EPTPlate, Fitting
For EP & EPT -
36-5930203-0500 Nut
For EP & EPTNut
For EP & EPT -
36-6941303-0500 Spring Washer
For EP & EPTSpring Washer
For EP & EPT -
37361-72539-0 Lead Wire Tachometer
Length: 6000 Option For EPLead Wire Tachometer
Length: 6000 Option For EP -
383R0-72537-1 Read Wire,Meter
Length: 2000 Option For EPTRead Wire,Meter
Length: 2000 Option For EPT
