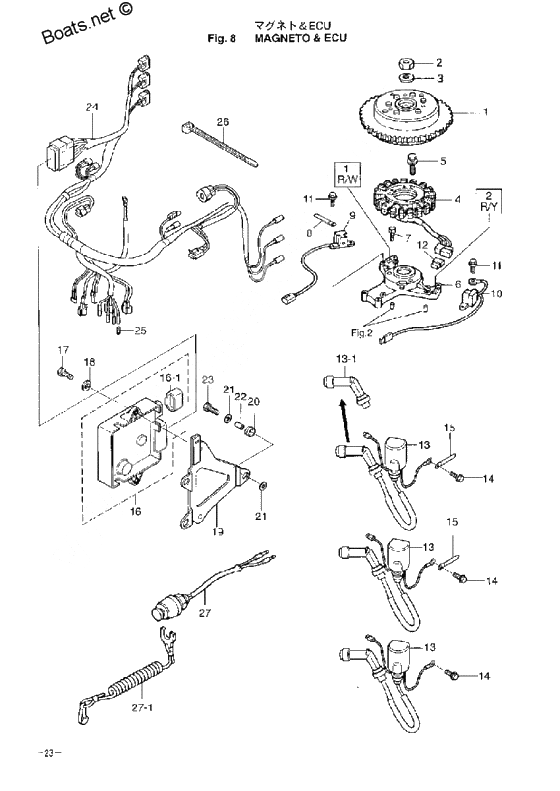

Magneto & ecu для Tohatsu MFS25B - 2009 года выпуска`
-
№АртикулНазвание
-
13R0-06101-1 Flywheel cup
F4T46771 With Ring GearFlywheel cup
F4T46771 With Ring Gear -
2353-00132-0 Nut 18P1.5Nut 18P1.5
-
3353-00133-0 WasherWasher
-
43R0-06123-0 Alternator Ass'yAlternator Ass'y
-
5921521-5625 Stud BoltStud Bolt
-
63R0-06008-0 Bracket CoilBracket Coil
-
8309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
103R0-06141-0 Pulser coil #1Pulser coil #1
-
113R0-06142-0 Pulser coil#2Pulser coil#2
-
113T5-06921-0 Plug cap(with resistance)
With ResistancePlug cap(with resistance)
With Resistance -
123R0-06143-0 Pulser coil#3Pulser coil#3
-
13921503-5616 Stud BoltStud Bolt
-
143R0-06160-0 C.d.unitC.d.unit
-
153R0-06167-1 Cord ass'y a c.d unitCord ass'y a c.d unit
-
163R0-06168-0 Cord b,c.d.unitCord b,c.d.unit
-
173A3-76037-0 Plug B Cable TerminalPlug B Cable Terminal
-
183AC-06469-0 Ignition CoilIgnition Coil
-
203T4-06972-0 Плата струбциныПлата струбцины
-
22398-06830-0 Safety Switch Ass'ySafety Switch Ass'y
-
22-1353-06821-0 Lock, lanyard stop switchLock, lanyard stop switch
Все узлы модели:
- Assembly kit
- Bottom cowl
- Bracket, ptt & gas assistant
- Camshaft & oil pump
- Clamp bracket & reverse lock
- Cylinder head
- Cylinder
- Drive shaft & water pump
- Drive shaft housing
- Electric parts
- Fuel pump, fuel rail & vapor separator
- Gear case
- Intake manifold & throttle body
- Intank valve & exhaust valve
- • Magneto & ecu
- Optional parts, accessories
- Piston & crank shaft
- Power trim & tilt
- Recoil starter
- Separate fuel tank
- Shift & cam rod
- Shift
- Starter motor
- Steering handle, tiller handle
- Stern bracket & reverse lock
- Swivel bracket, manual type
- Top cowl
