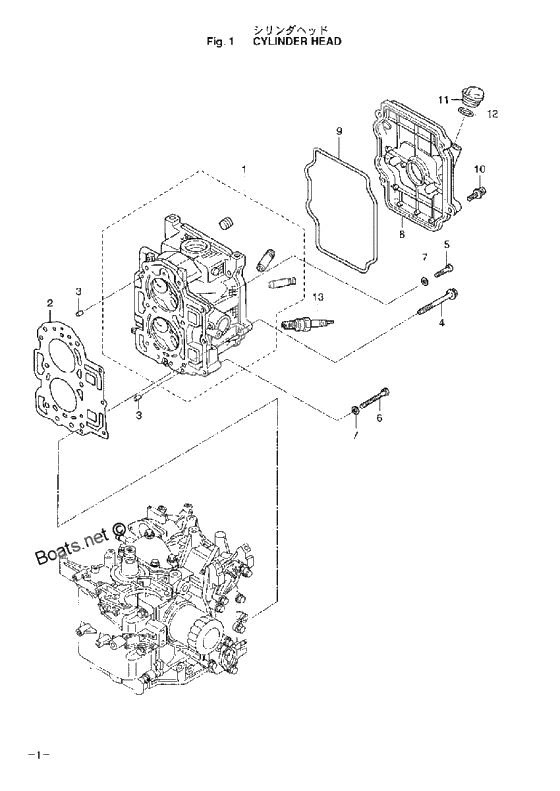

Cylinder head для Tohatsu MFS15C - 2009 года выпуска`
-
№АртикулНазвание
-
13BKB01001-0 Cylinder head f15c/f20cCylinder head f15c/f20c
-
23BJ-01005-0 Gasket cylinder head f15c/f20cGasket cylinder head f15c/f20c
-
3345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
43H8-01013-0 Bolt, Cylinder Head 8-60
01.08.1960 0:00:00Bolt, Cylinder Head 8-60
01.08.1960 0:00:00 -
83BKB01021-0 Cylinder head cover f15c/f20c
Old Parts No. 3H8B01021-0Cylinder head cover f15c/f20c
Old Parts No. 3H8B01021-0 -
93BJ-01024-0 Cylinder head cover gasket
Ruber Old Part No.3H8-01024-0Cylinder head cover gasket
Ruber Old Part No.3H8-01024-0 -
113R0-71015-0 Filler Cap,Engine OilFiller Cap,Engine Oil
-
123R0-07422-0 New partNew part
