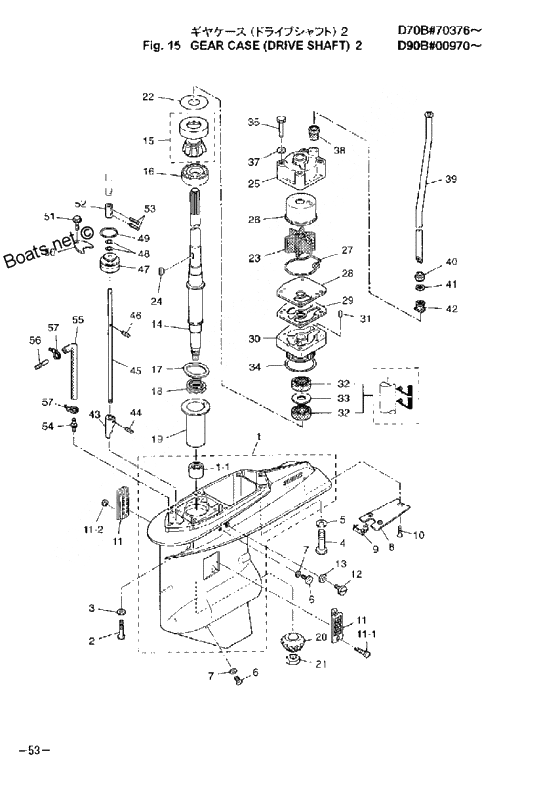

Gear case (drive shaft) 2 d90b#00970- для Tohatsu MD90B - 2009 года выпуска`

№

Артикул

Название
1

3C7S60000-5 Gear case ass'y
70B # 70376-, 90B # 00970-

Gear case ass'y
70B # 70376-, 90B # 00970-

20 ₽
1-1

3C7-60211-1 Needle Bearing 28.6-38.1-3

Needle Bearing 28.6-38.1-3

6 140 ₽
4

3B7-60001-2 Bolt, 10-40

Bolt, 10-40

340 ₽
6

332-60005-2 Oil Plug Water Plug

Oil Plug Water Plug

1 050 ₽
7

332-60006-0 Gasket (8.1x15.1)

Gasket (8.1x15.1)

200 ₽
8

3B7-60012-1 Plate, Gear Case

Plate, Gear Case

1 360 ₽
9

3B7-60013-0 Hole Plug, Gear Case

Hole Plug, Gear Case

510 ₽
11

3C7-60235-1 Water Strainer Set

Water Strainer Set

4 440 ₽
11-1

921503-0445 Stud Bolt

Stud Bolt

120 ₽
11-2

930403-0400 Nylon Nut

Nylon Nut

210 ₽
12

3B7-60015-1 Water Plug

Water Plug

420 ₽
13

3B7-60016-0 O-Ring

O-Ring

100 ₽
14

3C7-64302-2 Drive shaft l
70B # 70376-, 90B # 00970-

Drive shaft l
70B # 70376-, 90B # 00970-

49 040 ₽
14

3C7-64303-2 Drive Shaft UL
70B # 70376-, 90B # 00970-

Drive Shaft UL
70B # 70376-, 90B # 00970-

50 780 ₽
15

3C7-60213-0 Bearing 0506
70B # 70376-, 90B # 00970-

Bearing 0506
70B # 70376-, 90B # 00970-

2 980 ₽
16

3C7-60214-0 Bearing 16007
70B # 70376-, 90B # 00970-

Bearing 16007
70B # 70376-, 90B # 00970-

1 530 ₽
17

3C7-60210-0 Wave Washer D=47.2
70B # 70376-, 90B # 00970-

Wave Washer D=47.2
70B # 70376-, 90B # 00970-

340 ₽
18

3C7-64327-0 Spring Drive Shaft
70B # 70376-, 90B # 00970-

Spring Drive Shaft
70B # 70376-, 90B # 00970-

440 ₽
19

3C7-64328-0 Guide Drive Shaft Spring
70B # 70376-, 90B # 00970-

Guide Drive Shaft Spring
70B # 70376-, 90B # 00970-

660 ₽
20

3B7-64020-0 New part

New part

7 740 ₽
21

3B7-64027-0 Nut, Bevel Gear B

Nut, Bevel Gear B

1 450 ₽
22

353-64014-0 Shim, 52-60.5-0.3

Shim, 52-60.5-0.3

390 ₽
22

353-64015-0 Shim,52-60.5-0.15

Shim,52-60.5-0.15

420 ₽
22

353-64016-0 Shim,52-60.5-0.1

Shim,52-60.5-0.1

480 ₽
23

3C7-65021-1 Impeller water pump

Impeller water pump

6 940 ₽
24

3B7-65022-0 Key, water pump impeller

Key, water pump impeller

1 360 ₽
25

3C7-65016-0 Water Pump Case

Water Pump Case

3 320 ₽
26

3C7-65011-0 Liner Water Pump Case

Liner Water Pump Case

1 170 ₽
27

3C7-65018-0 Seal Water Pump Case

Seal Water Pump Case

410 ₽
28

3C7-65025-0 Guide Plate Water Pump

Guide Plate Water Pump

1 030 ₽
29

3C7-65029-0 Gasket Pump Guide Plate

Gasket Pump Guide Plate

330 ₽
30

3C7-65017-2 Pump Case Lower

Pump Case Lower

6 330 ₽
31

334-65012-0 Стопор

Стопор

720 ₽
32

3C7-60223-1 Oil seal, 22-42-7

Oil seal, 22-42-7

1 430 ₽
33

346-64084-0 Shim, 35-41.9-0.5

Shim, 35-41.9-0.5

950 ₽
34

3B7-65015-0 O-Ring

O-Ring

660 ₽
38

3C7-65014-0 Lower Seal Rubber Water Pipe

Lower Seal Rubber Water Pipe

190 ₽
39

3C7-65110-0 Water Pipe L
for Transom L""

Water Pipe L
for Transom L""

1 650 ₽
39

3C7-65120-0 Water Pipe UL
for Transom UL""

Water Pipe UL
for Transom UL""

1 840 ₽
40

3C7-65206-0 Upper Seal Rubber Water Pipe

Upper Seal Rubber Water Pipe

210 ₽
41

345-65205-0 Collar, 18-20-4.5

Collar, 18-20-4.5

400 ₽
42

3C7-65204-0 Locking Rubber Water Pipe

Locking Rubber Water Pipe

210 ₽
43

3B7-66011-1 Clutch Cam

Clutch Cam

3 650 ₽
44

951403-3516 New part

New part

120 ₽
45

3B7-66014-1 Cam Rod UL
for Transom UL""

Cam Rod UL
for Transom UL""

2 300 ₽
45

3B7-66013-1 Cam Rod L
for Transom L""

Cam Rod L
for Transom L""

2 090 ₽
46

951403-3510 New part

New part

150 ₽
47

3B7-66031-1 Bushing, Cam Rod / O-Ring,1.9-6.8

Bushing, Cam Rod / O-Ring,1.9-6.8

1 720 ₽
48

345-66021-0 O-Ring

O-Ring

290 ₽
49

3B7-66023-0 O-Ring

O-Ring

570 ₽
50

353-66024-0 Stopper

Stopper

420 ₽
51

910103-6612 Bolt

Bolt

290 ₽
52

353-66241-1 New part

New part

860 ₽
54

3C7-60017-0 Nipple 6-1/8
for Speedometer OPT

Nipple 6-1/8
for Speedometer OPT

260 ₽
56

3C7-60018-0 Золотник
OPT

Золотник
OPT

230 ₽
57

353-84398-0 Band Lead Wire
OPT

Band Lead Wire
OPT

110 ₽
