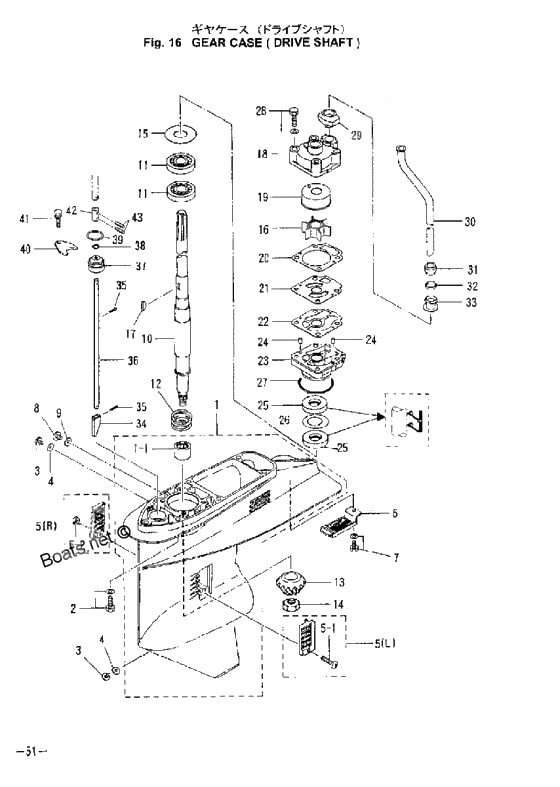

Gear case (drive shaft) для Tohatsu MD50B - 2009 года выпуска`
-
№АртикулНазвание
-
13C8S60000-0 Gear case ass'y
for Transom S,L&LLGear case ass'y
for Transom S,L&LL -
13C8S60090-0 Gear case ass'y
for Transom ULGear case ass'y
for Transom UL -
1-1345-60211-0 Needle Bearing 22-30-30Needle Bearing 22-30-30
-
3332-60005-2 Oil Plug Water PlugOil Plug Water Plug
-
4332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
53C8-60235-1 Water Strainer SetWater Strainer Set
-
5-1921503-0438 Stud BoltStud Bolt
-
63C8-60204-0 Sub Water StrainerSub Water Strainer
-
83B7-60015-1 Water PlugWater Plug
-
93B7-60016-0 O-RingO-Ring
-
103C8-64304-0 Drive shaft ll
for Transom LLDrive shaft ll
for Transom LL -
103C8-64303-0 Drive Shaft UL
for Transom ULDrive Shaft UL
for Transom UL -
103C8-64301-0 Drive Shaft S
for Transom SDrive Shaft S
for Transom S -
103C8-64302-0 Drive shaft l
for Transom LDrive shaft l
for Transom L -
113C8-60213-0 Ball Bearing 6304Ball Bearing 6304
-
123C8-64327-0 Spring Drive ShaftSpring Drive Shaft
-
133C8-64020-2 New partNew part
-
143C8-64027-0 Nut Bevel Gear BNut Bevel Gear B
-
15345-64082-0 Shim,41-51.5-0.15Shim,41-51.5-0.15
-
15345-64083-0 Shim,41-51.5-0.3Shim,41-51.5-0.3
-
15345-64084-0 Shim,41-51.5-0.5Shim,41-51.5-0.5
-
15345-64081-0 Shim, 41-51.5-0.1Shim, 41-51.5-0.1
-
163C8-65021-2 Impeller water pumpImpeller water pump
-
17332-65022-0 Key, pump impellerKey, pump impeller
-
183T5-65016-0 Water Pump CaseWater Pump Case
-
193T5-65011-0 Liner, Water Pump CaseLiner, Water Pump Case
-
203T5-65018-0 Gasket, Water Pump CaseGasket, Water Pump Case
-
213C8-65025-0 GUIDE PLATE,PUMPGUIDE PLATE,PUMP
-
223C8-65029-0 Gasket, pump guide plateGasket, pump guide plate
-
233C8-65017-1 Lower Water Pump CaseLower Water Pump Case
-
24334-65012-0 СтопорСтопор
-
253C8-60223-0 Packing 17-33-6Packing 17-33-6
-
263C8-64084-0 Shim,32.9-26-0.5Shim,32.9-26-0.5
-
27345-65015-0 O-RingO-Ring
-
293C8-65014-0 Lower Seal Rubber Water PipeLower Seal Rubber Water Pipe
-
303C8-65120-0 Water Pipe UL
for Transom ULWater Pipe UL
for Transom UL -
303C8-65100-0 Water pipe s
for Transom SWater pipe s
for Transom S -
303C8-65110-0 Water Pipe L
for Transom LWater Pipe L
for Transom L -
303C8-65130-0 Water pipe ll
for Transom LLWater pipe ll
for Transom LL -
31345-65206-0 Upper Seal Rubber Water PipeUpper Seal Rubber Water Pipe
-
32345-65205-0 Collar, 18-20-4.5Collar, 18-20-4.5
-
33346-65204-0 Lock Rubber Water PipeLock Rubber Water Pipe
-
343C8-66011-0 Clutch CamClutch Cam
-
35951407-0312 Spring WasherSpring Washer
-
363C8-66012-0 Cam rod s
for Transom SCam rod s
for Transom S -
363C8-66013-0 Cam Rod L
for Transom LCam Rod L
for Transom L -
363C8-66015-0 Cam rod ll
for Transom LLCam rod ll
for Transom LL -
363C8-66014-0 Cam Rod UL
for Transom ULCam Rod UL
for Transom UL -
373C8-66031-1 Bushing Cam RodBushing Cam Rod
-
38332-66021-0 O-RingO-Ring
-
393C8-66032-0 O-RingO-Ring
-
40353-66024-0 StopperStopper
-
41910103-6612 BoltBolt
-
423C8-66241-0 Joint Shift RodJoint Shift Rod
-
43951403-0312 Spring WasherSpring Washer
