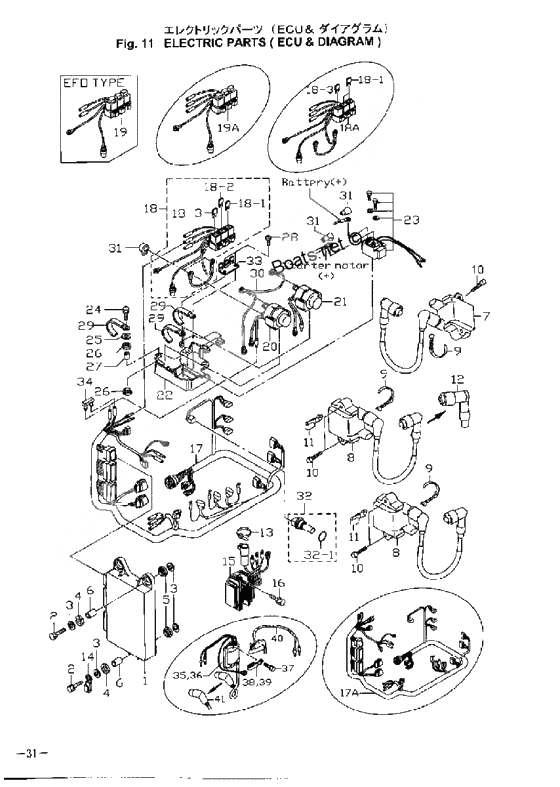

Electric parts (ecu & diagram) для Tohatsu MD40B - 2009 года выпуска

  • №
    Артикул
    Название
  • 1
    3Z4-06401-0 Ecu(40)
    Label 3Z403AA, #011601XC-
    Ecu(40)
    Label 3Z403AA, #011601XC-
  • 1
    3T4-06401-0 Ecu(40)
    Label 3T402AC, -#006249
    Ecu(40)
    Label 3T402AC, -#006249
  • 2
    910103-6630 Bolt
    Bolt
  • 3
    346-67115-0 Washer
    Washer
  • 4
    346-67113-0 Mount Rubber
    Mount Rubber
  • 5
    3B7-06920-0 Mount Rubber, 8.5-14-2.5
    Mount Rubber, 8.5-14-2.5
  • 6
    3T5-67114-0 Spacer, 6.2-9-16.6
    Spacer, 6.2-9-16.6
  • 7
    3Z5-06469-0 Ignition Coil Ass'y #1
    #011601XC-
    Ignition Coil Ass'y #1
    #011601XC-
  • 8
    3Z5-06470-0 Ignition Coil Ass'y #2.3
    #011601XC-
    Ignition Coil Ass'y #2.3
    #011601XC-
  • 9
    369-84398-0 Band Lead Wire,158
    Band Lead Wire,158
  • 11
    398-06972-0 Clamp,6.5-67P
    Clamp,6.5-67P
  • 12
    3H6-06999-0 Plug Cap (Registance)
    Plug Cap (Registance)
  • 13
    3T5-84398-0 Band Lead Wire 104
    Band Lead Wire 104
  • 14
    309-06972-0 Clamp,6.5-47.5P
    Clamp,6.5-47.5P
  • 15
    3T5-76060-0 Rectifier complete
    Rectifier complete
  • 17
    3Z5-76110-0 Cord ass'y a
    #011601XC-
    Cord ass'y a
    #011601XC-
  • 17A
    3T5-76110-0 Cord ass'y
    -#006249XC
    Cord ass'y
    -#006249XC
  • 18
    3T9-76062-0 Fuse holder ass'y
    #011601XC-
    Fuse holder ass'y
    #011601XC-
  • 18-1
    3T5-76246-0 Предохранитель
    Предохранитель
  • 18-2
    3T5-76248-0 Предохранитель
    #011601XC-
    Предохранитель
    #011601XC-
  • 18-3
    3T5-76249-0 Предохранитель
    Предохранитель
  • 19
    3Z5-76066-0 Fuse Holder B Ass'y
    #011601XC-
    Fuse Holder B Ass'y
    #011601XC-
  • 19A
    3T5-76066-0 Fuse Holder B Ass'y
    -#006249XC
    Fuse Holder B Ass'y
    -#006249XC
  • 20
    3C8-72580-0 Solenoid switch a, ptt (up)
    UP, for PTT Type
    Solenoid switch a, ptt (up)
    UP, for PTT Type
  • 21
    3C8-72581-0 Solenoid switch b, ptt (dn)
    DN, for PTT Type
    Solenoid switch b, ptt (dn)
    DN, for PTT Type
  • 22
    3T5-72585-0 Bracket, Solenoid Switch
    Bracket, Solenoid Switch
  • 23
    3H8-76040-0 Starter Solenoid
    Starter Solenoid
  • 24
    910103-6625 Bolt
    Bolt
  • 25
    3C8-66308-0 New part
    or 3R0-66308-0
    New part
    or 3R0-66308-0
  • 26
    3F3-06920-0 Mount Rubber 9-12-2
    Mount Rubber 9-12-2
  • 27
    3T5-76079-0 Spacer, 6.2-9-10.7
    Spacer, 6.2-9-10.7
  • 28
    3T5-06437-0 Tapping Screw, 6-16
    Tapping Screw, 6-16
  • 29
    3T4-06972-0 Плата струбцины
    Плата струбцины
  • 30
    3T5-76142-0 Ground cord
    for PTT Type
    Ground cord
    for PTT Type
  • 31
    3A3-76145-0 Cap Starter Terminal
    for PTT Type
    Cap Starter Terminal
    for PTT Type
  • 32
    3Y9-72514-0 Water Temperature Sensor
    #011601XC-
    Water Temperature Sensor
    #011601XC-
  • 32
    3T4-72514-0 Water Temperature Sensor
    -#006249XC
    Water Temperature Sensor
    -#006249XC
  • 32-1
    3T5-72509-0 O-Ring
    -#006249XC
    O-Ring
    -#006249XC
  • 32-1
    3G9-66136-0 O-Ring
    #011601XC-
    O-Ring
    #011601XC-
  • 33
    3T9-76064-0 Stay, Fuse Holder
    Stay, Fuse Holder
  • 34
    353-76037-0 Plug Cable Terminal
    Plug Cable Terminal
  • 35
    3T5-06171-1 Ignition coil #1
    -#006249XC
    Ignition coil #1
    -#006249XC
  • 36
    3T5-06173-1 Ignition coil #2, #3
    -#006249XC
    Ignition coil #2, #3
    -#006249XC
  • 40
    3T5-06173-1 Ignition coil #2, #3
    Ignition Coil #1, -#006249XC
    Ignition coil #2, #3
    Ignition Coil #1, -#006249XC
  • 41
    3T5-06921-0 Plug cap(with resistance)
    -#006249XC
    Plug cap(with resistance)
    -#006249XC
