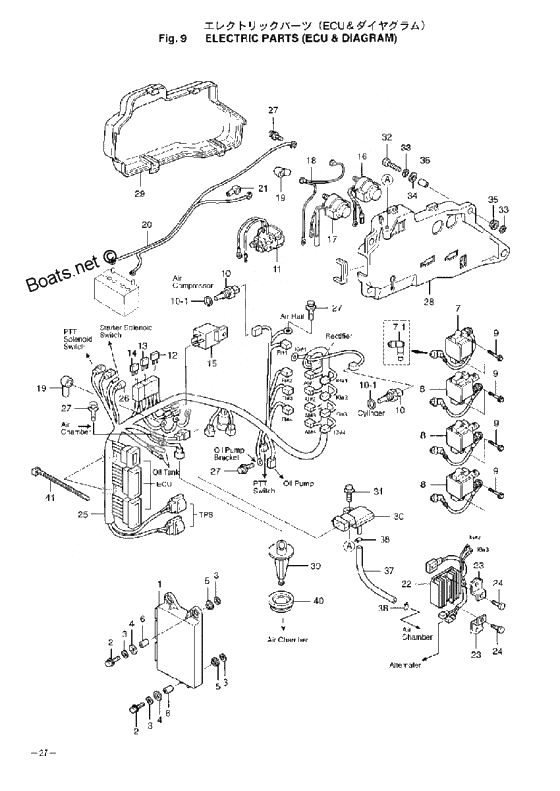

Electric parts (ecu & diagram) для Tohatsu MD115A - 2009 года выпуска`
-
№АртикулНазвание
-
13T1-06401-0 Ecu (md115)Ecu (md115)
-
2910103-6630 BoltBolt
-
3346-67115-0 WasherWasher
-
4346-67113-0 Mount RubberMount Rubber
-
53B7-06920-0 Mount Rubber, 8.5-14-2.5Mount Rubber, 8.5-14-2.5
-
63T5-67114-0 Spacer, 6.2-9-16.6Spacer, 6.2-9-16.6
-
73T1-06470-0 Ignition coil #1Ignition coil #1
-
7-13T1-06999-0 Plug cap (with resistance)Plug cap (with resistance)
-
83T1-06469-0 Ignition coil #2 #3 & #4Ignition coil #2 #3 & #4
-
103Y9-72514-0 Water Temperature SensorWater Temperature Sensor
-
10-13G9-66136-0 O-RingO-Ring
-
113H8-76040-0 Starter SolenoidStarter Solenoid
-
123T5-76246-0 ПредохранительПредохранитель
-
133T5-76248-0 ПредохранительПредохранитель
-
143T5-76249-0 ПредохранительПредохранитель
-
153T1-06330-0 RelayRelay
-
163AC-72580-0 Ptt solenoid switch inain
UPPtt solenoid switch inain
UP -
173AC-72581-0 Ptt solenoid switch
DNPtt solenoid switch
DN -
183T5-76142-1 Cord a solenoid switchCord a solenoid switch
-
3T5-76142-0 Cord a solenoid switchCord a solenoid switch
-
193A3-76145-0 Cap Starter TerminalCap Starter Terminal
-
203B7-76120-0 Battery Cord
L=3000Battery Cord
L=3000 -
213B7-76145-0 Terminal CapTerminal Cap
-
223T1-76060-0 3t1760602m3t1760602m
-
3T1-76060-2 3t1760602m3t1760602m
-
233T1-07233-1 Rectifier plateRectifier plate
-
243AB-60001-0 Bolt 6-30 precoatedBolt 6-30 precoated
-
3AB-60001-1 Bolt 6-30 precoatedBolt 6-30 precoated
-
253T1-76110-0 Cord assy a (d115)Cord assy a (d115)
-
263T5-76037-0 Plug Cable TerminalPlug Cable Terminal
-
283T1-72593-0 Bracket solenoid switch
with Rubber ProtectorBracket solenoid switch
with Rubber Protector -
293T1-06902-0 Cover solenoid switch bracketCover solenoid switch bracket
-
303AC-10214-0 Map sensorMap sensor
-
313T1-06437-0 Tapping screw 6-25Tapping screw 6-25
-
333C8-66308-0 New partNew part
-
36346-67114-0 Spacer 6.2-9-15.7Spacer 6.2-9-15.7
-
38338-01133-0 ClipClip
-
393AC-10215-0 Mat sensorMat sensor
-
403AC-04319-0 Grommet mat sensorGrommet mat sensor
-
41369-84398-0 Band Lead Wire,158Band Lead Wire,158
