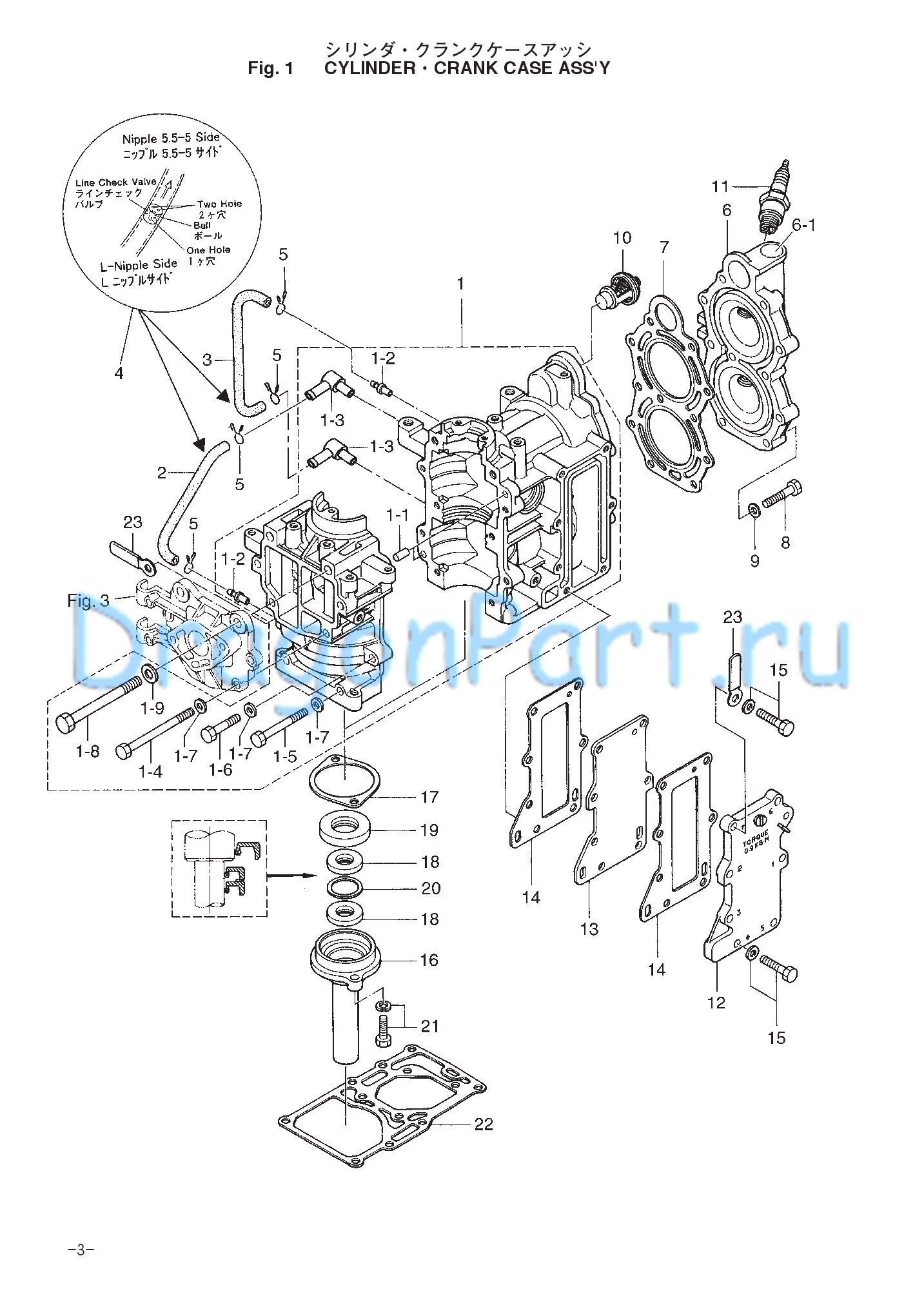

CYLINDER CRANK CASE ASS`Y для Tohatsu M6B - 2009 года выпуска`
-
№АртикулНазвание
-
13B2B01100-2 Cylinder-Crank Case
8B # 77531~ 6B # 53428~Cylinder-Crank Case
8B # 77531~ 6B # 53428~ -
1-1345-01111-0 * Dowel Pin, 6-12* Dowel Pin, 6-12
-
1-2393-01131-0 * Nipple, 5.5-5
9.8B # 18260~ 8B # 77531~, 6B # 53428~* Nipple, 5.5-5
9.8B # 18260~ 8B # 77531~, 6B # 53428~ -
1-3393-01137-0 * L-Nipple (New)
9.8B # 18260~ 8B # 77531~, 6B # 53428~* L-Nipple (New)
9.8B # 18260~ 8B # 77531~, 6B # 53428~ -
1-33B2-01160-0 * Check Valve Nipple (Old)
9.8B~# 18259 8B~# 77350, 6B~# 53427* Check Valve Nipple (Old)
9.8B~# 18259 8B~# 77350, 6B~# 53427 -
1-4916129-0675 * Bolt* Bolt
-
1-5916129-0650 * Bolt* Bolt
-
1-6916129-0630 * Bolt
or 9161190630* Bolt
or 9161190630 -
1-7940121-0600 * Washer* Washer
-
1-8910124-0880 * Bolt* Bolt
-
1-9940121-0800 * Washer* Washer
-
298AL-4-0120 Lubrication Hose
9.8B # 18260~ 8B # 77531~, 6B # 53428~Lubrication Hose
9.8B # 18260~ 8B # 77531~, 6B # 53428~ -
398AL-4-0230 Lubrication Hose
9.8B # 18260~ 8B # 77531~, 6B # 53428~Lubrication Hose
9.8B # 18260~ 8B # 77531~, 6B # 53428~ -
4393-01160-0 Line Check Valve
9.8B # 18260~ 8B # 77531~, 6B # 53428~Line Check Valve
9.8B # 18260~ 8B # 77531~, 6B # 53428~ -
53T5-01133-0 Clip, ©8
9.8B # 18260~ 8B # 77531~, 6B # 53428~Clip, ©8
9.8B # 18260~ 8B # 77531~, 6B # 53428~ -
63B2B01001-1 Cylinder Head
8B # 40401~Cylinder Head
8B # 40401~ -
6-1350-01093-0 * Welch Plug* Welch Plug
-
73B2-01005-0 Cylinder Head GasketCylinder Head Gasket
-
8916119-0630 BoltBolt
-
9940121-0600 WasherWasher
-
10350-01030-1 ThermostatThermostat
-
119701-1-1010 Spark Plug
NGK: BP 7HS10Spark Plug
NGK: BP 7HS10 -
119701-1-1014 Spark Plug ( with Resistance)
NGK: BPR 7HS10Spark Plug ( with Resistance)
NGK: BPR 7HS10 -
123B2B02300-0 Exhaust Cover (Outer)Exhaust Cover (Outer)
-
133B2B02302-0 Exhaust Cover (Inner)Exhaust Cover (Inner)
-
143B2-02305-0 Exhaust Cover GasketExhaust Cover Gasket
-
15910114-5625 BoltBolt
-
163B2-01210-0 Crank Case HeadCrank Case Head
-
173B2-01214-0 Crank Case Head GasketCrank Case Head Gasket
-
183B2-01215-0 Oil Seal, 12-28-5Oil Seal, 12-28-5
-
193B2-00122-0 Oil Seal, 20-40-7Oil Seal, 20-40-7
-
203B2-01217-0 Spacer, 22-27.5-1Spacer, 22-27.5-1
-
21910103-6620 BoltBolt
-
223B2-01303-0 Engine Basement GasketEngine Basement Gasket
-
23309-06972-0 Clamp, 6.5-47.5PClamp, 6.5-47.5P
