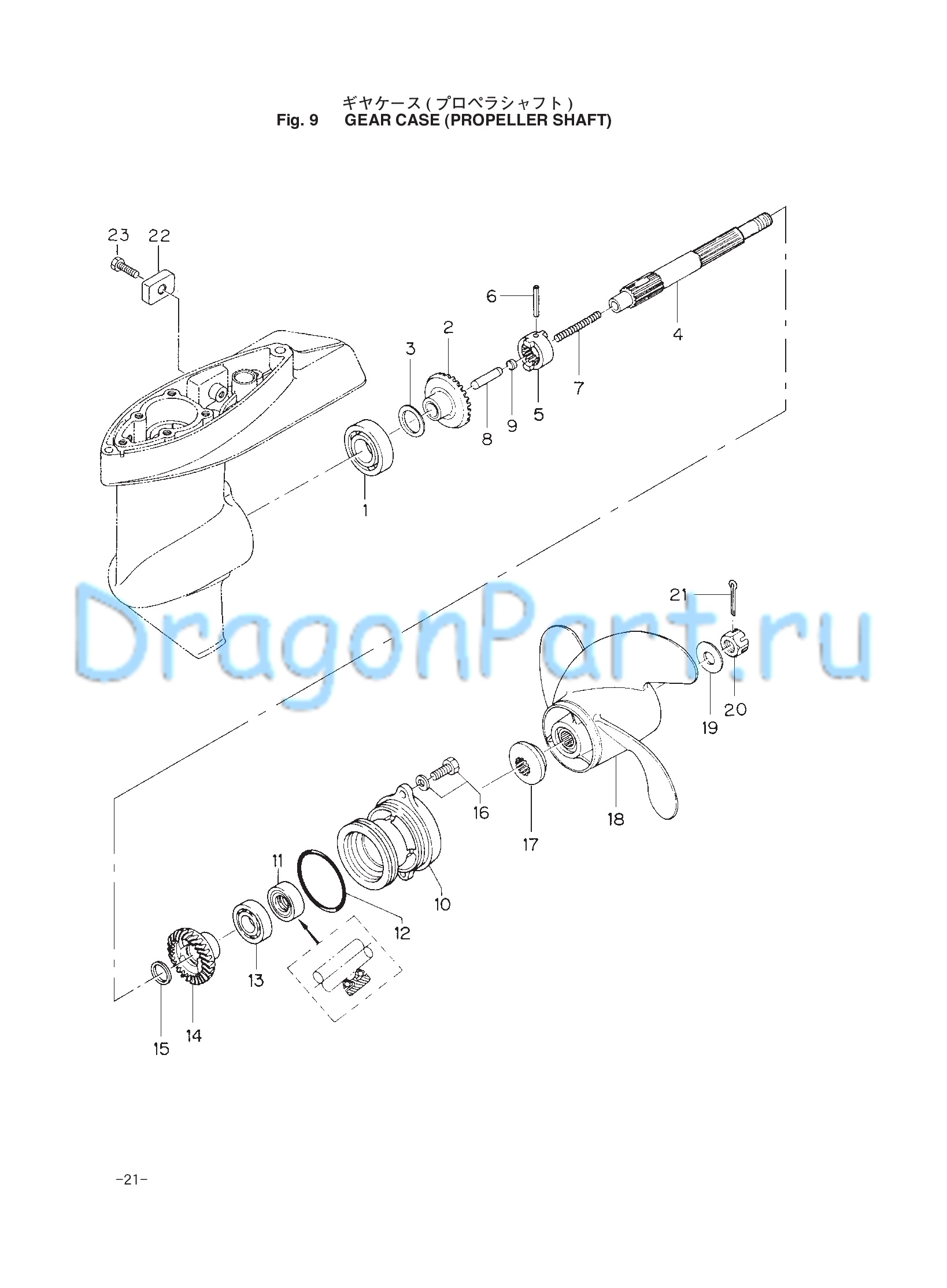

GEAR CASE (PROPELLER SHAFT) для Tohatsu M5B - 2009 года выпуска`
-
№АртикулНазвание
-
19601-0-6004 Ball Bearing, 6004Ball Bearing, 6004
-
2369-64010-2 Bevel Gear “A”Bevel Gear “A”
-
3369-64014-0 Shim, 21-28-0.1Shim, 21-28-0.1
-
3369-64015-0 Shim, 21-28-0.15Shim, 21-28-0.15
-
4369-64211-1 Propeller ShaftPropeller Shaft
-
5301-64215-1 ClutchClutch
-
6301-64217-0 Spring Pin, 3.5-28Spring Pin, 3.5-28
-
7393-64221-0 Clutch SpringClutch Spring
-
8369-64223-0 Clutch Push RodClutch Push Rod
-
9369-64222-0 Clutch Spring RetainerClutch Spring Retainer
-
10369Q60101-1 Propeller Shaft HousingPropeller Shaft Housing
-
11369-60111-0 Oil Seal, 15-28-10Oil Seal, 15-28-10
-
12345-65015-0 O-Ring, 3.2-47O-Ring, 3.2-47
-
139601-0-6002 Ball Bearing, 6002Ball Bearing, 6002
-
14369-64030-2 Bevel Gear “C”Bevel Gear “C”
-
15369-64032-0 Washer, 15.2-19-1.9Washer, 15.2-19-1.9
-
16910113-5616 BoltBolt
-
173AS-64230-0 Propeller Thrust Holder
Old Part No. 369-64231-1Propeller Thrust Holder
Old Part No. 369-64231-1 -
18369W64512-0 Propeller (6), 3X7.9X6.0Propeller (6), 3X7.9X6.0
-
183R1W64514-0 Propeller (7), 3X7.8X7.0
4C STD for Transom “S”, “L”Propeller (7), 3X7.8X7.0
4C STD for Transom “S”, “L” -
183R1W64516-0 Propeller (8), 3X7.8X8.0
5B/5BS STD for Transom “S”,“L”, “UL”Propeller (8), 3X7.8X8.0
5B/5BS STD for Transom “S”,“L”, “UL” -
18369W64518-1 Propeller (9), 3X7.9X9.0Propeller (9), 3X7.9X9.0
-
19369-64124-0 Washer, 10.5-28-2Washer, 10.5-28-2
-
20369-64121-0 Propeller NutPropeller Nut
-
21951503-0318 Split Pin, 3-18Split Pin, 3-18
-
223H6-60218-0 Anode
5B # 16748~ 4C # 80467~Anode
5B # 16748~ 4C # 80467~ -
23910103-0616 BoltBolt
-
24369Q87323-1 Propeller Shaft Housing Ass’vPropeller Shaft Housing Ass’v
-
253H6-87326-0 Propeller Hard Wear KitPropeller Hard Wear Kit
