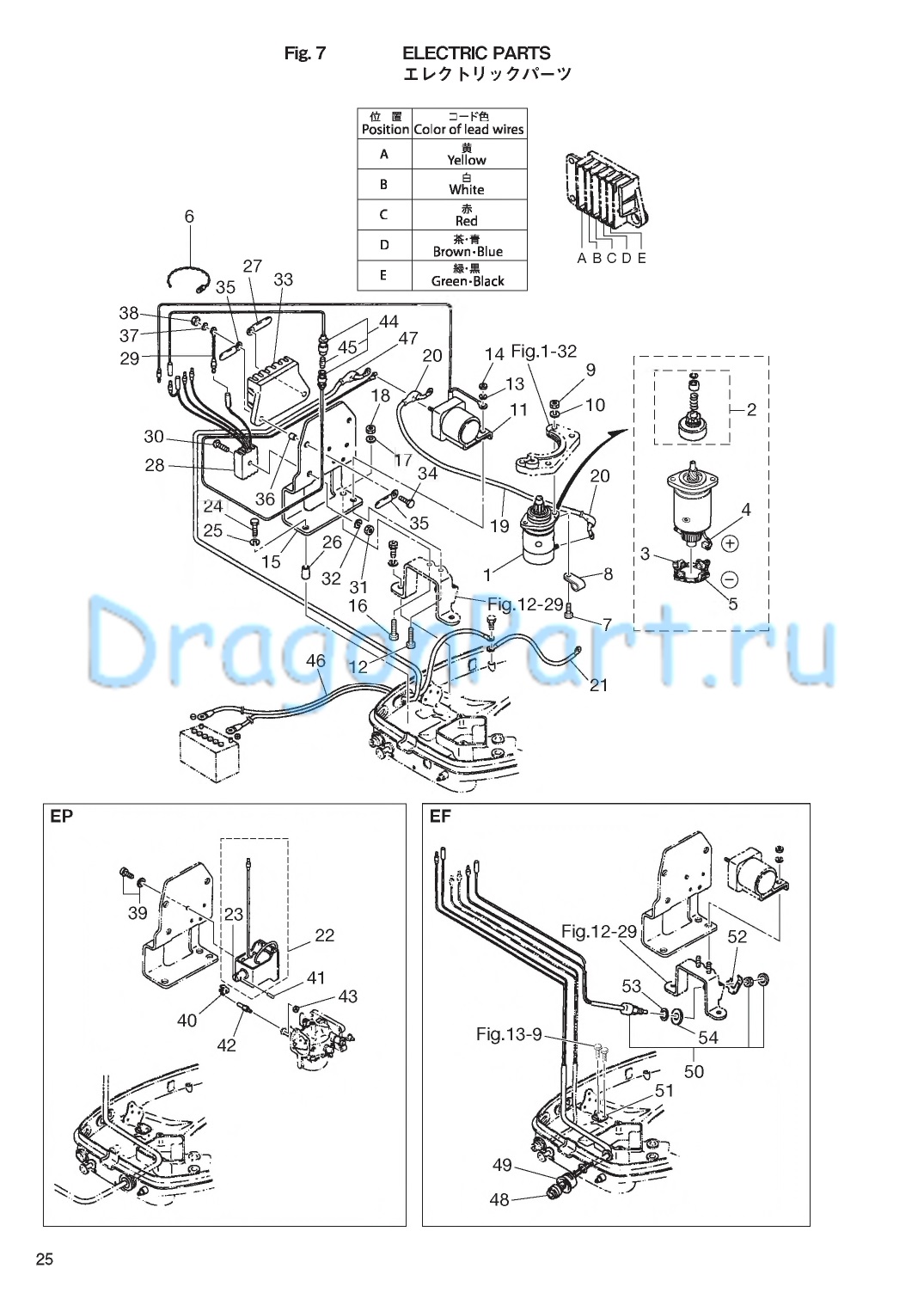

ELECTRIC PARTS для Tohatsu M40C - 2009 года выпуска`
-
№АртикулНазвание
-
1346-76010-0 STARTER MOTOR ASSY
for EF/EP TypeSTARTER MOTOR ASSY
for EF/EP Type -
2346-76015-0 * PINION ASSY* PINION ASSY
-
3346-76014-0 * BRUSH HOLDER* BRUSH HOLDER
-
4346-76012-0 * POSITIVE BRUSH* POSITIVE BRUSH
-
5346-76013-0 * NEGATIVE BRUSH* NEGATIVE BRUSH
-
6336-76091-0 LEAD WIRE BANDLEAD WIRE BAND
-
7910103-0830 BOLT
Starter MotorBOLT
Starter Motor -
8345-06971-0 CLAMP 9-12U
Starter MotorCLAMP 9-12U
Starter Motor -
9930103-0800 NUT
Starter MotorNUT
Starter Motor -
10941303-0800 SPRING WASHER
Starter MotorSPRING WASHER
Starter Motor -
11346-76040-0 STARTER SOLENOIDSTARTER SOLENOID
-
12910103-0618 BOLT
Starter SolenoidBOLT
Starter Solenoid -
13941303-0600 SPRING WASHER
Starter SolenoidSPRING WASHER
Starter Solenoid -
14930103-0600 NUT
Starter SolenoidNUT
Starter Solenoid -
15361-76055-1 CHOKE SOLENOID BRACKETCHOKE SOLENOID BRACKET
-
16910103-0618 BOLT
Choke Solenoid BracketBOLT
Choke Solenoid Bracket -
17941303-0600 SPRING WASHER
Choke Solenoid BracketSPRING WASHER
Choke Solenoid Bracket -
18930103-0600 NUT
Choke Solenoid BracketNUT
Choke Solenoid Bracket -
193B2-76147-2 STARTER CABLE L=200
Starter Motor -Starter SolenoidSTARTER CABLE L=200
Starter Motor -Starter Solenoid -
203A3-76145-0 TERMINAL CAPTERMINAL CAP
-
21334-76141-1 STARTER CABLE L=150STARTER CABLE L=150
-
22361-76050-0 CHOKE SOLENOID
for EP TypeCHOKE SOLENOID
for EP Type -
23361-76073-0 * PLUNGER
for EP Type* PLUNGER
for EP Type -
24910103-0645 BOLT
Choke Solenoid BracketBOLT
Choke Solenoid Bracket -
25941303-0600 SPRING WASHER
Choke Solenoid BracketSPRING WASHER
Choke Solenoid Bracket -
26128-02605-1 SPACER 6-8-28.5
Choke Solenoid BracketSPACER 6-8-28.5
Choke Solenoid Bracket -
27309-06972-0 CLAMP 6.5-47.5P
Choke Solenoid BracketCLAMP 6.5-47.5P
Choke Solenoid Bracket -
283G2-76060-0 RECTIFIER COMPLETERECTIFIER COMPLETE
-
293G2-76142-0 GROUND CABLE
RectifierGROUND CABLE
Rectifier -
30921503-0525 SCREW
RectifierSCREW
Rectifier -
31930103-0500 NUT
RectifierNUT
Rectifier -
32941303-0500 SPRING WASHER
RectifierSPRING WASHER
Rectifier -
33353-06281-0 CABLE TERMINAL HOLDERCABLE TERMINAL HOLDER
-
34910103-0620 BOLT
Choke Solenoid BracketBOLT
Choke Solenoid Bracket -
35309-06972-0 CLAMP 6.5-47.5P
Choke Solenoid BracketCLAMP 6.5-47.5P
Choke Solenoid Bracket -
36353-06283-0 COLLAR 6.4-10-4.7
Choke Solenoid BracketCOLLAR 6.4-10-4.7
Choke Solenoid Bracket -
37941303-0600 SPRING WASHER
Choke Solenoid BracketSPRING WASHER
Choke Solenoid Bracket -
38930103-0600 NUT
Choke Solenoid BracketNUT
Choke Solenoid Bracket -
39921503-6408 SCREW
for EP TypeSCREW
for EP Type -
40346-76057-0 CHOKE SOLENOID HOOK
for EP TypeCHOKE SOLENOID HOOK
for EP Type -
41951403-0312 SPRING PIN 3-12
for EP TypeSPRING PIN 3-12
for EP Type -
42345-76072-1 ROD
for EP TypeROD
for EP Type -
43930403-0400 NYLON NUT 4-P0.7
for EP TypeNYLON NUT 4-P0.7
for EP Type -
443B2-76062-0 FUSE WIRE ASSY L=355FUSE WIRE ASSY L=355
-
45346-76212-0 * FUSE 15A* FUSE 15A
-
463B2-76120-1 BATTERY CABLE L=2000BATTERY CABLE L=2000
-
473B7-76145-0 TERMINAL CAPTERMINAL CAP
-
48361-76026-0 MAIN SWITCH ASSY
for EF TypeMAIN SWITCH ASSY
for EF Type -
49346-76039-1 SWITCH PROTECTOR
for EF TypeSWITCH PROTECTOR
for EF Type -
50361-76080-0 NEUTRAL SWITCH
for EF TypeNEUTRAL SWITCH
for EF Type -
51361-76082-0 NEUTRAL SWITCH OPERATING LEVER
Neutral Switch Plate for EF TypeNEUTRAL SWITCH OPERATING LEVER
Neutral Switch Plate for EF Type -
52398-76083-0 NEUTRAL SWITCH ACTUATOR
for EF TypeNEUTRAL SWITCH ACTUATOR
for EF Type -
533M4-76084-0 SPACER
for EF TypeSPACER
for EF Type -
543B7-63731-0 WASHER 12.5-24-1
for EF TypeWASHER 12.5-24-1
for EF Type
