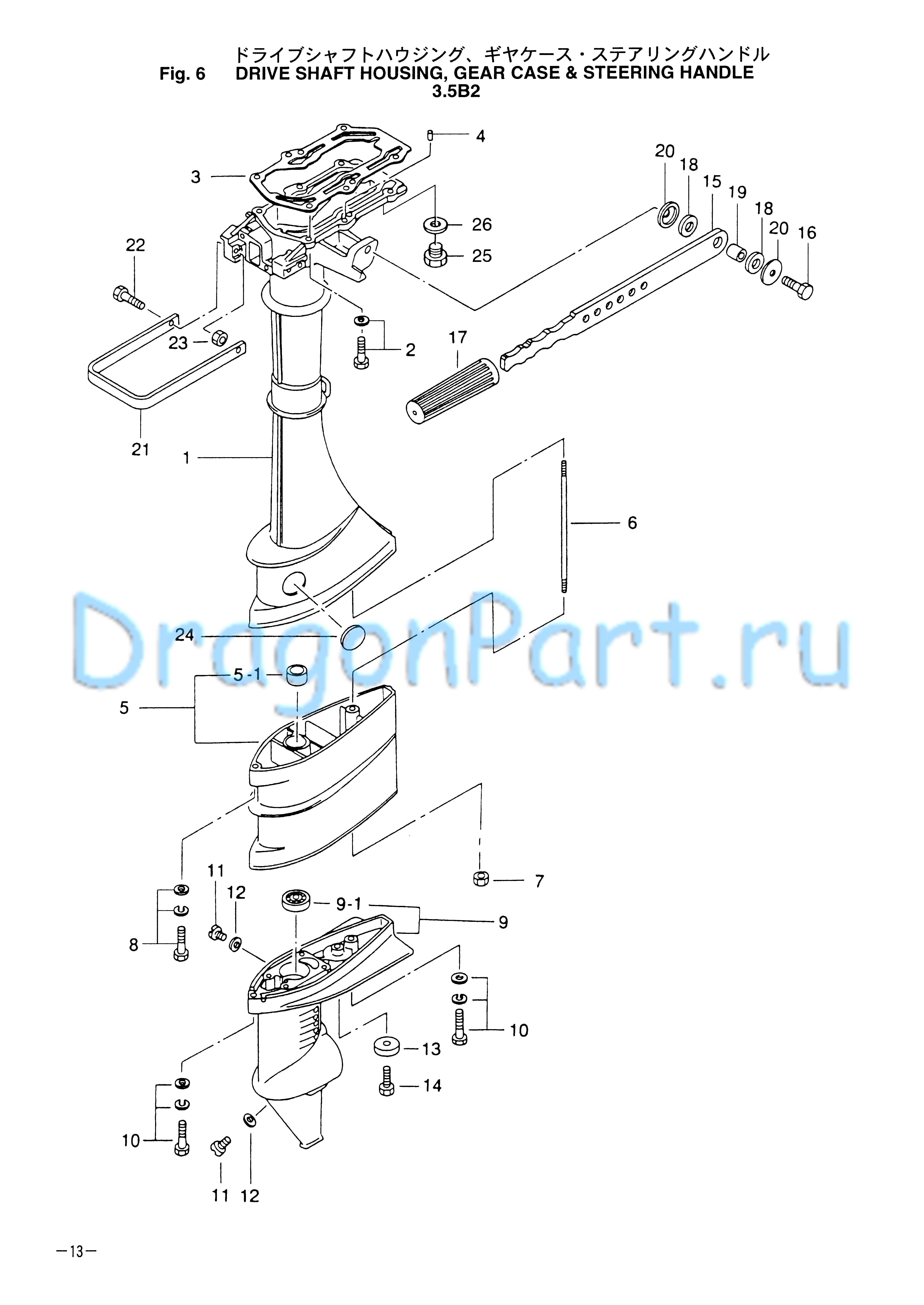

DRIVE SHAFT HOUSING GEAR CASER AND STEERING HANDLE для Tohatsu M3.5B2 - 2009 года выпуска`
-
№АртикулНазвание
-
13FOS61020-2 Drive Shaft Housing S"Drive Shaft Housing S"
-
2910113-5625 BoltBolt
-
3309-61012-1 Gasket, Drive Shaft HousingGasket, Drive Shaft Housing
-
4345-01111-0 Knock, 6-12Knock, 6-12
-
53FOS61102-1 Extension Housing L"
for Transom "L"Extension Housing L"
for Transom "L" -
5-1369-60003-0 * Bushing, Drive Shaft
for Transom "L"* Bushing, Drive Shaft
for Transom "L" -
63F0-61101-1 Stud Bolt, 6-171
for Transom "L"Stud Bolt, 6-171
for Transom "L" -
7930113-0600 NutNut
-
8910113-7635 BoltBolt
-
93FOS60000-1 Gear CaseGear Case
-
9-19601-0-6000 * Ball Bearing, 6000* Ball Bearing, 6000
-
10910113-7635 BoltBolt
-
11332-60005-2 Oil PlugOil Plug
-
12332-60006-0 Gasket, 8.2-15-1Gasket, 8.2-15-1
-
13338-60218-2 AnodeAnode
-
14910103-0616 BoltBolt
-
15309S63011-0 Steering HandleSteering Handle
-
16910103-0830 Bolt
or 910113-0830Bolt
or 910113-0830 -
17309-63012-0 Grip, Steerine: HandleGrip, Steerine: Handle
-
18309-63024-0 Damper Rubber, Steering HandleDamper Rubber, Steering Handle
-
19309-63025-0 Spacer, 8.4-12-14.2Spacer, 8.4-12-14.2
-
20345-67115-0 washer, 6.5-21-1washer, 6.5-21-1
-
213FOS67521-0 Carrying: HandleCarrying: Handle
-
22910113-0625 BoltBolt
-
23930113-0600 NutNut
-
24369-61016-0 Grommet, 29-3Grommet, 29-3
-
25910613-0808 Water PlugWater Plug
-
26332-60006-0 Gasket, 8.1 -15-1Gasket, 8.1 -15-1
Все узлы модели:
- ASSEMBLY KIT
- CARBURETOR
- CYLINDER CRANK CASE ASS`Y
- • DRIVE SHAFT HOUSING GEAR CASER AND STEERING HANDLE
- GEAR CASE(DRIVE SHAFT)
- GEAR CASE(PROPELLER SHAFT)
- MAGNETO
- MOTOR COVER INTEGRAL FUEL TANK
- OPTIONAL PARTS ACCESSORIES
- PISTON CRANK SHAFT
- RECOIL STARTER
- SHIFT
- STERN BRACKET SWIVEL BRACKET
