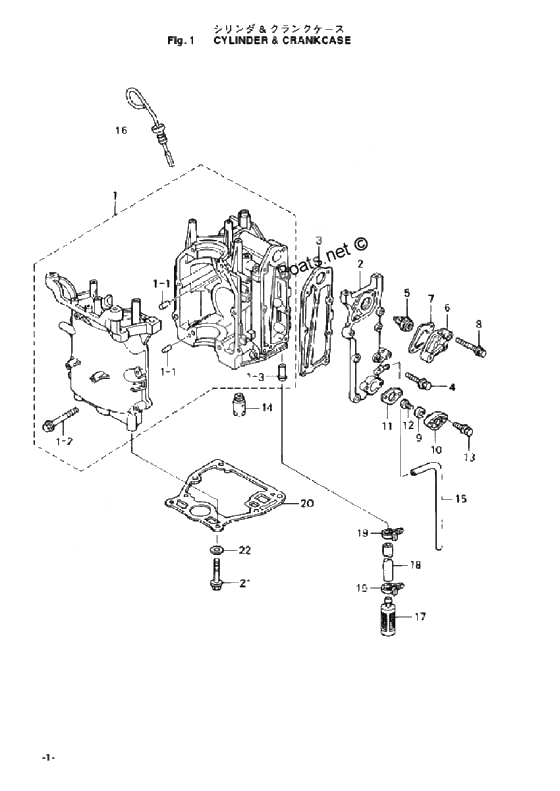

Cylinder & crankcase для Tohatsu MFS8A3 - 2008 года выпуска`
-
№АртикулНазвание
-
13V1B01100-0 Cylinder-Crankcase Ass'yCylinder-Crankcase Ass'y
-
1345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
23H8-01012-0 Bolt,8-50
, 3H8-01012-0Bolt,8-50
, 3H8-01012-0 -
23V1B02301-0 Exhaust CoverExhaust Cover
-
33H8-02093-0 ЗолотникЗолотник
-
33V1-02305-0 Exhaust Cover GasketExhaust Cover Gasket
-
49101E3-5625 Bolt & washer
or 910113-5625Bolt & washer
or 910113-5625 -
53R3-01030-0 Thermostat
Mark 60""Thermostat
Mark 60"" -
53AA-01030-0 Thermostat (71 degress celcius)
Option Mark 70""Thermostat (71 degress celcius)
Option Mark 70"" -
63H6B01031-0 Cap,ThermostatCap,Thermostat
-
7346-01032-0 New partNew part
-
89101E3-5640 Bolt & washer
or 910113-5640Bolt & washer
or 910113-5640 -
9369-60218-1 New partNew part
-
103H8B01143-1 Cap anodeCap anode
-
113R3-01144-0 O-RingO-Ring
-
12910103-0616 BoltBolt
-
139101E3-5620 Bolt & washer
or 910113-5620Bolt & washer
or 910113-5620 -
143V2-07620-0 Pluger Ass'yPluger Ass'y
-
163V1-07421-0 Oil Lebel GaugeOil Lebel Gauge
-
173V1-07410-1 Oil strainerOil strainer
-
19369-84398-0 Band Lead Wire,158Band Lead Wire,158
-
203V1-01303-0 Gasket engine baseGasket engine base
-
213R3-61017-0 Bolt 8-35Bolt 8-35
