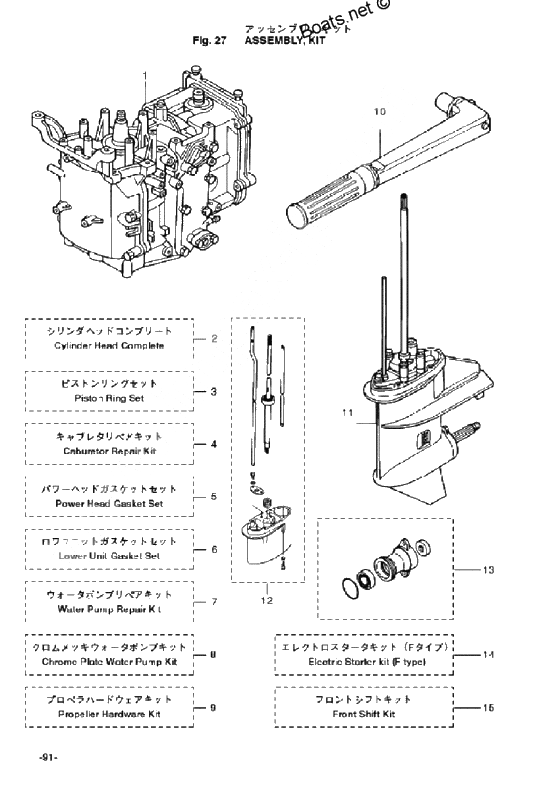

Assembly kit для Tohatsu MFS8A3 - 2008 года выпуска`
-
№АртикулНазвание
-
13V1B87100-1 Short block (8-9.8/4-st)
Old Part No. 3V1B87100-1Short block (8-9.8/4-st)
Old Part No. 3V1B87100-1 -
3V1B87090-7 Short block (8-9.8/4-st)Short block (8-9.8/4-st)
-
13V1-01303-0 Gasket engine baseGasket engine base
-
23V1B01000-3 Cylinder head assy mfs8/9.8a3
Fig.3 with Camshaft & Oil Pump ValveCylinder head assy mfs8/9.8a3
Fig.3 with Camshaft & Oil Pump Valve -
33V1-00013-0 Piston Ring OilPiston Ring Oil
-
33V1-87124-0 Кольца поршневыеКольца поршневые
-
33V1-00014-0 Piston Ring 0.5mm O/SPiston Ring 0.5mm O/S
-
33V1-00015-0 Piston Ring 2nd (0.5mm O/S)Piston Ring 2nd (0.5mm O/S)
-
33V1-87123-0 Кольца поршневыеКольца поршневые
-
33V1-00016-0 Piston Ring Oil 0.5mm O/SPiston Ring Oil 0.5mm O/S
-
33V1-00011-0 Piston Ring TOPPiston Ring TOP
-
33V1-00012-0 Piston Ring 2ndPiston Ring 2nd
-
43V1-03116-0 O-Ring
, Fig. 5-1-5O-Ring
, Fig. 5-1-5 -
43V1-03193-0 O-Ring
, Fig. 5-1-18O-Ring
, Fig. 5-1-18 -
43V1-03147-1 Float Valve
, Fig. 5-1-8Float Valve
, Fig. 5-1-8 -
43V1-03182-0 Gasket,Cabretor Cover
, Fig. 5-1-20Gasket,Cabretor Cover
, Fig. 5-1-20 -
43C8-03126-0 Float Arm Pin
, Fig. 5-1-9Float Arm Pin
, Fig. 5-1-9 -
4922503-6410 Stud Bolt
, Fig. 5-1-21Stud Bolt
, Fig. 5-1-21 -
43C8-03125-0 Float
, Fig. 5-1-10Float
, Fig. 5-1-10 -
4921703-0406 Stud Bolt
, Fig. 5-1-11Stud Bolt
, Fig. 5-1-11 -
43V1-03121-0 Gasket,float Chamber
, Fig. 5-1-15Gasket,float Chamber
, Fig. 5-1-15 -
43V1-87122-0 Carburetor Rerair KitCarburetor Rerair Kit
-
4922503-6412 Stud Bolt
, Fig. 5-1-16Stud Bolt
, Fig. 5-1-16 -
53R0-07422-0 New partNew part
-
53V1-02012-0 O-RingO-Ring
-
53V1-02305-0 Exhaust Cover GasketExhaust Cover Gasket
-
53H6-07422-0 New partNew part
-
5346-01032-0 New partNew part
-
53V1-07653-0 Gasket,Oil PumpGasket,Oil Pump
-
53R3-01144-0 O-RingO-Ring
-
53V1-87121-0 Power Head Gasket SetPower Head Gasket Set
-
53H8-07025-0 Oil Seal,18-35-8Oil Seal,18-35-8
-
53V1-00121-0 Oil Seal 30-45-8Oil Seal 30-45-8
-
53V1-01005-0 Cykinder Head GasketCykinder Head Gasket
-
53B2-01215-0 Oil seal 12-28-5Oil seal 12-28-5
-
53V1-02104-0 O-RingO-Ring
-
53V1-01024-0 Gasket HeadcoverGasket Headcover
-
53V1-02011-0 Caburetor GasketCaburetor Gasket
-
6309-60111-0 Oil Seal 12-24-8Oil Seal 12-24-8
-
6332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
6369-66021-1 O?????2.5-4.9O?????2.5-4.9
-
6345-65015-0 O-RingO-Ring
-
6332-66032-0 O?????2.4-15.4O?????2.4-15.4
-
6369-60111-0 Oil SealOil Seal
-
63B2-61012-2 Gasket driveshaft housingGasket driveshaft housing
-
63B2-65018-1 GasketGasket
-
3B2-65018-2 GasketGasket
-
63B2-02312-2 GasketGasket
-
63B2-65029-1 GasketGasket
-
3B2-65029-2 GasketGasket
-
63B2-65020-0 Gasket Water Pump Case LowerGasket Water Pump Case Lower
-
63B2-87321-3 Lower unit gasket kit 8/9.8bLower unit gasket kit 8/9.8b
-
3B2-87321-4 Lower unit gasket kit 8/9.8bLower unit gasket kit 8/9.8b
-
73B2-65022-0 New partNew part
-
73B2-65011-0 New partNew part
-
73B2-65025-0 Guide Plate Water PumpGuide Plate Water Pump
-
79161E3-0650 BoltBolt
-
7940113-0600 WasherWasher
-
73B2-87322-1 ウォ-タ-ポンプリペアキットウォ-タ-ポンプリペアキット
-
73B2-65021-1 Крыльчатка водной помпыКрыльчатка водной помпы
-
83B2-65238-0 Liner chrome plated water pump caseLiner chrome plated water pump case
-
83B2-65239-0 Guide plate chrome plated water pumpGuide plate chrome plated water pump
-
83B2-65231-1 Water pump repair kit chrome 8 hpWater pump repair kit chrome 8 hp
-
3B2-65231-2 Water pump repair kit chrome 8 hpWater pump repair kit chrome 8 hp
-
93V1-87326-0 Propeller Hardwear KitPropeller Hardwear Kit
-
93B2-64230-1 Thrust holder ass'yThrust holder ass'y
-
9369-64124-0 WasherWasher
-
9369-64121-0 Nut PropellerNut Propeller
-
9951503-0318 New partNew part
-
103V1-63041-0 Throttle ShaftThrottle Shaft
-
10920803-0518 Stud BoltStud Bolt
-
103V1Q63003-3 Handle assy (amb)
for MF & EFHandle assy (amb)
for MF & EF -
3V1Q63003-4 Handle assy (amb)Handle assy (amb)
-
10350-67154-0 New partNew part
-
103B2-63063-0 Supporter Throttle ShaftSupporter Throttle Shaft
-
103V2Q63003-0 Tiller handle pt assy (eft)
for EFTTiller handle pt assy (eft)
for EFT -
103V1-76032-0 Switch box
Fig. 16 - 20, for EFTSwitch box
Fig. 16 - 20, for EFT -
103V1-63035-1 Friction PieceFriction Piece
-
103V1Q63011-2 Tiller handle (amb)Tiller handle (amb)
-
3V1Q63011-3 Tiller handle (amb)Tiller handle (amb)
-
103V1-72615-0 Ptt switch assy
Fig. 16 - 22, for EFTPtt switch assy
Fig. 16 - 22, for EFT -
103V1-63077-0 Adjusting NutAdjusting Nut
-
103R3-63012-0 GripGrip
-
10336-06973-0 Clamp Lead Wire
Fig. 16 - 23, for EFTClamp Lead Wire
Fig. 16 - 23, for EFT -
103V1-63036-0 Spring WasherSpring Washer
-
103H6-63048-0 Rubber, Shrottle ShaftRubber, Shrottle Shaft
-
103V9-72019-0 Label,ThrottleLabel,Throttle
-
103H6-63510-0 BushingBushing
-
113V1Q87301-3 Lower unit assy s (amb)
for Transom S""Lower unit assy s (amb)
for Transom S"" -
3V1Q87301-5 Lower unit assy s (amb)Lower unit assy s (amb)
-
113V1Q87302-3 Lower unit assy l (amb)
for Transom L""Lower unit assy l (amb)
for Transom L"" -
3V1Q87302-5 Lower unit assy l (amb)Lower unit assy l (amb)
-
123V1-64309-1 Drive Shaft ULDrive Shaft UL
-
123V1Q87314-4 Extension housing kit ul (amb)
for Transom UL""Extension housing kit ul (amb)
for Transom UL"" -
123V1-66014-0 Cam Rod(UL)Cam Rod(UL)
-
123B2Q61110-2 Extension housing ul (amb)Extension housing ul (amb)
-
123V1-65120-0 Труба воднаяТруба водная
-
123V1-60001-0 Bolt 6-35 precoatedBolt 6-35 precoated
-
3V2-60001-0 Bolt 6-35 precoatedBolt 6-35 precoated
-
123B2-60003-1 Bushing Drive Shaft HousingBushing Drive Shaft Housing
-
123V1-64332-0 Stopoer,BushingStopoer,Bushing
-
129101E3-5612 Bolt & washer
, or 910113-5612Bolt & washer
, or 910113-5612 -
133B2Q60100-0 Propeller shaft housing assy.Propeller shaft housing assy.
-
3B2Q60100-1 Propeller shaft housing assy.Propeller shaft housing assy.
-
143B2-76147-2 Starter cableStarter cable
-
3B2-76147-1 Starter cableStarter cable
-
143AA-76026-0 Main Switch
, or 3B2-76026-1Main Switch
, or 3B2-76026-1 -
143AA-76010-0 Starter Motor Ass'yStarter Motor Ass'y
-
143V1-06284-1 Stay terminal holder
, or 3V1-06284-0Stay terminal holder
, or 3V1-06284-0 -
3V1-06284-0 Stay terminal holderStay terminal holder
-
14910103-5630 BoltBolt
-
143V1-76148-0 Spiral Tube ProtectorSpiral Tube Protector
-
143V1-76011-1 Bracket starter motor
, or 3V1-76011-0Bracket starter motor
, or 3V1-76011-0 -
3V1-76011-0 Bracket starter motorBracket starter motor
-
14174-35012-0 Collar 6-8-6Collar 6-8-6
-
143V1-06900-1 Electric bracket
, or 3V1-06900-0Electric bracket
, or 3V1-06900-0 -
3V1-06900-0 Electric bracketElectric bracket
-
143Y0-76145-0 Terminal CapTerminal Cap
-
143H8-76040-0 Starter SolenoidStarter Solenoid
-
149101E3-5616 Bolt & washer
, 910113-5612Bolt & washer
, 910113-5612 -
143T5-06920-0 Mount RubberMount Rubber
-
143Y1-76145-0 Terminal CapTerminal Cap
-
143AA-76065-0 Rectifire CompleteRectifire Complete
-
143AA-06902-0 Cover Terminal HolderCover Terminal Holder
-
143C8-66308-0 New partNew part
-
143V1-76066-0 Fuse WireFuse Wire
-
143V2-76300-2 Electric start kit 8/9.8a2 a3 (f type)
# 031096XD-Electric start kit 8/9.8a2 a3 (f type)
# 031096XD- -
3V2-76300-3 Electric start kit 8/9.8a2 a3 (f type)Electric start kit 8/9.8a2 a3 (f type)
-
143AC-76120-0 Battery cable +/- (new style) 8.2 ft.Battery cable +/- (new style) 8.2 ft.
-
14398-76080-0 Neutral Switch Ass'yNeutral Switch Ass'y
-
143B7-06305-0 Mount Rubber, 9-16-4.3Mount Rubber, 9-16-4.3
-
143R0-76064-0 Stay,Fuse HolderStay,Fuse Holder
-
143AA-06091-0 Flywheel CapFlywheel Cap
-
143AA-76145-0 Terminal CapTerminal Cap
-
14398-76083-0 Actuator Neutral SwitchActuator Neutral Switch
-
143A0-76079-0 Collar, 6.2-9-7.5Collar, 6.2-9-7.5
-
143AA-06281-0 Hplder Cable TerminalHplder Cable Terminal
-
143AA-06023-0 Alternator Ass'yAlternator Ass'y
-
153Y3-63621-0 GrommetGrommet
-
153Y3-66134-0 Rod shift lever (amb)Rod shift lever (amb)
-
153V1Q80404-0 Front shift kit f8a a2 a3/9.8a a2 a3Front shift kit f8a a2 a3/9.8a a2 a3
-
153Y3-67192-0 Choke RodChoke Rod
-
153R0-83715-0 Cable JointCable Joint
-
153Y3-66110-0 Shift lever f8/9.8a3 (amb)Shift lever f8/9.8a3 (amb)
-
153Y3-67578-0 Shift decalShift decal
-
15930103-0500 NutNut
-
153H6-63619-1 Collar, BracketCollar, Bracket
-
153AA-83719-0 WasherWasher
-
15346-67115-0 WasherWasher
-
15951603-0800 R-PinR-Pin
-
153Y3Q67480-0 Bracket shift lever (amb)Bracket shift lever (amb)
-
153AA-66135-1 Shaft shift lever (amb)Shaft shift lever (amb)
-
159101E3-5625 Bolt & washerBolt & washer
