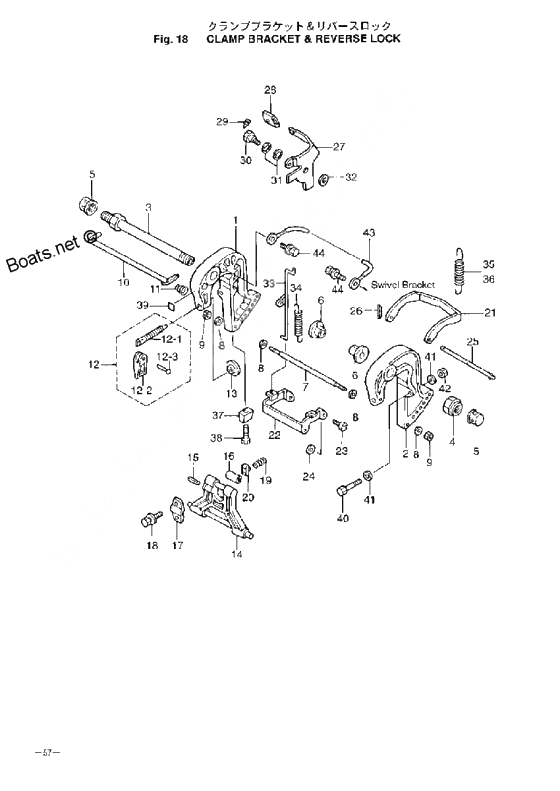

Clamp bracket & reverse lock для Tohatsu MFS30B - 2008 года выпуска`
-
№АртикулНазвание
-
13AEQ62112-0 Clamp bracket right
StarboardClamp bracket right
Starboard -
23AEQ62113-0 Clamp bracket left
PortClamp bracket left
Port -
33AC-62191-0 Swivel bracket boltSwivel bracket bolt
-
4346-62124-1 Bracket nutBracket nut
-
5346-62127-0 Cap,Bracket BoltCap,Bracket Bolt
-
6349-62126-0 Bushing, Bracket BoltBushing, Bracket Bolt
-
7346-62117-1 Distance PieceDistance Piece
-
8940113-0600 WasherWasher
-
10345-62121-1 Thrust RodThrust Rod
-
11345-62122-2 Spring Thrust RodSpring Thrust Rod
-
123AAQ62100-0 Clamp screw assy (amb)Clamp screw assy (amb)
-
3AAQ62105-0 Clamp screw assy (amb)Clamp screw assy (amb)
-
12-13AA-62103-0 Винт струбциныВинт струбцины
-
12-33C8-62104-1 Rivet3-22Rivet3-22
-
13332-62101-0 Pad clamp screwPad clamp screw
-
14349Q62993-1 Tilt StopperTilt Stopper
-
15951403-0640 Spring WasherSpring Washer
-
16346-62437-0 BushingBushing
-
173AC-62439-0 Setting plate tilt stopperSetting plate tilt stopper
-
183AC-63201-0 BoltBolt
-
193C8-62421-1 Spring Friction PlateSpring Friction Plate
-
20346-62438-0 Set PieceSet Piece
-
21346-66322-0 Reverse LockReverse Lock
-
22349-66313-0 Arm,Reverse LockArm,Reverse Lock
-
23336-66319-1 Shaft Leverse Lock LinkShaft Leverse Lock Link
-
243C8-66308-0 New partNew part
-
25346-66321-0 Rod,Reverse LockRod,Reverse Lock
-
26951503-0212 Split PinSplit Pin
-
27349-66311-0 Lever,reverse lockLever,reverse lock
-
28346-66333-0 GripGrip
-
29346-66334-0 StopperStopper
-
30345-05214-1 Shaft reverse lock leverShaft reverse lock lever
-
31941403-0800 WasherWasher
-
323C8-66308-0 New partNew part
-
33349-66312-0 Link, Reverse LockLink, Reverse Lock
-
34346-66323-1 Spring,Reverse Lock LeverSpring,Reverse Lock Lever
-
35346-66331-0 Spring (S) Reverse Lock
For Transom SSpring (S) Reverse Lock
For Transom S -
363R0-66332-0 Spring (L) Reverse Lock
For Transom L & ULSpring (L) Reverse Lock
For Transom L & UL -
373B7-60218-1 AnodeAnode
-
393H8-72049-0 Labe
For MF& EFLabe
For MF& EF -
43398-62396-1 Ground WireGround Wire
-
44910103-6512 BoltBolt
