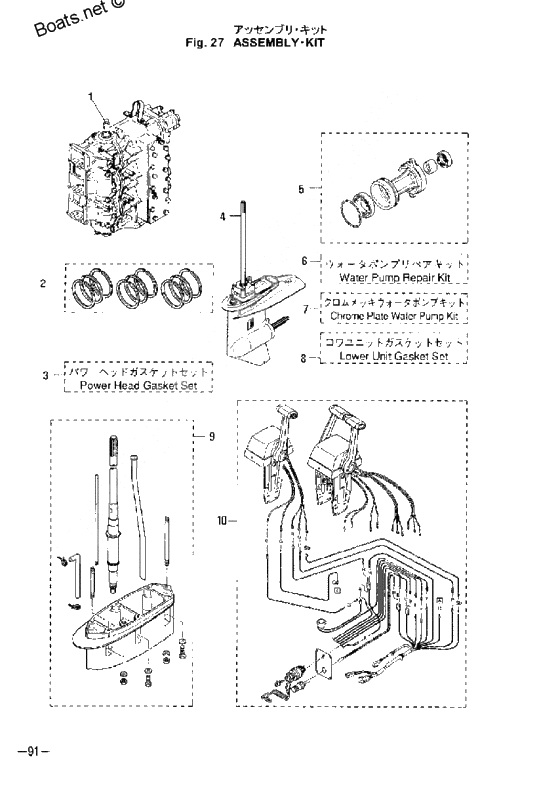

Assembly kit для Tohatsu MD70B - 2008 года выпуска`
-
№АртикулНазвание
-
13Y9B87110-0 Engine shrot block
70B # 70242-, 90B # 00766-Engine shrot block
70B # 70242-, 90B # 00766- -
13T7B87110-0 Engine shrot block
70A2 # 70052-# 70241, 90A2 # 00516-# 00765-Engine shrot block
70A2 # 70052-# 70241, 90A2 # 00516-# 00765- -
23B7-87123-1 Кольца поршневыеКольца поршневые
-
23B7-00011-0 1-е поршневое кольцо1-е поршневое кольцо
-
23B7-00012-0 2-е поршневое кольцо2-е поршневое кольцо
-
2-13B7-00014-0 1-е поршневое кольцо1-е поршневое кольцо
-
2-13B7-00015-0 2-е поршневое кольцо2-е поршневое кольцо
-
2-13B7-87124-1 Кольца поршневыеКольца поршневые
-
33B7-02305-0 Gasket, exhaust coverGasket, exhaust cover
-
3353-00108-0 O-RingO-Ring
-
3346-04901-0 Gasket fuel pumpGasket fuel pump
-
3171-00053-0 O-RingO-Ring
-
33B7-02235-0 O-Ring AO-Ring A
-
33C7-01215-0 Oil Seal, 19.6-35-10Oil Seal, 19.6-35-10
-
33T9-87121-0 Power Head Gasket SetPower Head Gasket Set
-
33B7-02236-0 O???? bO???? b
-
33T9-00121-0 Oil Seal,35-58-9Oil Seal,35-58-9
-
33T9-01005-0 Gasket,Cylinder HeadGasket,Cylinder Head
-
33B7-09002-0 O-Ring
, * Don't use for 70A2/90A2 and 70B/90B.O-Ring
, * Don't use for 70A2/90A2 and 70B/90B. -
33T9-02104-0 Gasket,Inlet ManifoldGasket,Inlet Manifold
-
33T9-01024-0 Gasket,Cylinder Head CoverGasket,Cylinder Head Cover
-
33C8-71016-0 Gasket 36-52-2Gasket 36-52-2
-
33T9-02242-0 Gasket,Air BoxGasket,Air Box
-
33T9-01032-0 Gasket,thermostat capGasket,thermostat cap
-
33B7-01303-0 New partNew part
-
33T9-02245-0 Gasket,air box coverGasket,air box cover
-
43Y7S87302-0 Lower unit ass'y(l)
NewLower unit ass'y(l)
New -
43Y7S87304-0 Lower unit ass'y ul
NewLower unit ass'y ul
New -
53B7S87323-1 Propeller shaft housing ass'yPropeller shaft housing ass'y
-
63C7-65011-0 Liner Water Pump CaseLiner Water Pump Case
-
63C7-65018-0 Seal Water Pump CaseSeal Water Pump Case
-
63C7-65025-0 Guide Plate Water PumpGuide Plate Water Pump
-
63C7-65029-0 Gasket Pump Guide PlateGasket Pump Guide Plate
-
63C7-87322-1 ウォ-タ-ポンプリペアキットウォ-タ-ポンプリペアキット
-
63C7-65021-1 Impeller water pumpImpeller water pump
-
63B7-65022-0 Key, water pump impellerKey, water pump impeller
-
73C7-65239-0 Guide plate chrome plated water pumpGuide plate chrome plated water pump
-
73C7-65231-0 Chrome Plated Water Pump KitChrome Plated Water Pump Kit
-
73C7-65238-0 Liner chrome plated water pump caseLiner chrome plated water pump case
-
83B7-60016-0 O-RingO-Ring
-
83B7-60111-0 Oil seal, 30-50-12Oil seal, 30-50-12
-
83C7-60223-1 Oil seal, 22-42-7Oil seal, 22-42-7
-
83T9-87321-0 Lower Unit Gasket SetLower Unit Gasket Set
-
83B7-60219-0 Packing, Trim TabPacking, Trim Tab
-
8346-64084-0 Shim, 35-41.9-0.5Shim, 35-41.9-0.5
-
83B7-61012-0 New partNew part
-
83B7-65015-0 O-RingO-Ring
-
83B7-02312-0 New partNew part
-
8345-66021-0 O-RingO-Ring
-
83B7-61181-0 New partNew part
-
83B7-66023-0 O-RingO-Ring
-
8332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
83B7-60103-0 O-RingO-Ring
-
93B7-61114-0 NutNut
-
93C7-64303-0 Drive Shaft ULDrive Shaft UL
-
93B7-66014-1 Cam Rod ULCam Rod UL
-
93Y9S87314-0 Extension housing kit xl
70B # 70376-, 90B # 00970-Extension housing kit xl
70B # 70376-, 90B # 00970- -
9951403-3516 New partNew part
-
93B7S61110-0 Extension housing ulExtension housing ul
-
9951403-3510 New partNew part
-
93B7-60001-2 Bolt, 10-40Bolt, 10-40
-
93C7-65120-0 Water Pipe ULWater Pipe UL
-
93B7-61112-0 Stud BoltStud Bolt
-
9-13B7-64303-0 Drive Shaft ULDrive Shaft UL
-
9-13T9S87314-0 Extension housing kit xl
-70B # 70375, -90B # 00969Extension housing kit xl
-70B # 70375, -90B # 00969 -
103T5-84490-0 Top mount remote control ass'y kit
for Single N.A.F.N.Top mount remote control ass'y kit
for Single N.A.F.N. -
103T5-84540-0 Top mount remote control ass'y kit twin
for Twin N.A.F.N.Top mount remote control ass'y kit twin
for Twin N.A.F.N.
