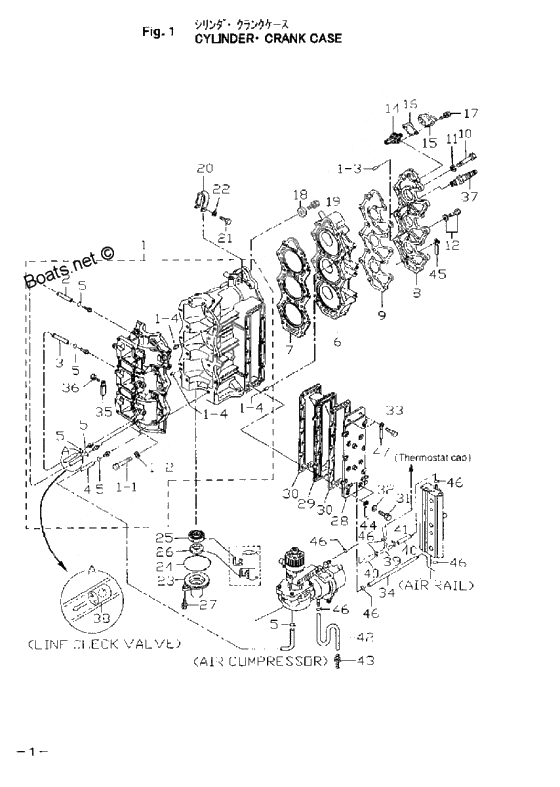

Cylinder crank case для Tohatsu MD40B - 2008 года выпуска`
-
№АртикулНазвание
-
13T5B01100-0 Cylinder & Crank Case Ass'yCylinder & Crank Case Ass'y
-
1916124-0845 BoltBolt
-
2940121-0800 WasherWasher
-
3334-65012-0 СтопорСтопор
-
4345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
53T5-01133-0 ClipClip
-
63Z5B01091-0 Головка цилиндров
#011601XC-Головка цилиндров
#011601XC- -
63T5B01001-0 Головка цилиндров
-#006249XCГоловка цилиндров
-#006249XC -
73T5-01005-0 Gasket,Cylinder HeadGasket,Cylinder Head
-
83T5B01021-0 Cover, Cylinder HeadCover, Cylinder Head
-
93T5-01024-0 Gasket,head CoverGasket,head Cover
-
10916189-0865 BoltBolt
-
11345-01015-0 WasherWasher
-
12910121-5620 Bolt
or 910113-5620Bolt
or 910113-5620 -
14345-01030-0 サーモスタットサーモスタット
-
153T5B01031-1 Cap,Themostat
40A#40001- , 50A#11273-Cap,Themostat
40A#40001- , 50A#11273- -
163T5-01032-0 Gasket, Thermostat CapGasket, Thermostat Cap
-
18338-60218-2 New partNew part
-
203C8B01513-0 HangerHanger
-
233C8-01291-0 Lower Head Crank CaseLower Head Crank Case
-
24346-01216-0 O-RingO-Ring
-
253T5-00122-0 Oil Seal, 25-40-8Oil Seal, 25-40-8
-
263C8-01215-0 Oil Seal 16-28-7Oil Seal 16-28-7
-
283T5B02301-0 Exhaust cover, outerExhaust cover, outer
-
293C8-02302-0 Exhaust Cover InnerExhaust Cover Inner
-
303C8-02305-0 Прокладка крышки выходаПрокладка крышки выхода
-
31916114-0630 BoltBolt
-
32940121-0600 Washer
or 940113-0600Washer
or 940113-0600 -
35309-06972-0 Clamp,6.5-47.5P
for P TypeClamp,6.5-47.5P
for P Type -
379701-1-1108 Spark plug
011601XC-Spark plug
011601XC- -
38393-01160-0 Check Valve
for Lubrication PipeCheck Valve
for Lubrication Pipe -
393T7-01175-0 T-Nipple
40A#40001- , 50A#11273-T-Nipple
40A#40001- , 50A#11273- -
43353-01138-0 Water NippleWater Nipple
-
443T4-06972-0 Плата струбциныПлата струбцины
-
453T5-06971-0 Плата струбциныПлата струбцины
-
46338-02215-0 ClipClip
