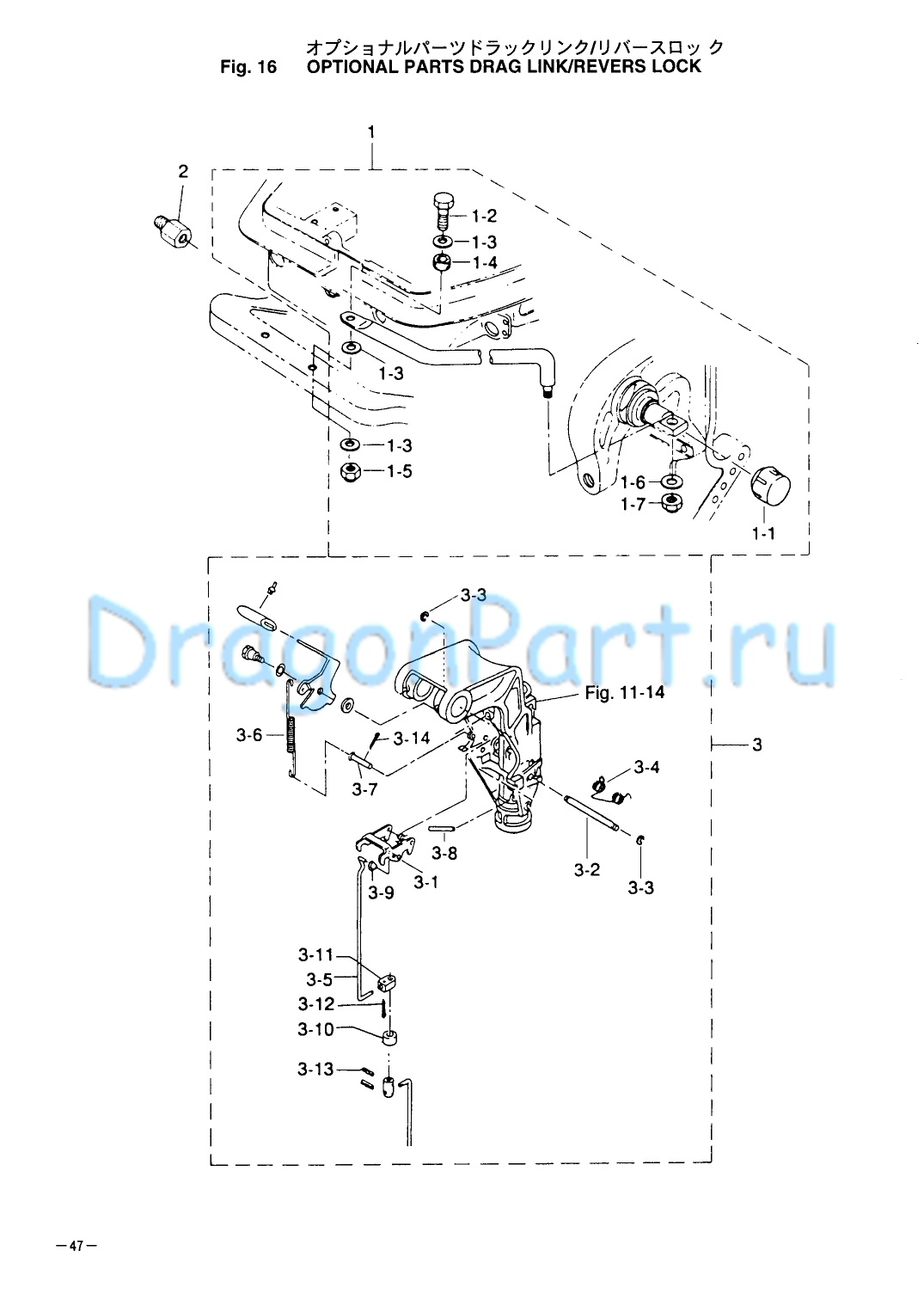

OPTIONAL PARTS DRAG LINK/REVERSE LOCK для Tohatsu M9.9D2 - 2008 года выпуска`
-
№АртикулНазвание
-
13G2-84905-0 Drag Link “G” AssyDrag Link “G” Assy
-
1-13F3-84908-0 * Drag Link Seal Ring* Drag Link Seal Ring
-
1-2910113-0840 * Bolt* Bolt
-
1-3940113-0800 * Washer* Washer
-
1-43G2-84914-0 * Collar, 8.1-10.5-6.5* Collar, 8.1-10.5-6.5
-
1-5930403-0800 * Nylon Nut, 8P-1.25* Nylon Nut, 8P-1.25
-
1-6353-84916-1 * Washer, 9.6-18-2* Washer, 9.6-18-2
-
1-7353-84918-0 * Nylon Nut, 3/8* Nylon Nut, 3/8
-
2353-84904-0 Drag Link SpacerDrag Link Spacer
-
33G2-66901-0 Shift Lever Reverse Lock KitShift Lever Reverse Lock Kit
-
3-13B2-66322-1 * Reverse Lock "B"
to be purchased as an Assy* Reverse Lock "B"
to be purchased as an Assy -
3-23G2-66324-0 * Reverse Lock Shaft "B"* Reverse Lock Shaft "B"
-
3-3945303-0500 * E-Ring, d二5* E-Ring, d二5
-
3-4369-62434-0 * Reverse Lock Spring "B"* Reverse Lock Spring "B"
-
3-53G2-66305-0 * Reverse Lock Link "B"* Reverse Lock Link "B"
-
3-63G2-62434-0 * Reverse Lock Lever Spring "B* Reverse Lock Lever Spring "B
-
3-7350-66223-0 * Pin* Pin
-
3-8951403-0535 * Spring Pin, 5-35* Spring Pin, 5-35
-
3-9345-05224-0 * Ø 5 Rod Snap* Ø 5 Rod Snap
-
3-10350-66337-0 * Spacer, 6.1-12-12* Spacer, 6.1-12-12
-
3-11350-66302-0 * Reverse Lock Link Joint* Reverse Lock Link Joint
-
3-12951503-0212 * Split Pin, 2-12* Split Pin, 2-12
-
3-13951403-0312 * Spring Pin, 3-12* Spring Pin, 3-12
-
3-14951503-1610 * Split Pin, 1.6-10* Split Pin, 1.6-10
