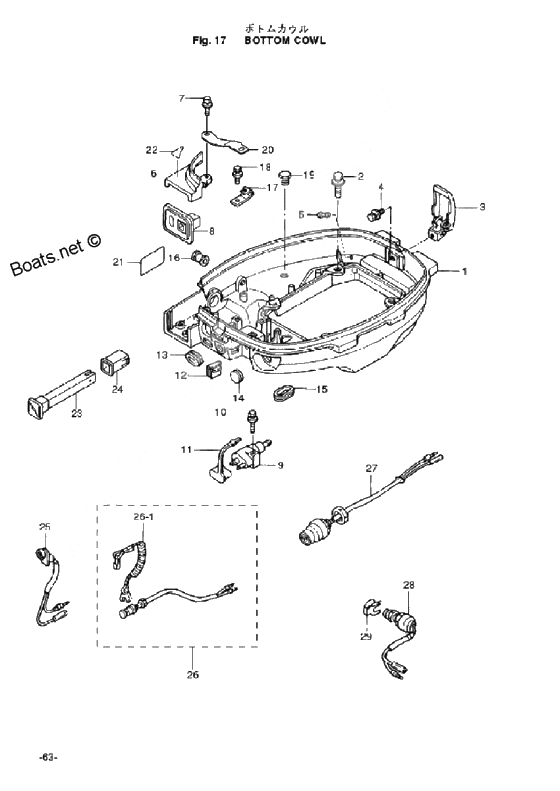

Bottom cowl для Tohatsu MFS8A3 - 2007 года выпуска`
-
№АртикулНазвание
-
13V2Q67100-0 Lower motor cover f8/9.8a3 (amb)Lower motor cover f8/9.8a3 (amb)
-
29101E3-5625 Bolt & washer
or 910113-5625Bolt & washer
or 910113-5625 -
33V1-67120-0 Cowl latchCowl latch
-
49101E3-5612 Bolt & washer
or 910113-5612Bolt & washer
or 910113-5612 -
53BA-01138-0 Water Nipple
or 353-01138-0Water Nipple
or 353-01138-0 -
63V1Q67481-0 Bracket shift lever cover (amb)
for MF & EF/EFT & EPBracket shift lever cover (amb)
for MF & EF/EFT & EP -
79101E3-5616 Bolt & washer
or 910113-5616Bolt & washer
or 910113-5616 -
83Y3-63621-0 Grommet
9.8A3/8A3 # 026832XE- for MF & EFGrommet
9.8A3/8A3 # 026832XE- for MF & EF -
9394-70260-0 Fuel conector(enginemale)Fuel conector(enginemale)
-
113H6-70262-0 Propeller Fuel ConectorPropeller Fuel Conector
-
123V1-63624-0 Grommet
Throttle CableGrommet
Throttle Cable -
133R3-67162-0 Grommet, Battery CordGrommet, Battery Cord
-
14345-67117-0 New part
for MF & EP/EPTNew part
for MF & EP/EPT -
153R3-66226-0 Grommet, Shift RodGrommet, Shift Rod
-
163B2-67187-0 Grommet Throttle Shaft
for MF & EF/EFTGrommet Throttle Shaft
for MF & EF/EFT -
173V1-69000-0 Bracket,Starter Lock CableBracket,Starter Lock Cable
-
193A3-60984-0 Plug Sub Water PipePlug Sub Water Pipe
-
203Z0-76174-0 Stay
for EFT/EPTStay
for EFT/EPT -
213H6-67572-0 LABEL, STORAGELABEL, STORAGE
-
223Y3-67578-0 Shift decal
9.8A3/8A3 # 026832XE- for MF & EF/EFTShift decal
9.8A3/8A3 # 026832XE- for MF & EF/EFT -
233C8-67151-1 Choke Rod
for MF & EF/EFTChoke Rod
for MF & EF/EFT -
243C8-67156-0 Bushing, Chrok Nobu
for MF & EF/EFTBushing, Chrok Nobu
for MF & EF/EFT -
253R3-71040-0 Pilot Lamp Ass'y
for MF & EF & EPPilot Lamp Ass'y
for MF & EF & EP -
253Z0-71040-0 Warning lamp
for EFT & EPTWarning lamp
for EFT & EPT -
26398-06830-0 Safety Switch Ass'ySafety Switch Ass'y
-
26-1353-06821-0 Lock, lanyard stop switchLock, lanyard stop switch
-
273AA-76026-0 Main Switch
for EF/EFT, or 3B2-76026-1Main Switch
for EF/EFT, or 3B2-76026-1 -
28398-76080-0 Neutral Switch Ass'y
for EF/EFTNeutral Switch Ass'y
for EF/EFT -
29398-76083-0 Actuator Neutral Switch
for EF/EFTActuator Neutral Switch
for EF/EFT
