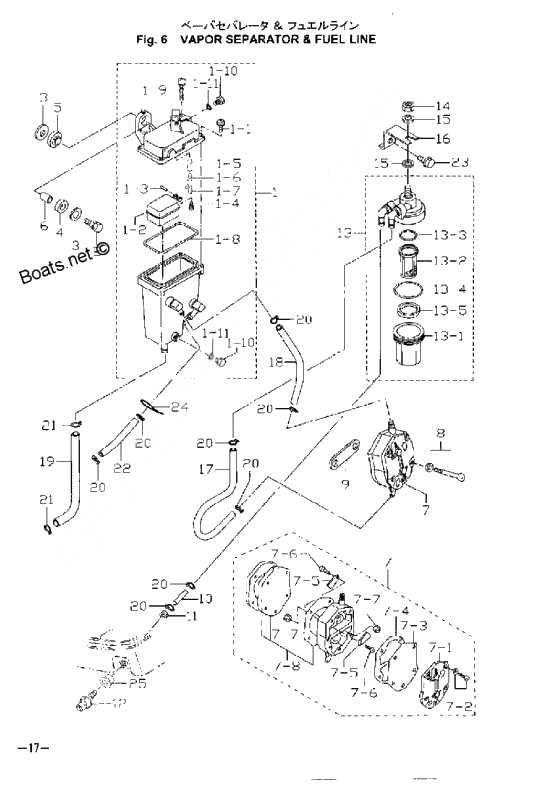

Vapor separator & fuel line для Tohatsu MD70B - 2007 года выпуска`
-
№АртикулНазвание
-
13T5-10150-0 Vapor separator ass'yVapor separator ass'y
-
1-1922531-6414 Stud BoltStud Bolt
-
1-10345-03292-0 Drain ScrewDrain Screw
-
1-11336-03293-0 O-RingO-Ring
-
1-23T5-03230-0 Float, Vapor SeparaterFloat, Vapor Separater
-
1-33F3-03232-0 Arm Pin FloatArm Pin Float
-
1-4921503-0408 Stud BoltStud Bolt
-
1-53R3-03240-0 Float ValveFloat Valve
-
1-6334-03242-0 Игольчатый клапанИгольчатый клапан
-
1-7334-03244-0 ClipClip
-
1-83T5-03235-0 O-RingO-Ring
-
2910103-6630 BoltBolt
-
3346-67115-0 WasherWasher
-
4346-67113-0 Mount RubberMount Rubber
-
53B7-06920-0 Mount Rubber, 8.5-14-2.5Mount Rubber, 8.5-14-2.5
-
6346-67114-0 Spacer 6.2-9-15.7Spacer 6.2-9-15.7
-
7356-04000-1 New partNew part
-
7-1334-04004-0 Fuel CoverFuel Cover
-
7-2922512-6528 Stud BoltStud Bolt
-
7-3334-04005-0 New partNew part
-
7-4334-04007-0 Gasket B DiaphragmGasket B Diaphragm
-
7-5356-04044-0 Check ValveCheck Valve
-
7-6921722-0306 Stud BoltStud Bolt
-
7-7930222-0300 NutNut
-
7-8356-04030-0 New partNew part
-
8910103-6640 BoltBolt
-
9346-04901-0 Gasket fuel pumpGasket fuel pump
-
11332-70261-0 Nut Fuel Connector BNut Fuel Connector B
-
123B2-70260-1 New partNew part
-
133T5-02230-0 Fuel Filter Ass'yFuel Filter Ass'y
-
13-13B7-02237-0 CupCup
-
13-23B7-02234-0 FilterFilter
-
13-33B7-02236-0 O???? bO???? b
-
13-43B7-02235-0 O-Ring AO-Ring A
-
13-53T5-02229-0 Float, Fuel FilterFloat, Fuel Filter
-
15940103-0800 Washer -> 940113-0800
or 940113-0800Washer -> 940113-0800
or 940113-0800 -
163T5-02239-0 Plate, FilterPlate, Filter
-
20338-02215-0 Clip
тИЕ10Clip
тИЕ10 -
213C7-02215-0 ClipClip
-
23910103-6614 BoltBolt
-
243T5-84398-0 Band Lead Wire 104Band Lead Wire 104
-
253T9-70264-0 BushingBushing
