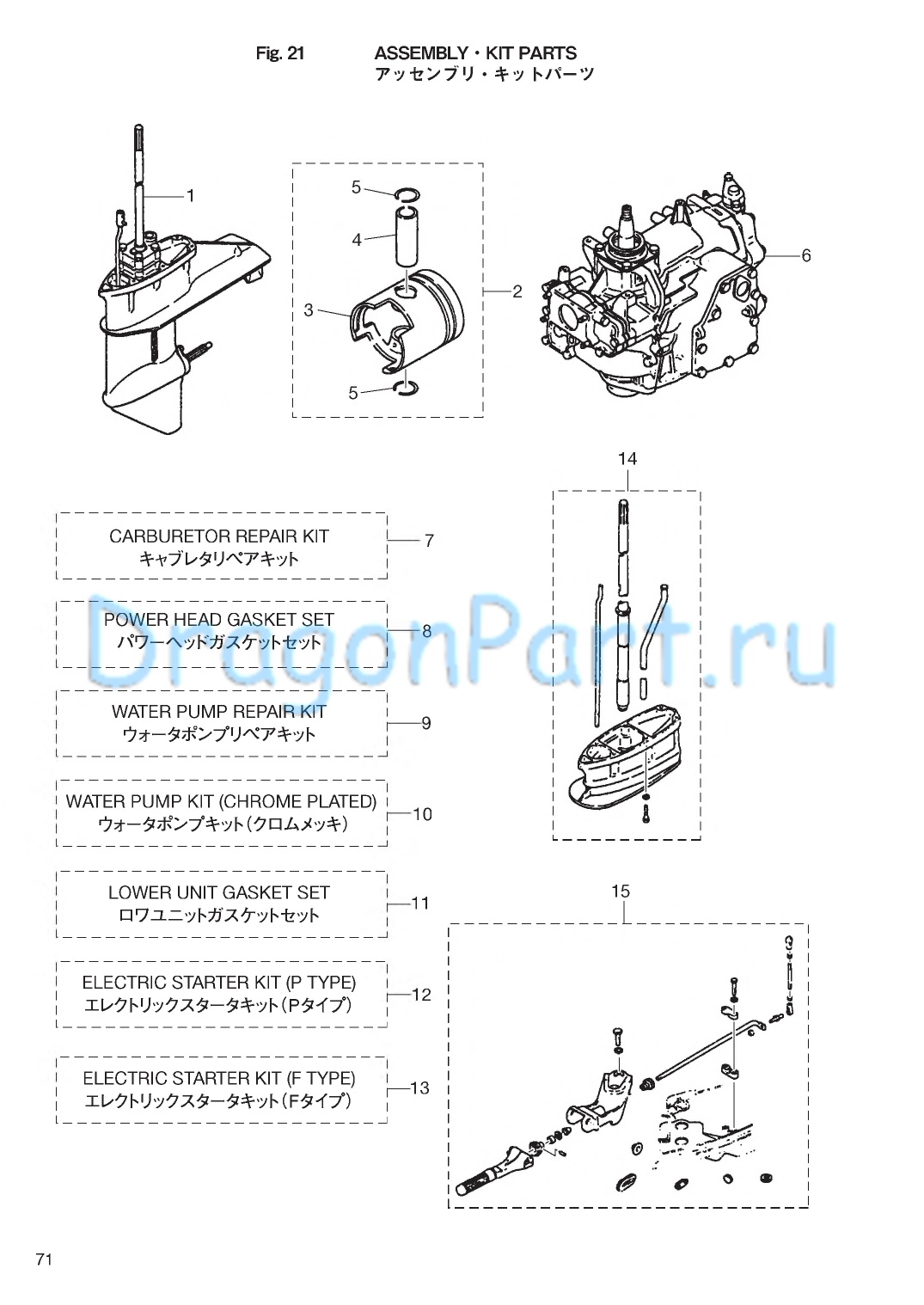

ASSEMBLY KIT PARTS для Tohatsu M40C - 2007 года выпуска`
-
№АртикулНазвание
-
1361Q87301-1 LOWER UNIT ASSY (S)
for Transom “SLOWER UNIT ASSY (S)
for Transom “S -
1361Q87302-1 LOWER UNIT ASSY (L)
for Transom “LLOWER UNIT ASSY (L)
for Transom “L -
23C1-87130-0 PISTON REPAIR KIT
STDPISTON REPAIR KIT
STD -
23C1-87131-0 PISTON REPAIR KIT (0.5 O/S)
OPTPISTON REPAIR KIT (0.5 O/S)
OPT -
3361-00001-1 * PISTON
STD* PISTON
STD -
3361-00004-1 * PISTON (0.5 O/S)
OPT* PISTON (0.5 O/S)
OPT -
4345-00021-1 * PISTON PIN* PISTON PIN
-
5334-00024-1 * PISTON PIN CLIP* PISTON PIN CLIP
-
63C1B87090-5 ENGINE SHORT BLOCK KITENGINE SHORT BLOCK KIT
-
7345-87122-4 CARBURETOR REPAIR KITCARBURETOR REPAIR KIT
-
7345-02011-3 * CARBURETOR GASKET* CARBURETOR GASKET
-
7336-03293-0 * O-RING* O-RING
-
7336-03222-0 * FLOAT CHAMBER O-RING 1.9-64* FLOAT CHAMBER O-RING 1.9-64
-
7922503-6412 * SCREW* SCREW
-
7334-03231-1 * FLOAT* FLOAT
-
7334-03232-0 * FLOAT ARM PIN* FLOAT ARM PIN
-
73B7-03240-0 * FLOAT VALVE* FLOAT VALVE
-
7345-03243-0 * O-RING 1.3-5.7* O-RING 1.3-5.7
-
7344-03244-0 * CLIP* CLIP
-
7334-03242-0 * VALVE PIN* VALVE PIN
-
7346-03265-0 * STOP SCREW* STOP SCREW
-
7345-03266-0 * PILOT SCREW* PILOT SCREW
-
8361-87121-4 POWER HEAD GASKET SETPOWER HEAD GASKET SET
-
8345-01005-1 * CYLINDER HEAD GASKET* CYLINDER HEAD GASKET
-
8346-01032-0 * THERMOSTAT CAP GASKET* THERMOSTAT CAP GASKET
-
8345-02305-1 * EXHAUST COVER GASKET* EXHAUST COVER GASKET
-
8126-00121-0 * OIL SEAL 30-45-8* OIL SEAL 30-45-8
-
8345-00122-0 * OIL SEAL 25-55-10* OIL SEAL 25-55-10
-
8338-01403-0 * O-RING 2-55.5* O-RING 2-55.5
-
8345-02104-0 * INTAKE MANIFOLD GASKET* INTAKE MANIFOLD GASKET
-
8345-02105-0 * INTAKE MANIFOLD GASKET* INTAKE MANIFOLD GASKET
-
8345-02011-3 * CARBURETOR GASKET* CARBURETOR GASKET
-
8336-03293-0 * O-RING* O-RING
-
8336-03222-0 * FLOAT CHAMBER O-RING 1.9-64* FLOAT CHAMBER O-RING 1.9-64
-
8346-04901-1 * GASKET* GASKET
-
8350-05136-0 * O-RING 2.5-4.5* O-RING 2.5-4.5
-
8345-61012-1 * DRIVE SHAFT HOUSING GASKET* DRIVE SHAFT HOUSING GASKET
-
8345-01303-1 * ENGINE BASEMENT GASKET* ENGINE BASEMENT GASKET
-
8345-01215-0 * OIL SEAL 17-30-8* OIL SEAL 17-30-8
-
9361-87322-0 WATER PUMP REPAIR KITWATER PUMP REPAIR KIT
-
9332-65022-0 * KEY* KEY
-
9345-65021-0 * WATER PUMP IMPELLER* WATER PUMP IMPELLER
-
9348-65011-0 * PUMP CASE LINER* PUMP CASE LINER
-
9348-65025-0 * WATER PUMP GUIDE PLATE* WATER PUMP GUIDE PLATE
-
9348-65029-1 * GUIDE PLATE GASKET* GUIDE PLATE GASKET
-
9348-65018-0 * PUMP CASE GASKET* PUMP CASE GASKET
-
99101E3-5652 * BOLT* BOLT
-
10361-65231-0 WATER PUMP KIT (CHROME PLATED)WATER PUMP KIT (CHROME PLATED)
-
10345-65021-0 * WATER PUMP IMPELLER* WATER PUMP IMPELLER
-
10361-65238-0 * PUMP CASE LINER
Chrome Plated* PUMP CASE LINER
Chrome Plated -
10361-65239-0 * WATER PUMP GUIDE PLATE
Chrome Plated* WATER PUMP GUIDE PLATE
Chrome Plated -
10348-65018-0 * PUMP CASE GASKET* PUMP CASE GASKET
-
10348-65029-1 * GUIDE PLATE GASKET* GUIDE PLATE GASKET
-
11361-87321-0 LOWER UNIT GASKET SETLOWER UNIT GASKET SET
-
11332-60006-0 * GASKET 8.1-15-1* GASKET 8.1-15-1
-
11345-60103-0 * O-RING 3.5-69.4* O-RING 3.5-69.4
-
11334-60223-0 * OIL SEAL 22-36-10* OIL SEAL 22-36-10
-
11332-60111-0 * OIL SEAL 17-33-9.5* OIL SEAL 17-33-9.5
-
11345-65015-0 * O-RING 3.2-47* O-RING 3.2-47
-
11348-65029-1 * GUIDE PLATE GASKET* GUIDE PLATE GASKET
-
11348-65018-0 * PUMP CASE GASKET* PUMP CASE GASKET
-
11345-66021-0 * O-RING 1.9-6.8* O-RING 1.9-6.8
-
11332-66032-0 * O-RING 2.4-15.4* O-RING 2.4-15.4
-
11301-66025-0 * GASKET 6.2-11-1* GASKET 6.2-11-1
-
12361-76000-1 ELECTRIC STARTER KIT (P)ELECTRIC STARTER KIT (P)
-
12346-76010-0 * STARTER MOTOR ASSY* STARTER MOTOR ASSY
-
12910103-0830 * BOLT* BOLT
-
12345-06971-0 * CLAMP 9-12U* CLAMP 9-12U
-
12930103-0800 * NUT* NUT
-
12941303-0800 * SPRING WASHER* SPRING WASHER
-
12346-76040-0 * STARTER SOLENOID* STARTER SOLENOID
-
12361-76055-1 * CHOKE SOLENOID BRACKET* CHOKE SOLENOID BRACKET
-
12345-76081-0 * NEUTRAL SWITCH BRACKET* NEUTRAL SWITCH BRACKET
-
12910103-0618 * BOLT* BOLT
-
12930103-0600 * NUT* NUT
-
12941303-0600 * SPRING WASHER* SPRING WASHER
-
123G2-76060-0 * RECTIFIER COMPLETE* RECTIFIER COMPLETE
-
12921503-0525 * SCREW* SCREW
-
12353-06281-0 * CABLE TERMINAL HOLDER* CABLE TERMINAL HOLDER
-
12353-06283-0 * COLLAR 6.4-10-4.7* COLLAR 6.4-10-4.7
-
12910103-0620 * BOLT* BOLT
-
12309-06972-0 * CLAMP 6.5-47.5P* CLAMP 6.5-47.5P
-
12910103-0645 * BOLT* BOLT
-
12128-02605-1 * SPACER 6-8-28.5* SPACER 6-8-28.5
-
12910903-6616 * BOLT* BOLT
-
123B2-76062-0 * FUSE WIRE ASSY L=355* FUSE WIRE ASSY L=355
-
123B2-76120-1 * BATTERY CABLE L=2000* BATTERY CABLE L=2000
-
12334-76141-1 * STARTER CABLE L=150* STARTER CABLE L=150
-
12910103-0612 * BOLT* BOLT
-
123B2-76147-2 * STARTER CABLE L=200* STARTER CABLE L=200
-
123A3-76145-0 * TERMINAL CAP* TERMINAL CAP
-
123B7-76145-0 * TERMINAL CAP* TERMINAL CAP
-
12336-76091-0 * LEAD WIRE BAND* LEAD WIRE BAND
-
12361-76050-0 * CHOKE SOLENOID* CHOKE SOLENOID
-
12346-76057-0 * CHOKE SOLENOID HOOK* CHOKE SOLENOID HOOK
-
12951403-0312 * SPRING PIN 3-12* SPRING PIN 3-12
-
12345-76072-1 * ROD* ROD
-
12930403-0400 * NYLON NUT 4-P0.7* NYLON NUT 4-P0.7
-
12921503-6408 * SCREW* SCREW
-
13361-76300-0 ELECTRIC STARTER KIT (F)ELECTRIC STARTER KIT (F)
-
13346-76010-0 * STARTER MOTOR ASSY* STARTER MOTOR ASSY
-
13910103-0830 * BOLT* BOLT
-
13345-06971-0 * CLAMP 9-12U* CLAMP 9-12U
-
13930103-0800 * NUT* NUT
-
13941303-0800 * SPRING WASHER* SPRING WASHER
-
13346-76040-0 * STARTER SOLENOID* STARTER SOLENOID
-
13361-76055-1 * CHOKE SOLENOID BRACKET* CHOKE SOLENOID BRACKET
-
13a941303-0600 * SPRING WASHER* SPRING WASHER
-
13930103-0600 * NUT* NUT
-
13361-76080-0 * NEUTRAL SWITCH* NEUTRAL SWITCH
-
13361-76082-0 * NEUTRAL SWITCH OPERATING LEVER* NEUTRAL SWITCH OPERATING LEVER
-
13398-76083-0 * NEUTRAL SWITCH ACTUATOR* NEUTRAL SWITCH ACTUATOR
-
13910103-0645 * BOLT* BOLT
-
13128-02605-1 * SPACER 6-8-28.5* SPACER 6-8-28.5
-
13910903-6616 * BOLT* BOLT
-
133B2-76062-0 * FUSE WIRE ASSY L=355* FUSE WIRE ASSY L=355
-
133B2-76120-1 * BATTERY CABLE L=2000* BATTERY CABLE L=2000
-
13334-76141-1 * STARTER CABLE L=150* STARTER CABLE L=150
-
13910103-0612 * BOLT* BOLT
-
133B2-76147-2 * STARTER CABLE L=200* STARTER CABLE L=200
-
133A3-76145-0 * TERMINAL CAP* TERMINAL CAP
-
133B7-76145-0 * TERMINAL CAP* TERMINAL CAP
-
13336-76091-0 * LEAD WIRE BAND* LEAD WIRE BAND
-
13361-76026-0 * MAIN SWITCH ASSY* MAIN SWITCH ASSY
-
13345-76081-0 * NEUTRAL SWITCH BRACKET* NEUTRAL SWITCH BRACKET
-
13910103-0618 * BOLT* BOLT
-
133G2-76060-0 * RECTIFIER COMPLETE* RECTIFIER COMPLETE
-
13921503-0525 * SCREW* SCREW
-
13930103-0500 * NUT* NUT
-
13941303-0500 * SPRING WASHER* SPRING WASHER
-
13353-06281-0 * CABLE TERMINAL HOLDER* CABLE TERMINAL HOLDER
-
13353-06283-0 * COLLAR 6.4-10-4.7* COLLAR 6.4-10-4.7
-
13910103-0620 * BOLT* BOLT
-
13309-06972-0 * CLAMP 6.5-47.5P* CLAMP 6.5-47.5P
-
133M4-76084-0 * SPACER* SPACER
-
133B7-63731-0 * WASHER 12.5-24-1* WASHER 12.5-24-1
-
14348Q87314-0 EXTENSION HOUSING KIT (UL)
for Transom “L” => “UL”EXTENSION HOUSING KIT (UL)
for Transom “L” => “UL” -
14345Q61110-0 * EXTENSION HOUSING* EXTENSION HOUSING
-
149101E3-5840 * BOLT* BOLT
-
14345-64303-0 * DRIVE SHAFT (UL)* DRIVE SHAFT (UL)
-
14345-65120-1 * WATER PIPE (UL)* WATER PIPE (UL)
-
14348-66014-0 * CAM ROD (UL)* CAM ROD (UL)
-
15361Q63000-5 TILLER HANDLE KITTILLER HANDLE KIT
Все узлы модели:
- CYLINDER CRANK CASE
- PISTON CRANK SHAFT
- INTAKE MAINFOLD FUEL PUMP
- CARBURETOR
- RECOIL STARTER
- MAGNETO
- ELECTRIC PARTS
- DRIVE SHAFT HOUSING
- GEAR CASE
- BRACKET
- TILLER HANDLE
- BOTTOM COWL
- SHIFT
- REMOTE CONTROL PARTS
- TOP COWL
- FUEL TANK
- COMPONENT PARTS OF REMOTE CONTROL (ELECTRIC PARTS)
- COMPONENT PARTS OF REMOTE CONTROL
- OPTIONAL PARTS ACCESSORIES (1)
- OPTIONAL PARTS ACCESSORIES (2)
- • ASSEMBLY KIT PARTS
