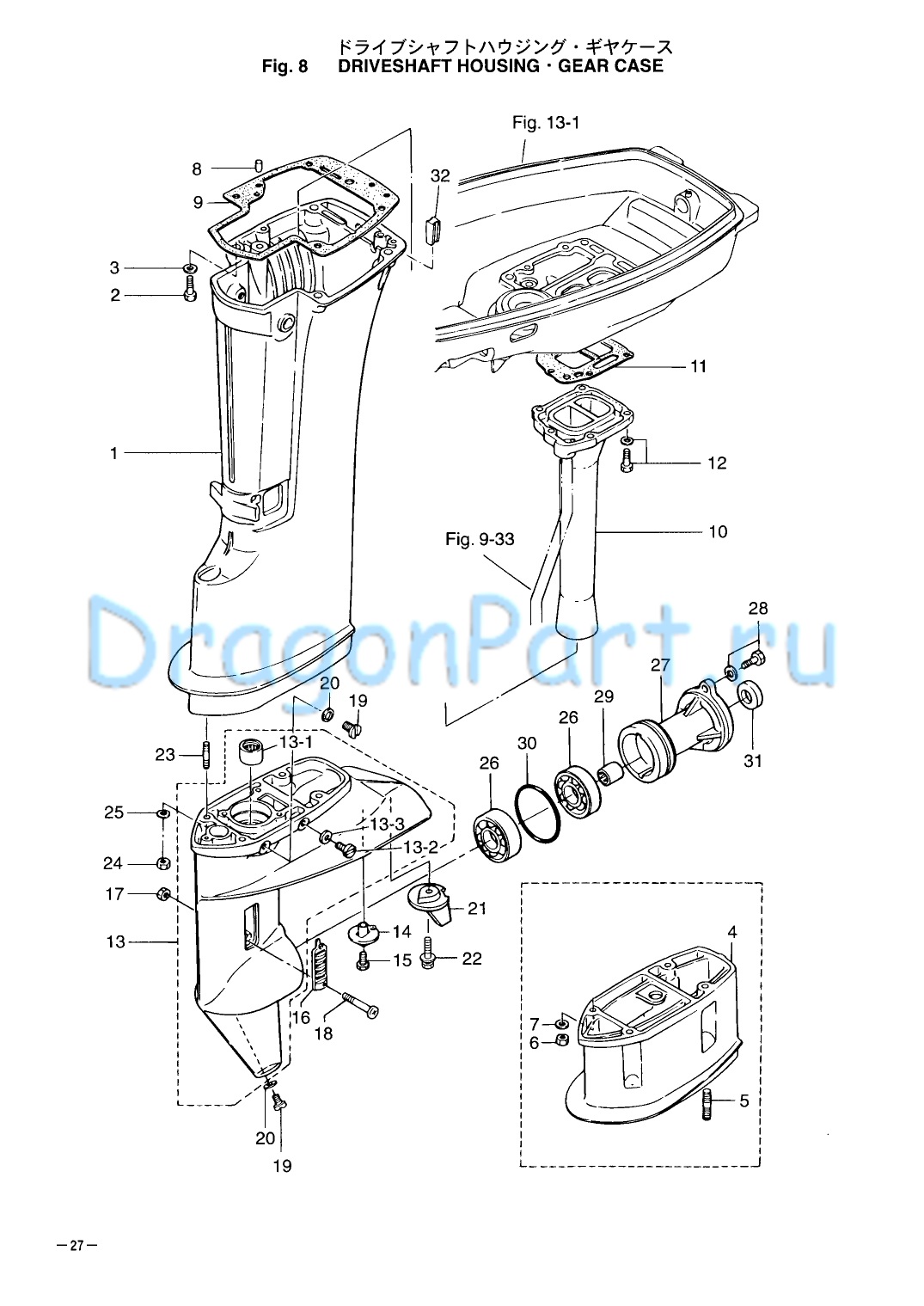

DRIVESHAFT HOUSING GEAR CASE для Tohatsu M15D2 - 2007 года выпуска`
-
№АртикулНазвание
-
1350Q61020-3 S Drive Shaft Housing "S"
for Transom "S"S Drive Shaft Housing "S"
for Transom "S" -
1350Q61030-3 L Drive Shaft Housing "L"
for Transom "L" & "UL"L Drive Shaft Housing "L"
for Transom "L" & "UL" -
23M3-61017-0 Bolt, 8-45Bolt, 8-45
-
3940113-0800 WasherWasher
-
4350Q61110-0 Extension Housing "UL"
for Transom "UL"Extension Housing "UL"
for Transom "UL" -
5915313-0825 Stud Bolt
for Transom 'UL"Stud Bolt
for Transom 'UL" -
6930113-0800 NutNut
-
73P0-66233-0 Washer, 8.1-16-1.5Washer, 8.1-16-1.5
-
8345-01111-0 Dowel Pin, 6~12Dowel Pin, 6~12
-
9350-61012-1 Drive Shaft Housing GasketDrive Shaft Housing Gasket
-
10362-02311-0 Exhaust PipeExhaust Pipe
-
11362-02312-1 Exhaust Pipe GasketExhaust Pipe Gasket
-
12910103-5625 Bolt
or 910113-5625Bolt
or 910113-5625 -
133V9Q60000-0 Gear Case
(# 018599XD —Silver gray)Gear Case
(# 018599XD —Silver gray) -
13398S60000-0 Gear Case
〜# 018598XDGear Case
〜# 018598XD -
13-1350-60211-0 * Needle Bearing, 16-24-20* Needle Bearing, 16-24-20
-
13-2332-60005-2 * Water Plug* Water Plug
-
13-3332-60006-0 * Gasket, 8.1-15-1* Gasket, 8.1-15-1
-
14369-60206-1 Sub Water StrainerSub Water Strainer
-
15921813-0620 Screw
or 921803-0620Screw
or 921803-0620 -
16362-60206-0 Water StrainerWater Strainer
-
17930403-0400 Nylon Nut, 4P-0.7Nylon Nut, 4P-0.7
-
18921513-0430 Screw
or 921503-0430Screw
or 921503-0430 -
19332-60005-2 Oil PlugOil Plug
-
20332-60006-0 Gasket, 8.1 5-1Gasket, 8.1 5-1
-
213V1-60217-0 Trim Tab
#018599XD〜Trim Tab
#018599XD〜 -
213V9-60218-0 Anode
〜# 018598XDAnode
〜# 018598XD -
22910103-5620 Bolt
# 018599XD〜Bolt
# 018599XD〜 -
22910103-0616 Bolt
〜# 018598XDBolt
〜# 018598XD -
23915313-0825 Stud BoltStud Bolt
-
24930113-0800 NutNut
-
253P0-66233-0 Washer, 8.1-16-1.5Washer, 8.1-16-1.5
-
269601-0-6205 Ball Bearing, 6205Ball Bearing, 6205
-
27362Q60101-1 Propeller Shaft HousingPropeller Shaft Housing
-
28910113-5625 BoltBolt
-
29362-60211-0 Needle Bearing,17-24-20Needle Bearing,17-24-20
-
30121-32071-0 O-Ring, 2.4-59.6O-Ring, 2.4-59.6
-
31346-65013-0 Oil Seal, 17-30-9Oil Seal, 17-30-9
-
32398-61207-0 Idle Exhaust Port GrommetIdle Exhaust Port Grommet
