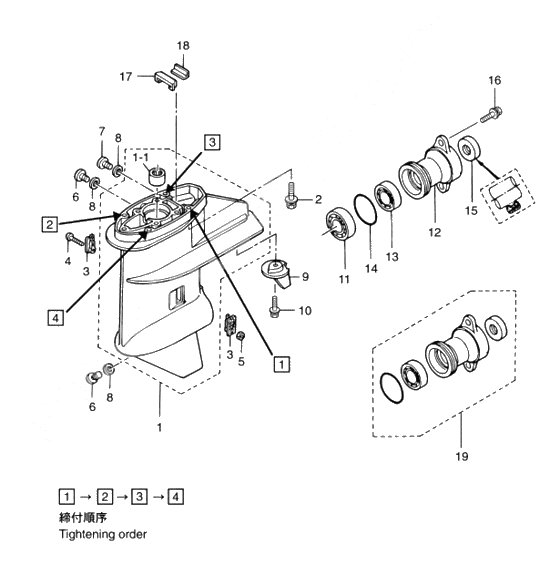

Gear case для Tohatsu MFS8A3 - 2006 года выпуска`
-
№АртикулНазвание
-
13AAQ60000-0 Gear case assy (amb)
#010322XD~Gear case assy (amb)
#010322XD~ -
1-13V1-60211-0 Roller BearingRoller Bearing
-
23V1-60001-0 Bolt 6-35 precoatedBolt 6-35 precoated
-
3V2-60001-0 Bolt 6-35 precoatedBolt 6-35 precoated
-
33AA-60206-0 Water Strainer
W=17 MARK A #010322XD~Water Strainer
W=17 MARK A #010322XD~ -
4921513-0430 Stud Bolt
OR 921503-0430Stud Bolt
OR 921503-0430 -
5930403-0400 Nylon NutNylon Nut
-
6332-60005-2 Oil Plug Water PlugOil Plug Water Plug
-
7332-60005-2 Oil Plug Water PlugOil Plug Water Plug
-
8332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
93V1-60217-0 Trim TabTrim Tab
-
10910103-5620 BoltBolt
-
119601-0-6204 Ball BearingBall Bearing
-
123B2Q60101-0 Housing Propeller ShaftHousing Propeller Shaft
-
3B2Q60101-1 Housing Propeller ShaftHousing Propeller Shaft
-
139601-0-6004 Ball BearingBall Bearing
-
14345-65015-0 O-RingO-Ring
-
15369-60111-0 Oil SealOil Seal
-
16910113-5620 BoltBolt
-
173V1-60041-0 Water Seal RubberWater Seal Rubber
-
183V1-60042-0 Water Seal PlateWater Seal Plate
-
193B2Q60100-0 Propeller shaft housing assy.Propeller shaft housing assy.
-
3B2Q60100-1 Propeller shaft housing assy.Propeller shaft housing assy.
