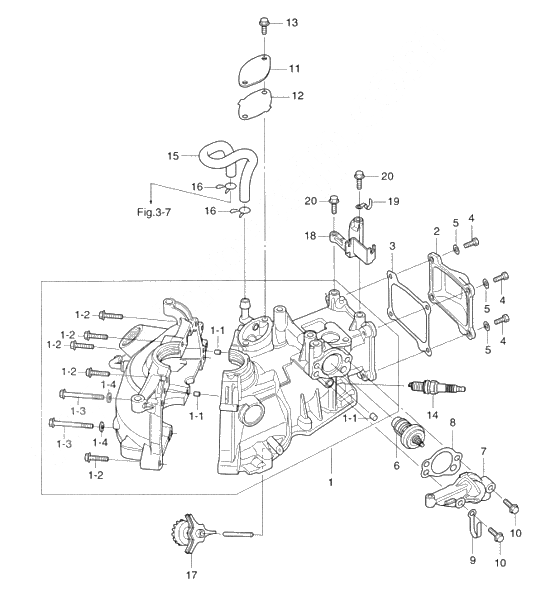

Cylinder & cylinder head для Tohatsu MFS3.5A - 2006 года выпуска`
-
№АртикулНазвание
-
13ABB01100-0 Cylinder crankcase
WITH NIPPLECylinder crankcase
WITH NIPPLE -
1-1345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
1-2910114-5635 Bolt & washerBolt & washer
-
9101E3-5635 Bolt & washerBolt & washer
-
1-3916119-0675 BoltBolt
-
9161F9-0675 BoltBolt
-
1-4940113-0600 WasherWasher
-
23ABB01021-0 Cylinder head coverCylinder head cover
-
33AB-01024-0 Cylinder head cover gasketCylinder head cover gasket
-
3AB-01024-1 Cylinder head cover gasketCylinder head cover gasket
-
4910121-0616 Bolt
OR 910113-0616Bolt
OR 910113-0616 -
53R0-66308-0 Washer
OR 3C8-66308-0Washer
OR 3C8-66308-0 -
63H6-01030-0 Thermostat
MARK 5BThermostat
MARK 5B -
73ABB01031-0 Thermostat capThermostat cap
-
83AB-01032-0 Thermostat cap gasketThermostat cap gasket
-
9398-06972-0 Clamp,6.5-67PClamp,6.5-67P
-
10910113-5630 BoltBolt
-
113AB-07431-0 Breather chamber coverBreather chamber cover
-
123AB-07432-0 Breather chamber cover gasketBreather chamber cover gasket
-
13910113-5616 BoltBolt
-
149701-1-1103 Spark plug (dcpr6e)
NGK : DCPR6ESpark plug (dcpr6e)
NGK : DCPR6E -
153AB-07435-0 Breather hoseBreather hose
-
163C7-02215-0 ClipClip
-
173AB-07640-0 SlingerSlinger
-
183AB-63508-0 Throttle cable bracketThrottle cable bracket
-
3ABB63508-0 Throttle cable bracketThrottle cable bracket
-
19398-06972-0 Clamp,6.5-67PClamp,6.5-67P
-
20910113-5625 BoltBolt
