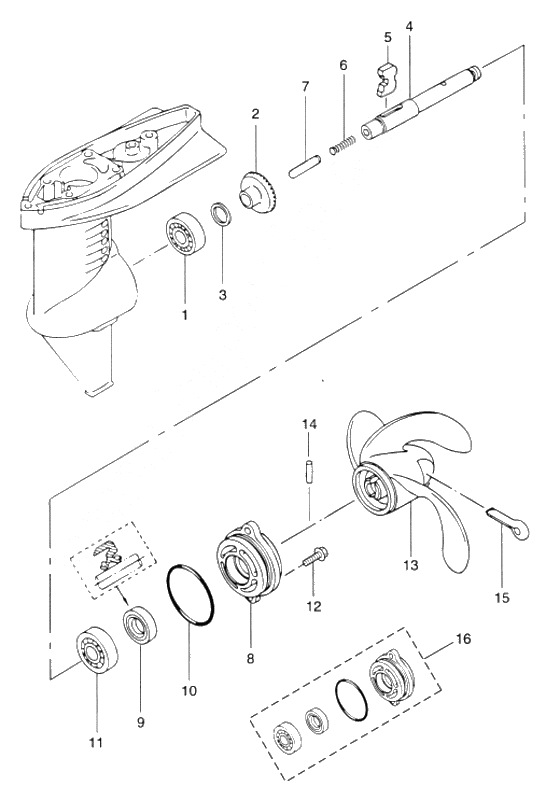

Gear case (propeller shaft) для Tohatsu MFS2.5A - 2006 года выпуска`

№

Артикул

Название
1

9601-0-6004 Ball Bearing

Ball Bearing

2 440 ₽
2

369-64010-2 Bevel Gear A Ass'y (with Bushing)

Bevel Gear A Ass'y (with Bushing)

7 890 ₽
3

369-64014-0 Shim 21-28-0.1

Shim 21-28-0.1

660 ₽
3

369-64015-0 Shim 21-28-0.15

Shim 21-28-0.15

660 ₽
4

3F0-64211-0 Propeller Shaft

Propeller Shaft

12 980 ₽
5

3F0-64215-0 Clutch

Clutch

1 600 ₽
6

3F0-64221-0 Spring Clutch

Spring Clutch

510 ₽
7

3F0-64223-0 Push Rod Clutch

Push Rod Clutch

1 100 ₽
8

3F0Q60101-1 Propeller shaft housing

Propeller shaft housing

6 810 ₽
9

309-60111-0 Oil Seal 12-24-8

Oil Seal 12-24-8

1 010 ₽
10

345-65015-0 O-Ring

O-Ring

360 ₽
11

9601-0-6001 Ball Bearing

Ball Bearing

2 200 ₽
12

910113-5620 Bolt

Bolt

120 ₽
13

3F0-64101-0 Prop 3 blade resin (7.4 dia. x 7 pitch) plastic
FOR TRANSOM S L

Prop 3 blade resin (7.4 dia. x 7 pitch) plastic
FOR TRANSOM S L

5 940 ₽
13

3F0-64102-0 Propeller 6 p alum-2.5a/3.5a/3.5b
OPTION

Propeller 6 p alum-2.5a/3.5a/3.5b
OPTION

14 300 ₽
3F0B64512-0 Propeller 6 p alum-2.5a/3.5a/3.5b

Propeller 6 p alum-2.5a/3.5a/3.5b

22 520 ₽
13

309-64106-0 Prop 3 blade resin (7.4 dia. x 5.7 pitch)
OPTION

Prop 3 blade resin (7.4 dia. x 5.7 pitch)
OPTION

5 940 ₽
13

314-64103-0 Prop 2.5 hp (7.4 dia. x 4.5 pitch) - plastic
OPTION

Prop 2.5 hp (7.4 dia. x 4.5 pitch) - plastic
OPTION

3 180 ₽
314B64103-0 Prop 2.5 hp (7.4 dia. x 4.5 pitch) - plastic

Prop 2.5 hp (7.4 dia. x 4.5 pitch) - plastic

6 770 ₽
14

309-64126-0 Shear pin b, 4-24 (for aluminium

Shear pin b, 4-24 (for aluminium

140 ₽
15

951503-0435 New part

New part

270 ₽
16

3F0Q87323-1 Propeller shaft housing assy

Propeller shaft housing assy

4 120 ₽
