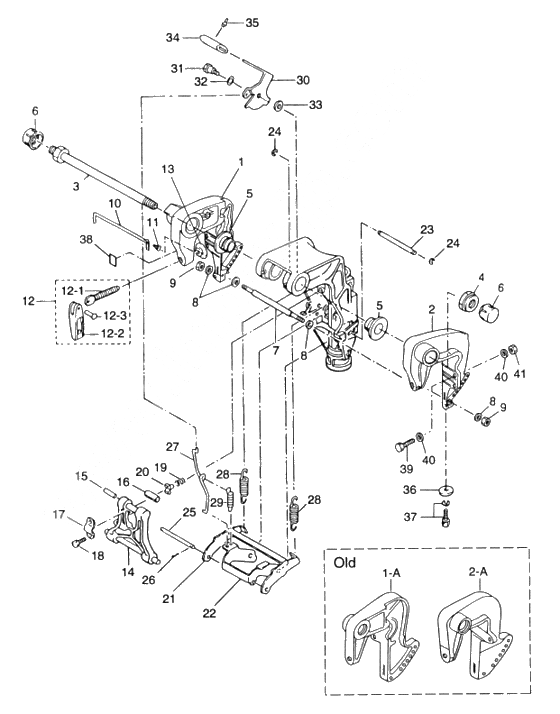

Clamp bracket (stern bracket) & reverse lock для Tohatsu MFS18B2 - 2006 года выпуска`
-
№АртикулНазвание
-
13V6Q62112-0 Clamp bracket right
NEW STARBOARDClamp bracket right
NEW STARBOARD -
3V6Q62112-2 Clamp bracket rightClamp bracket right
-
13G2Q62112-1 Stern bracket r (amb)
OLD STARBOARDStern bracket r (amb)
OLD STARBOARD -
3G2Q62112-0 Stern bracket r (amb)Stern bracket r (amb)
-
1A3G2Q62112-1 Stern bracket r (amb)
OLD STARBOARDStern bracket r (amb)
OLD STARBOARD -
3G2Q62112-0 Stern bracket r (amb)Stern bracket r (amb)
-
23V6Q62113-0 Clamp bracket left
NEW PORTClamp bracket left
NEW PORT -
3V6Q62113-1 Clamp bracket leftClamp bracket left
-
23G2Q62113-1 Stern bracket l (amb)
OLD PORTStern bracket l (amb)
OLD PORT -
3G2Q62113-0 Stern bracket l (amb)Stern bracket l (amb)
-
2A3G2Q62113-1 Stern bracket l (amb)
OLD PORTStern bracket l (amb)
OLD PORT -
3G2Q62113-0 Stern bracket l (amb)Stern bracket l (amb)
-
33AC-62191-0 Swivel bracket bolt
BRACKET BOLT OR 346-62191-0Swivel bracket bolt
BRACKET BOLT OR 346-62191-0 -
4346-62124-1 Bracket nutBracket nut
-
5349-62126-0 Bushing, Bracket BoltBushing, Bracket Bolt
-
6346-62127-0 Cap,Bracket Bolt
MF & EFCap,Bracket Bolt
MF & EF -
73V6-62117-0 Distance Piece
NEW FOR 3V6 TYPE CLAMP BRACKETDistance Piece
NEW FOR 3V6 TYPE CLAMP BRACKET -
7350-62117-1 Distance Piece
OLD FOR 3G2 TYPE CLAMP BRACKETDistance Piece
OLD FOR 3G2 TYPE CLAMP BRACKET -
8940113-0600 WasherWasher
-
9930113-0600 NutNut
-
10350-62121-1 Thrust RodThrust Rod
-
11369-62122-2 Spring Thrust RodSpring Thrust Rod
-
12398Q62100-0 Clamp screw kitClamp screw kit
-
3V1Q62105-0 Clamp screw kitClamp screw kit
-
12-1398-62103-0 Винт струбциныВинт струбцины
-
12-2332Q62102-1 Handle clamp screwHandle clamp screw
-
12-33C8-62104-1 Rivet3-22Rivet3-22
-
13332-62101-0 Pad clamp screwPad clamp screw
-
143G2Q62431-0 Tilt stopper (amb)Tilt stopper (amb)
-
15951403-0535 Spring WasherSpring Washer
-
16350-62437-0 Bushing Tilt StopperBushing Tilt Stopper
-
17350-62439-0 Set plateSet plate
-
350-62439-1 Set plateSet plate
-
18910113-5818 BoltBolt
-
193C8-62421-1 Spring Friction PlateSpring Friction Plate
-
20346-62438-0 Set PieceSet Piece
-
213G2-66351-0 Reverse LockReverse Lock
-
223G2-66313-1 Arm reverse lockArm reverse lock
-
233G2-66319-1 Shaft reverse lock aShaft reverse lock a
-
24945303-0600 E-RingE-Ring
-
253G2-66321-0 Rod reverse lock aRod reverse lock a
-
26951503-0212 Split PinSplit Pin
-
273G2-66312-0 Link reverse lock aLink reverse lock a
-
283G2-66331-0 Spring, reverse lockSpring, reverse lock
-
29350-66315-0 Spring reverse lockSpring reverse lock
-
303G2-66311-0 Lever reverse lockLever reverse lock
-
313V9-05254-0 Shoulder bolt 6-8Shoulder bolt 6-8
-
32941403-0800 WasherWasher
-
333R0-66308-0 WasherWasher
-
34346-66333-0 GripGrip
-
35346-66334-0 StopperStopper
-
36338-60218-2 New partNew part
-
37910103-5620 BoltBolt
-
383H8-72049-0 LabeLabe
-
39916113-0885 Bolt
OPTIONBolt
OPTION -
40940113-0800 Washer
OPTIONWasher
OPTION -
41930113-0800 Nut
OPTIONNut
OPTION
