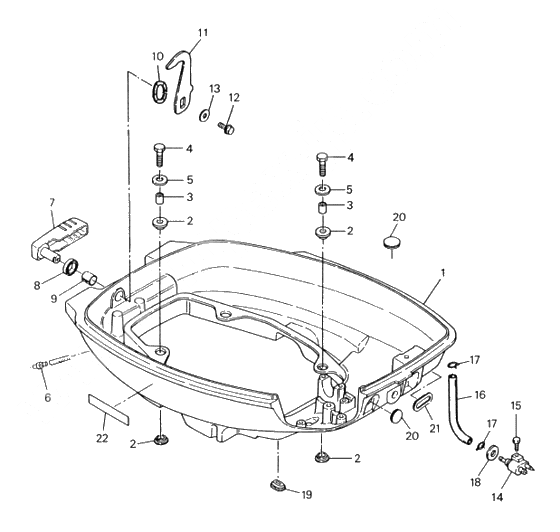

Bottom cowl (motor cover lower) для Tohatsu MFS18B2 - 2006 года выпуска`
-
№АртикулНазвание
-
13R3Q67100-0 Motor cover lower (amb)
MOTOR COVER (LOWER)Motor cover lower (amb)
MOTOR COVER (LOWER) -
2346-67113-0 Mount RubberMount Rubber
-
3346-67114-0 Spacer 6.2-9-15.7Spacer 6.2-9-15.7
-
4910113-0630 BoltBolt
-
5346-67115-0 WasherWasher
-
6353-01138-0 Water NippleWater Nipple
-
73R3Q67141-0 Hook leverHook lever
-
8338-67147-0 New partNew part
-
9350-67105-0 New partNew part
-
10941403-1400 New partNew part
-
113R3-67142-0 Cover HookCover Hook
-
12910103-6512 BoltBolt
-
133R0-66308-0 WasherWasher
-
14394-70260-0 Fuel conector(enginemale)Fuel conector(enginemale)
-
15910113-5625 BoltBolt
-
1698AB-5-1000 New partNew part
-
17338-02215-0 ClipClip
-
183R3-67082-0 Grommet, fuel connectorGrommet, fuel connector
-
193B2-63624-0 Grommet
2 FOR EPGrommet
2 FOR EP -
20345-67117-0 New partNew part
-
213R3-67162-0 Grommet, Battery CordGrommet, Battery Cord
-
223H6-67572-0 LABEL, STORAGELABEL, STORAGE
