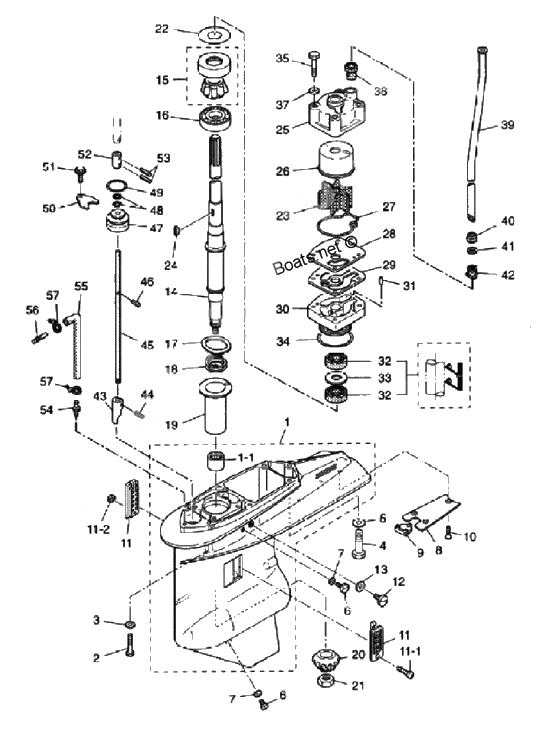

Gear case (drive shaft) 1 d90b-#00969 для Tohatsu MD90B - 2006 года выпуска`
-
№АртикулНазвание
-
13C8Q60000-0 Gear case s/l (amb)
-70B # 70376, -90B # 00970Gear case s/l (amb)
-70B # 70376, -90B # 00970 -
1-13C7-60211-1 Needle Bearing 28.6-38.1-3Needle Bearing 28.6-38.1-3
-
43B7-60001-2 Bolt, 10-40Bolt, 10-40
-
6332-60005-2 Oil Plug Water PlugOil Plug Water Plug
-
7332-60006-0 Gasket (8.1x15.1)Gasket (8.1x15.1)
-
83B7-60012-1 Plate, Gear CasePlate, Gear Case
-
93B7-60013-0 Hole Plug, Gear CaseHole Plug, Gear Case
-
113C7-60235-1 Water Strainer SetWater Strainer Set
-
11-1921503-0445 Stud BoltStud Bolt
-
11-2930403-0400 Nylon NutNylon Nut
-
123B7-60015-1 Water PlugWater Plug
-
133B7-60016-0 O-RingO-Ring
-
143C7-64302-2 Drive shaft l
-70B # 70376, -90B # 00970Drive shaft l
-70B # 70376, -90B # 00970 -
143C7-64303-2 Drive Shaft UL
-70B # 70376, -90B # 00970Drive Shaft UL
-70B # 70376, -90B # 00970 -
153C7-60213-0 Bearing 0506
-70B # 70376, -90B # 00970Bearing 0506
-70B # 70376, -90B # 00970 -
163C7-60214-0 Bearing 16007
-70B # 70376, -90B # 00970Bearing 16007
-70B # 70376, -90B # 00970 -
173C7-60210-0 Wave Washer D=47.2
-70B # 70376, -90B # 00970Wave Washer D=47.2
-70B # 70376, -90B # 00970 -
183C7-64327-0 Spring Drive Shaft
-70B # 70376, -90B # 00970Spring Drive Shaft
-70B # 70376, -90B # 00970 -
193C7-64328-0 Guide Drive Shaft Spring
-70B # 70376, -90B # 00970Guide Drive Shaft Spring
-70B # 70376, -90B # 00970 -
203B7-64020-0 New partNew part
-
213B7-64027-0 Nut, Bevel Gear BNut, Bevel Gear B
-
22353-64014-0 Shim, 52-60.5-0.3Shim, 52-60.5-0.3
-
22353-64015-0 Shim,52-60.5-0.15Shim,52-60.5-0.15
-
22353-64016-0 Shim,52-60.5-0.1Shim,52-60.5-0.1
-
233C7-65021-1 Impeller water pumpImpeller water pump
-
243B7-65022-0 Key, water pump impellerKey, water pump impeller
-
253C7-65016-0 Water Pump CaseWater Pump Case
-
263C7-65011-0 Liner Water Pump CaseLiner Water Pump Case
-
273C7-65018-0 Seal Water Pump CaseSeal Water Pump Case
-
283C7-65025-0 Guide Plate Water PumpGuide Plate Water Pump
-
293C7-65029-0 Gasket Pump Guide PlateGasket Pump Guide Plate
-
303C7-65017-2 Pump Case LowerPump Case Lower
-
31334-65012-0 СтопорСтопор
-
323C7-60223-1 Oil seal, 22-42-7Oil seal, 22-42-7
-
33346-64084-0 Shim, 35-41.9-0.5Shim, 35-41.9-0.5
-
343B7-65015-0 O-RingO-Ring
-
383C7-65014-0 Lower Seal Rubber Water PipeLower Seal Rubber Water Pipe
-
393C7-65110-0 Water Pipe L
for Transom L""Water Pipe L
for Transom L"" -
393C7-65120-0 Water Pipe UL
for Transom UL""Water Pipe UL
for Transom UL"" -
403C7-65206-0 Upper Seal Rubber Water PipeUpper Seal Rubber Water Pipe
-
41345-65205-0 Collar, 18-20-4.5Collar, 18-20-4.5
-
423C7-65204-0 Locking Rubber Water Pipe
Water Pipe Locking RubberLocking Rubber Water Pipe
Water Pipe Locking Rubber -
433B7-66011-1 Clutch CamClutch Cam
-
44951403-3516 New partNew part
-
453B7-66014-1 Cam Rod UL
for Transom UL""Cam Rod UL
for Transom UL"" -
453B7-66013-1 Cam Rod L
for Transom L""Cam Rod L
for Transom L"" -
46951403-3510 New partNew part
-
473B7-66031-1 Bushing, Cam Rod / O-Ring,1.9-6.8Bushing, Cam Rod / O-Ring,1.9-6.8
-
48345-66021-0 O-RingO-Ring
-
493B7-66023-0 O-RingO-Ring
-
50353-66024-0 StopperStopper
-
51910103-6612 BoltBolt
-
52353-66241-1 New partNew part
-
543C7-60017-0 Nipple 6-1/8
for Speedometer OPTNipple 6-1/8
for Speedometer OPT -
563C7-60018-0 Золотник
OPTЗолотник
OPT -
57353-84398-0 Band Lead Wire
OPTBand Lead Wire
OPT
