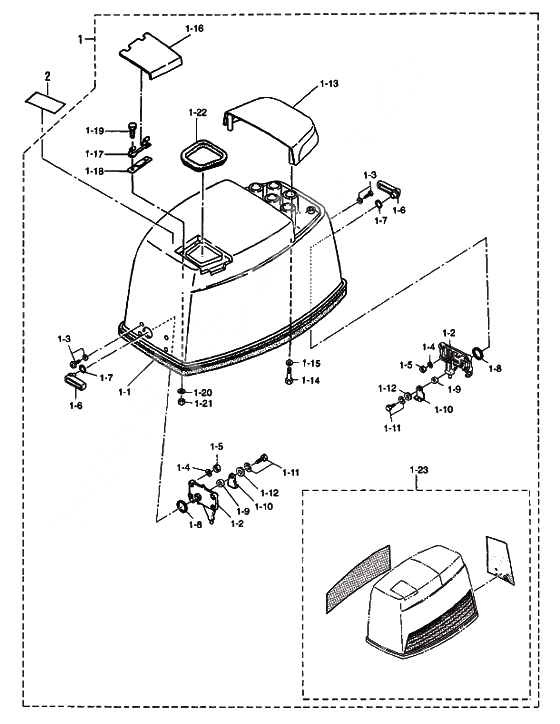

Top cowl (motor cover upper) для Tohatsu MD90B (AQ) - 2006 года выпуска`
-
№АртикулНазвание
-
13T9Q67510-2 Motor cover upper md70/90 (aqua marine blue)
TOHATSU MOTOR COVER (UPPER)Motor cover upper md70/90 (aqua marine blue)
TOHATSU MOTOR COVER (UPPER) -
13U9N67510-2 Motor cover upper nsd70/90 (aqua marine blue)
NISSAN MOTOR COVER (UPPER)Motor cover upper nsd70/90 (aqua marine blue)
NISSAN MOTOR COVER (UPPER) -
1-13C7-67501-0 Seal rubber upper motor coverSeal rubber upper motor cover
-
1-10353-67142-1 Cover HookCover Hook
-
1-11910103-6616 BoltBolt
-
1-123R0-66308-0 WasherWasher
-
1-133F3Q67521-1 Tilt handle (aqua marine blue)Tilt handle (aqua marine blue)
-
1-14910113-0630 BoltBolt
-
1-153R0-66308-0 WasherWasher
-
1-163E3Q67210-0 Filler lid (aqua marine blue)Filler lid (aqua marine blue)
-
3E3Q67210-1 Filler lid (aqua marine blue)Filler lid (aqua marine blue)
-
1-173B7-67211-0 Hinge, Filler LidHinge, Filler Lid
-
1-183C8-67212-0 Spring filler lidSpring filler lid
-
1-19910103-0614 BoltBolt
-
1-2353-67517-1 Locating bracketLocating bracket
-
1-20941303-0600 New partNew part
-
1-21930113-0600 NutNut
-
1-223T9-67213-0 Seal rubber,filler lidSeal rubber,filler lid
-
1-233Y9Q87802-0 Decal set md90b (aqua marine blue)
TOHATSUDecal set md90b (aqua marine blue)
TOHATSU -
1-233Y8N87802-0 Decal set nsd90 (aqua marine blue)
NISSANDecal set nsd90 (aqua marine blue)
NISSAN -
1-3921703-5520 Stud BoltStud Bolt
-
1-4941303-0500 Spring WasherSpring Washer
-
1-5930111-0500 NutNut
-
1-6353Q67141-0 Hook lever (aqua marine blue)Hook lever (aqua marine blue)
-
1-7338-62435-0 O-RingO-Ring
-
1-8353-67147-1 Seal ringSeal ring
-
1-9353-67105-0 BushingBushing
-
23C7-72180-0 Caution label (ce-a)Caution label (ce-a)
