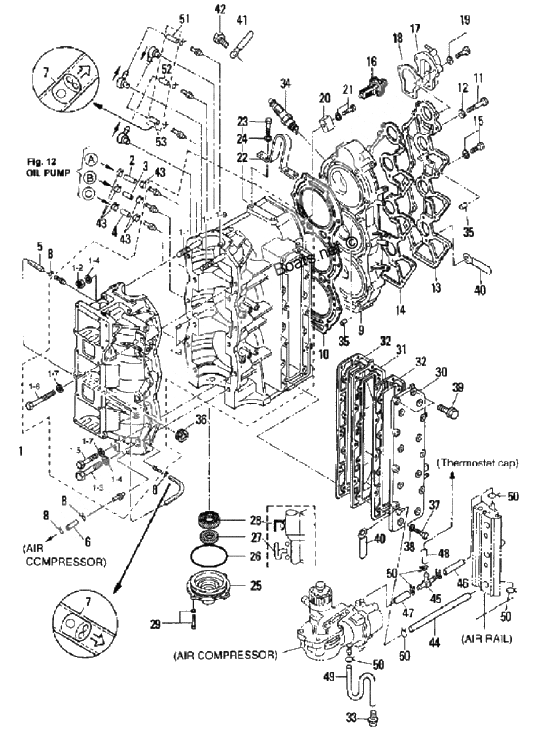

Cylinder - crank case для Tohatsu MD70B - 2006 года выпуска`
-
№АртикулНазвание
-
13Y9B01100-1 Clynder crankcase ass'y
70B # 70242-, 90B # 00766-Clynder crankcase ass'y
70B # 70242-, 90B # 00766- -
13T7B01100-0 Cylinder crankcase
70A2 # 70052-# 70241, 90A2 # 00516-# 00765-Cylinder crankcase
70A2 # 70052-# 70241, 90A2 # 00516-# 00765- -
1915324-1065 Stud BoltStud Bolt
-
2931121-1000 NutNut
-
3916129-1065 BoltBolt
-
43B7-01116-0 WasherWasher
-
5916124-0850 BoltBolt
-
6916124-0865 BoltBolt
-
7345-01015-0 WasherWasher
-
7393-01160-0 Check ValveCheck Valve
-
8338-01133-0 ClipClip
-
8345-01111-0 Dowel Pin 6-12Dowel Pin 6-12
-
93T9B01001-1 Головка цилиндровГоловка цилиндров
-
93T9-00117-0 Knock, Main BearingKnock, Main Bearing
-
103T9-01005-0 Gasket,Cylinder HeadGasket,Cylinder Head
-
11916129-0875 BoltBolt
-
133T9B01021-0 Cover,Cylinder HeadCover,Cylinder Head
-
143T9-01024-0 Gasket,Cylinder Head CoverGasket,Cylinder Head Cover
-
15910121-7625 BoltBolt
-
163C7-01030-0 New part
70B # 70242-, 90B # 00766-New part
70B # 70242-, 90B # 00766- -
163T9-01030-0 Thermostat
-70A2 # 70241, -90A2 # 00765Thermostat
-70A2 # 70241, -90A2 # 00765 -
173T9B01060-0 Cup, Thermostat
70A2 # 70052-, 90A2 # 00516-Cup, Thermostat
70A2 # 70052-, 90A2 # 00516- -
183T9-01032-0 Gasket,thermostat capGasket,thermostat cap
-
203B7-60218-1 AnodeAnode
-
21910103-5630 BoltBolt
-
223B7B01513-0 HangerHanger
-
23910114-0820 BoltBolt
-
24941322-0800 Spring WasherSpring Washer
-
253B7-01291-1 Head lower, crank caseHead lower, crank case
-
26171-00053-0 O-RingO-Ring
-
273C7-01215-0 Oil Seal, 19.6-35-10Oil Seal, 19.6-35-10
-
283T9-00121-0 Oil Seal,35-58-9Oil Seal,35-58-9
-
303T9B02300-0 Exhaust cover,outerExhaust cover,outer
-
313B7B02302-0 Exhaust Cover InnerExhaust Cover Inner
-
323B7-02305-1 Gasket exhaust coverGasket exhaust cover
-
3B7-02305-2 Gasket exhaust coverGasket exhaust cover
-
33353-01138-0 Water NippleWater Nipple
-
349701-1-1109 Spark plug izfr5j
# 033166XD-Spark plug izfr5j
# 033166XD- -
35334-65012-0 СтопорСтопор
-
363B7-76093-0 Grommet, 25-5Grommet, 25-5
-
38940121-0800 WasherWasher
-
403T5-06971-0 Плата струбциныПлата струбцины
-
41309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
42910103-6612 BoltBolt
-
433B7-09052-0 Clip 6.8Clip 6.8
-
369-70098-2 Clip 6.8Clip 6.8
-
453T7-01175-0 T-Nipple
70A2 # 70052-, 90A2 # 00516-T-Nipple
70A2 # 70052-, 90A2 # 00516- -
50338-02215-0 Clip
тИЕ10Clip
тИЕ10
