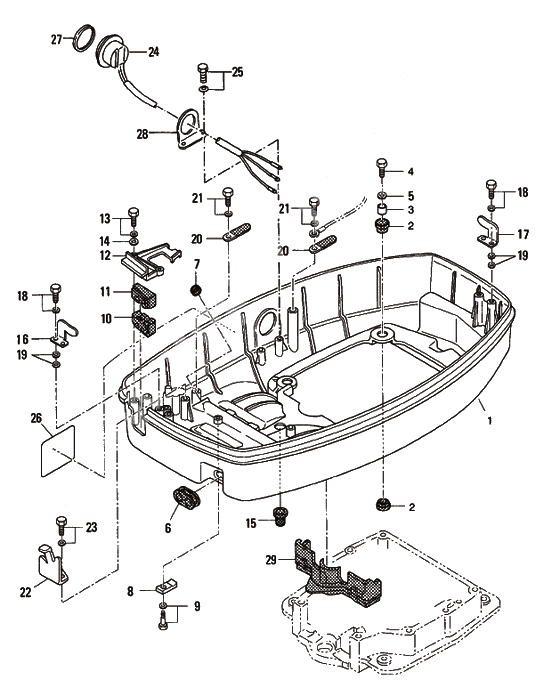

Bottom cowl (motor cover lower) для Tohatsu MD70B (AQ) - 2006 года выпуска`
-
№АртикулНазвание
-
13C7Q67100-1 Lower motor cover (amb)
MOTOR COVER (LOWER)Lower motor cover (amb)
MOTOR COVER (LOWER) -
2345-67113-0 Mount RubberMount Rubber
-
33C7-67114-0 Spacer 8.4-12-17Spacer 8.4-12-17
-
4910113-0835 BoltBolt
-
53B7-63730-0 WasherWasher
-
63C7-67160-0 Grommet oil pipeGrommet oil pipe
-
73C7-77156-0 GrommetGrommet
-
83C7-72577-0 ClampClamp
-
9910113-5616 BoltBolt
-
103C7-76116-0 Grommet CordGrommet Cord
-
113C7-83732-0 Grommet Remote Control CableGrommet Remote Control Cable
-
123T9Q76118-0 Clamp cord (ABM)Clamp cord (ABM)
-
13910103-6625 BoltBolt
-
14940113-0600 WasherWasher
-
15345-66226-0 Grommet, 17-3Grommet, 17-3
-
16353-67512-0 Cover stay(front)Cover stay(front)
-
17353-67513-0 Cover stay(rear)Cover stay(rear)
-
18910103-6618 BoltBolt
-
19940113-0600 WasherWasher
-
20398-06972-0 Clamp,6.5-67PClamp,6.5-67P
-
21910103-6612 BoltBolt
-
223T9-83720-0 Cable,clipCable,clip
-
23910103-6616 BoltBolt
-
243E0-72615-0 Switch b ass'y p-t/tSwitch b ass'y p-t/t
-
25910103-6614 BoltBolt
-
263C7-72030-0 Label, InterfernceLabel, Interfernce
-
273F3-72616-1 Gasket Ptt Switch Ass'yGasket Ptt Switch Ass'y
-
283F3-72617-1 Bracket,PTT Switch Ass'yBracket,PTT Switch Ass'y
-
293C7-67164-0 Grommet A Lower CoverGrommet A Lower Cover
