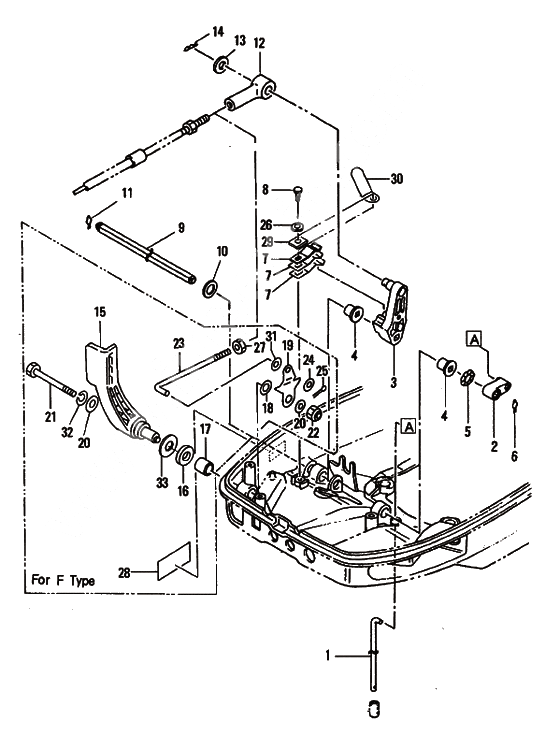

Shift для Tohatsu MD50B (AQ) - 2006 года выпуска`
-
№АртикулНазвание
-
13C8-66211-0 Shift RodShift Rod
-
23C8-66225-0 Lever Shift RodLever Shift Rod
-
33C8-66122-1 Shift ArmShift Arm
-
4350-67101-0 Bushing Shift LeverBushing Shift Lever
-
5941403-1200 WasherWasher
-
6951703-0800 Snap RetainerSnap Retainer
-
73C8-66112-0 Stopper shift lever
FOR P TYPEStopper shift lever
FOR P TYPE -
8910114-0614 BoltBolt
-
93C8-66135-0 Shift Shaft
FOR P TYPEShift Shaft
FOR P TYPE -
103AA-83719-0 Washer
FOR P TYPEWasher
FOR P TYPE -
11951703-0800 Snap Retainer
FOR P TYPESnap Retainer
FOR P TYPE -
123B7-83715-1 Cable Joint
FOR P TYPECable Joint
FOR P TYPE -
3B7-83715-2 Cable JointCable Joint
-
133AA-83719-0 Washer
FOR P TYPEWasher
FOR P TYPE -
14951603-0800 R-Pin
FOR P TYPER-Pin
FOR P TYPE -
153T5-66110-0 Shift Lever
FOR F TYPEShift Lever
FOR F TYPE -
163T5-67147-0 Seal Ring,13.8-22-5
FOR F TYPESeal Ring,13.8-22-5
FOR F TYPE -
17350-67105-0 New part
FOR F TYPENew part
FOR F TYPE -
18941403-1400 New part
FOR F TYPENew part
FOR F TYPE -
193T5-66129-0 Shift Lever B
FOR F TYPEShift Lever B
FOR F TYPE -
203R0-66308-0 Washer
FOR F TYPEWasher
FOR F TYPE -
21910103-0670 Bolt
FOR F TYPEBolt
FOR F TYPE -
22930403-0600 Nylon Nut
FOR F TYPENylon Nut
FOR F TYPE -
233T5-66134-0 Rod, Shift Lever
FOR F TYPERod, Shift Lever
FOR F TYPE -
24940103-0500 Washer
FOR F TYPEWasher
FOR F TYPE -
25951503-0212 Split Pin
FOR F TYPESplit Pin
FOR F TYPE -
26940103-0600 Washer
FOR F TYPEWasher
FOR F TYPE -
273B2-83865-0 Nut(No,10-32VNF)
FOR F TYPENut(No,10-32VNF)
FOR F TYPE -
283T5-67578-0 Lavel, Shift
FOR F TYPELavel, Shift
FOR F TYPE -
293C8-66116-0 Plate Shift Lever
FOR P TYPEPlate Shift Lever
FOR P TYPE -
30309-06972-0 Clamp,6.5-47.5PClamp,6.5-47.5P
-
31940113-0600 WasherWasher
-
32941303-0600 New partNew part
-
333C8-67146-0 WasherWasher
