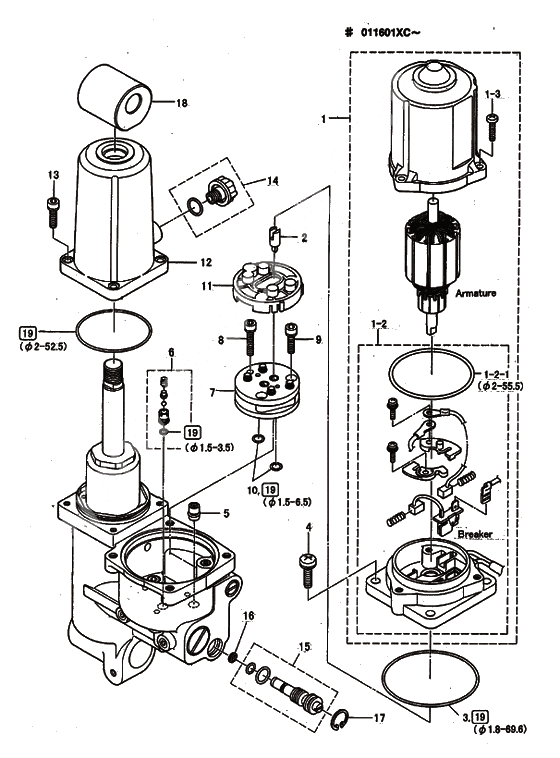

Power trim & tilt (new) для Tohatsu MD50B (AQ) - 2006 года выпуска`
-
№АртикулНазвание
-
13Z5-77180-0 Motor Ass'y
L=1050Motor Ass'y
L=1050 -
1-23Z5-77192-0 Motor Brackrt Ass'yMotor Brackrt Ass'y
-
1-2-13Z5-77182-0 O-RingO-Ring
-
1-3921503-0520 Stud BoltStud Bolt
-
23Z5-77166-0 CouplingCoupling
-
33B7-77167-0 O????O????
-
43Z5-77194-0 Stud BoltStud Bolt
-
53Z5-77460-0 Valve Ass'yValve Ass'y
-
63Z5-77450-0 Relief Balve Ass'yRelief Balve Ass'y
-
73B7-77430-0 PumpPump
-
83B7-77431-1 BoltBolt
-
93B7-77432-1 BoltBolt
-
103B7-77433-0 O-RingO-Ring
-
113B7-77434-1 Filter BFilter B
-
123Z5-77165-0 Reservoir TankReservoir Tank
-
133Z5-77159-0 BoltBolt
-
143Z5-77221-0 Cap Ass'yCap Ass'y
-
153Z5-77175-0 Manual Balve Ass'yManual Balve Ass'y
-
163R0-77173-0 Seal WasherSeal Washer
-
173Z5-77171-0 C-RingC-Ring
-
183Z5-77367-0 Joint MetalJoint Metal
-
193Z5-77225-0 O-Ring SetO-Ring Set
